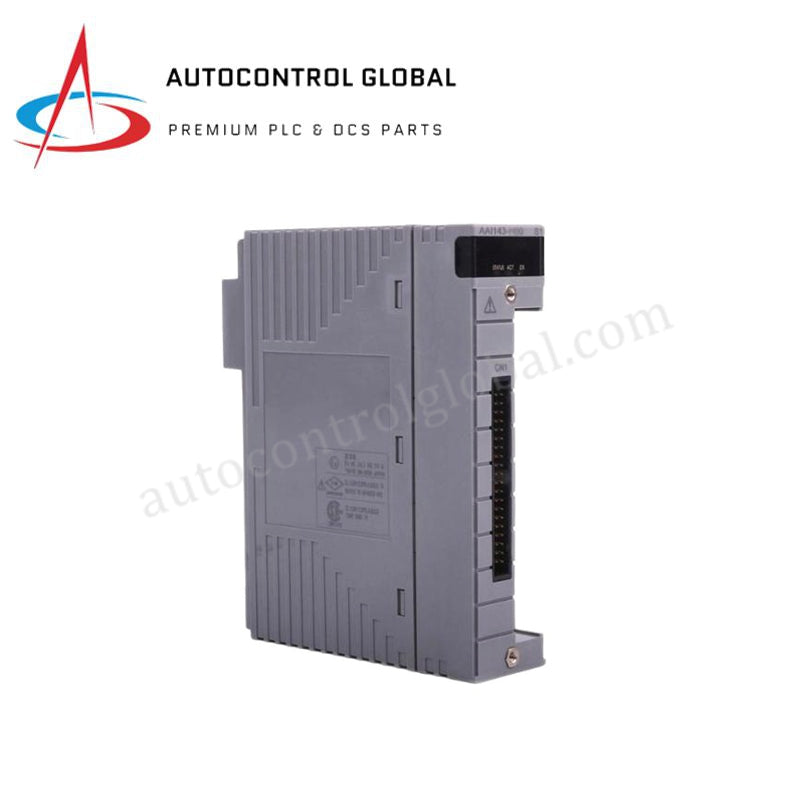

AAI543-H50/A4D00 Yokogawa CENTUM VP Module

Yokogawa AAI543-H50/A4D00 Analog Output Module

Configured for 4-20 mA current loop driving in Yokogawa CENTUM VP / FIO architectures, the Yokogawa AAI543-H50/A4D00 (AAI543 Analog Output Module) provides direct physical/electrical execution across 16 isolated channels. The hardware converts digital system commands into 4-20 mA DC signals to manipulate final control elements such as control valves and actuators. Each output channel operates with a 10 ms data update period while maintaining complete channel-to-system electrical isolation.

Suffix Breakdown & Model Matrix

The model codification for the AAI543 module assembly outlines distinct hardware options and terminal interface selections:

• AAI543: Base 16-channel isolated 4-20 mA DC analog output module hardware platform.
• -H: Embedded HART digital communication protocol pass-through across all output channels.
• 5: Standard switch-over response in redundant configurations with non-explosion-proof rating.
• 0: Basic type hardware architecture.
• /A4D00: Dual pressure-clamp terminal block interface (Model ATA4D-00) for direct field wiring.

Hardware Specifications

Process Control & DCS Instrument Integration

The AAI543-H50/A4D00 module delivers high-density field execution for critical final control loops in Yokogawa DCS environments. Featuring 1500 VAC channel-to-system isolation, the unit protects central processing backplanes against high-voltage surges and common-mode electrical noise originating on field loop wiring. Integrated HART functionality enables bidirectional field device management, permitting digital diagnostics and parameterization signals to superimpose directly onto standard 4-20 mA current loops. Built-in line diagnostics continuously monitor loop integrity, asserting a circuit-open detection state when output current drops below 0.65 mA. In addition, dual-redundant pairing allows secondary modules to take over loop driving seamlessly without bumping field actuators.

Frequently Asked Questions

Q: How does the AAI543-H50/A4D00 detect open-circuit conditions on connected control loops?

A: The onboard diagnostic circuitry continuously checks loop continuity and flags a circuit-open alarm when output current falls below 0.65 mA, allowing immediate detection of broken field wiring.

Q: What maximum load resistance can each channel drive at full 20 mA output?

A: Each channel accommodates a total field loop resistance ranging from 0 to 750 ohm, ensuring compatible operation across long wiring runs and positioner input impedances.

Q: Is hot-swapping supported when operating in a dual-redundant configuration?

A: Yes, when deployed as a redundant module pair, maintenance personnel can extract and replace a faulted module without interrupting current loop outputs or causing control bumps on active process valves.

Field Installation Guidelines

• Switch off rack supply power or confirm active site hot-swap authorization before seating the module into the FIO baseplate slot.
• Align the module card along the baseplate slot guides and press firmly until the locking levers engage the rear backplane connectors completely.
• Strip field wiring cleanly to proper engagement lengths before inserting leads into the ATA4D-00 dual pressure-clamp terminals to prevent exposed conductor shorts.
• Route output signal lines in dedicated raceways separated from AC distribution cables and variable frequency drives to prevent electromagnetic interference.
• Terminate cable shield drains at a single point on the DCS grounding bus to maintain effective noise suppression across all 16 channels.
