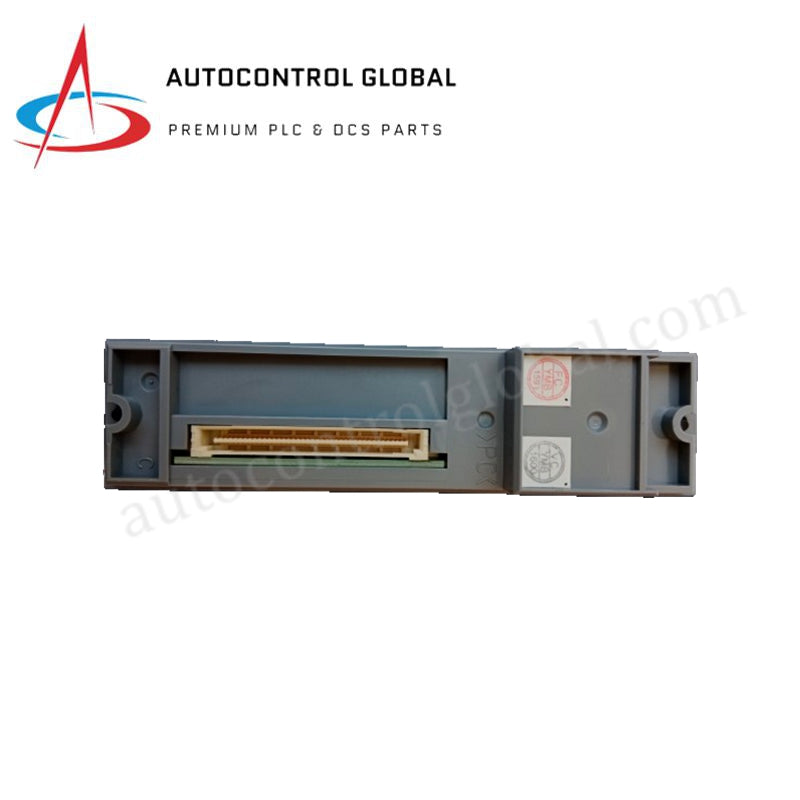

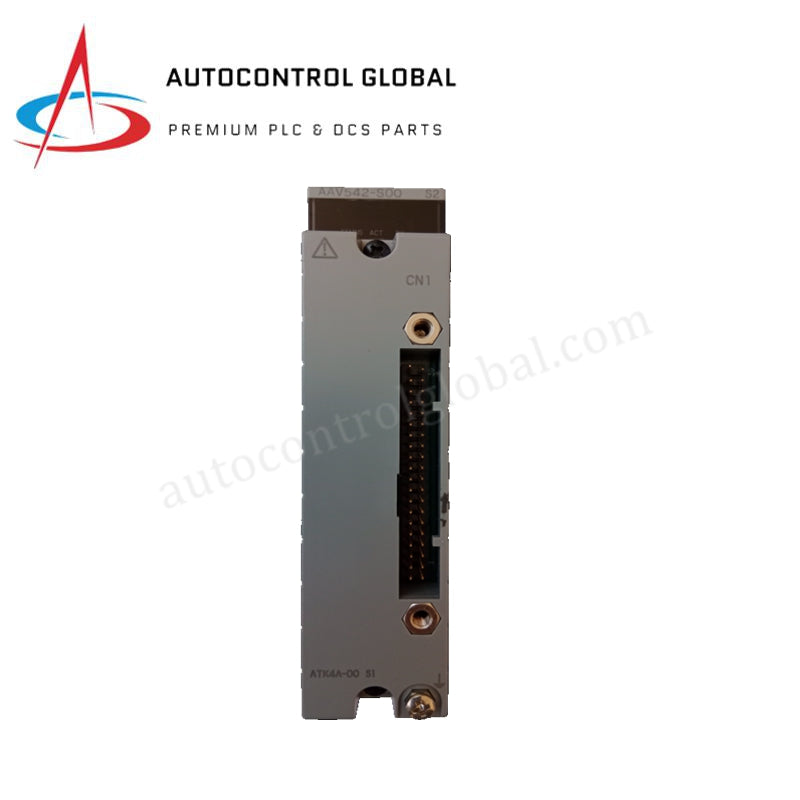

AAV542-S00 S2 Yokogawa | FIO 1-5V 4-20mA Output Card
AAV542-S00 S2 Yokogawa | FIO 1-5V 4-20mA Output Card
AAV542-S00 S2 Yokogawa | FIO 1-5V 4-20mA Output Card
/ 3

AAV542-S00 S2 Yokogawa | FIO 1-5V 4-20mA Output Card

  • Manufacturer: Yokogawa

  • Part Number: AAV542

  • Condition：New with Original Package

  • Product Type: Analog Output Module

  • Country of Origin: Japan

  • Payment:T/T, Western Union

  • Shipping port: Xiamen

  • Warranty: 12 months

Product Overview

The AAV542-S00 Style S2 (Model: AAV542) is a precision analog output module designed for Yokogawa’s CENTUM VP and CENTUM CS 3000 Distributed Control Systems (DCS). Operating within the FIO (Field Interface I/O) architecture, it serves as the command interface for field-side final control elements. The AAV542-S00 (Part Number: AAV542-S00) converts digital control signals from the Field Control Station (FCS) into highly accurate 1-5 V DC voltage or 4-20 mA current signals to drive actuators, control valves, and variable frequency drives (VFDs).

This specific bundle includes the ATA4S-00 Style S2 (Model: ATA4S-00) terminal board, facilitating secure field wiring and high-integrity signal termination. Engineered for mission-critical process automation, the AAV542-S00 (Model: AAV542) features advanced internal diagnostics and 16 channels of isolated output, ensuring that localized electrical faults do not compromise the integrity of the entire control loop.

Detailed Technical Specifications

The AAV542-S00 is optimized for high-speed, deterministic response in complex PID control loops.

  • Manufacturer: Yokogawa

  • Model Number: AAV542-S00

  • Hardware Style: S2 (Improved component reliability and thermal performance)

  • Product Type: Analog Output Module (Voltage/Current)

  • Accompanying Terminal Board: ATA4S-00 Style S2

  • System Compatibility: CENTUM VP, CENTUM CS 3000, ProSafe-RS (FIO architecture)

  • Number of Channels: 16 channels, isolated between system and field

  • Output Signal Range: 1 to 5 V DC or 4 to 20 mA DC (Software configurable)

  • Allowable Load Resistance: 250 Ω to 750 Ω (for 4-20 mA mode)

  • Accuracy: ±0.1% of full scale

  • Data Update Cycle: 40 ms

  • Isolation: 500 V AC between field channels and system logic

  • Communication Support: Integrated support for HART communication pass-through

  • Power Consumption: 5 V DC at 450 mA; 24 V DC at 400 mA

  • Operating Temperature: -10 °C to +55 °C

  • Dimensions: 130 × 32.8 × 125.5 mm (Module only)

  • Origin: Japan / France
