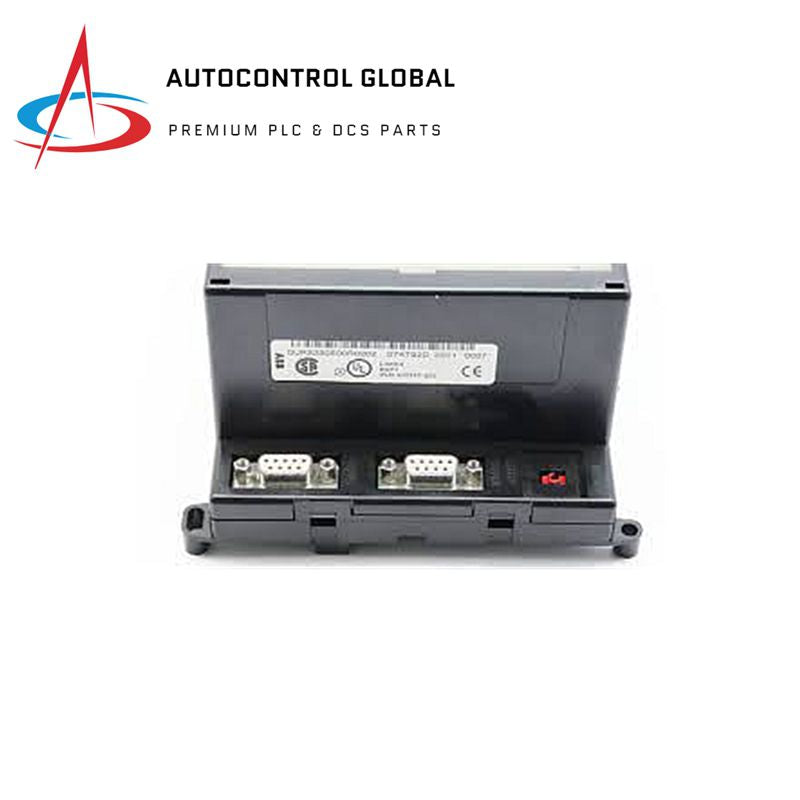

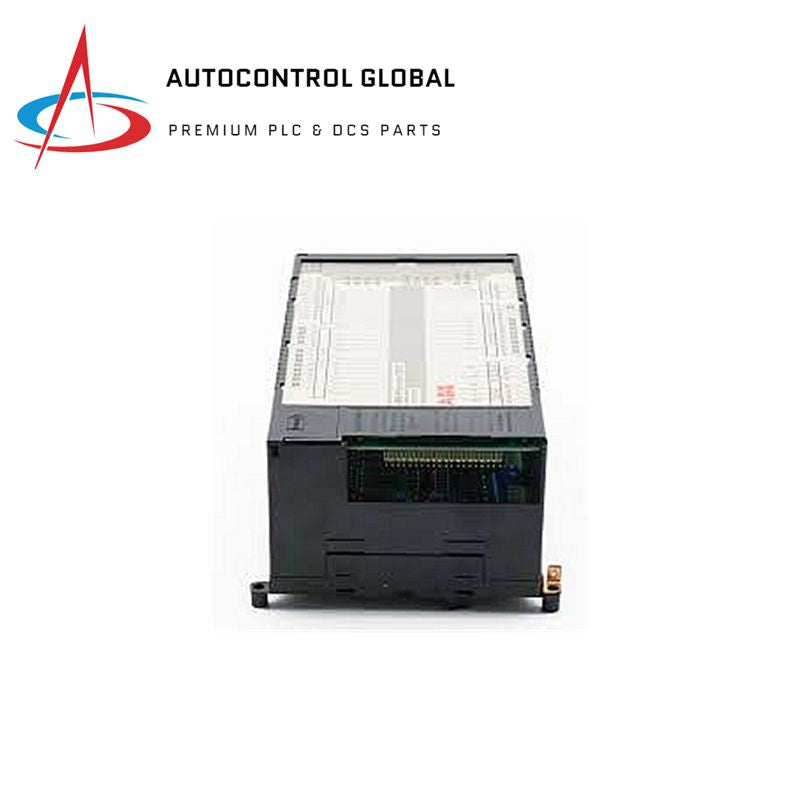

ABB 07KT92D GJR5250500R0262 Central Processing Unit

Description

The ABB 07KT92D GJR5250500R0262 is a central processing unit designed for the 90 Series. It is a high-performance device used for controlling industrial processes, offering a wide range of features including analog and digital I/O, communication capabilities, and advanced control algorithms.

Features

• 24 VDC power supply
• 14 K FLASH EPROM
• Twelve 24 VDC inputs
• Eight 24 VDC/0.5A transistor outputs
• Four analog inputs with 12-bit resolution
• Two analog outputs with 12-bit resolution
• Two programmable RS 232 ports
• RS 485 system bus

Technical Specifications

• Power Supply: 24 VDC input
• Digital Inputs: Twelve 24 VDC inputs
• Digital Outputs: Eight 24 VDC/0.5A transistor outputs
• Analog Inputs: Four analog inputs with 12-bit resolution
• Analog Outputs: Two analog outputs with 12-bit resolution
• Serial Interfaces: Two programmable RS 232 ports
• Networking Interface: RS 485 system bus
• Memory: 14 K FLASH EPROM
• Dimensions: 10.0" x 4.0" x 6.0" (25.4 cm x 10.2 cm x 15.2 cm
• Weight: 1 lbs 10.1 oz (0.7 kg)
