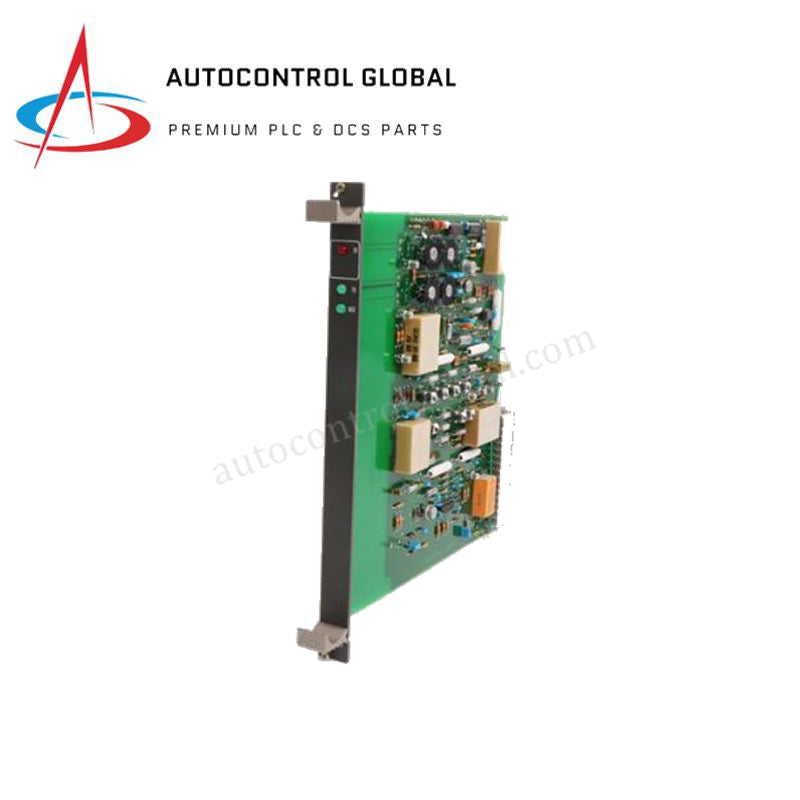

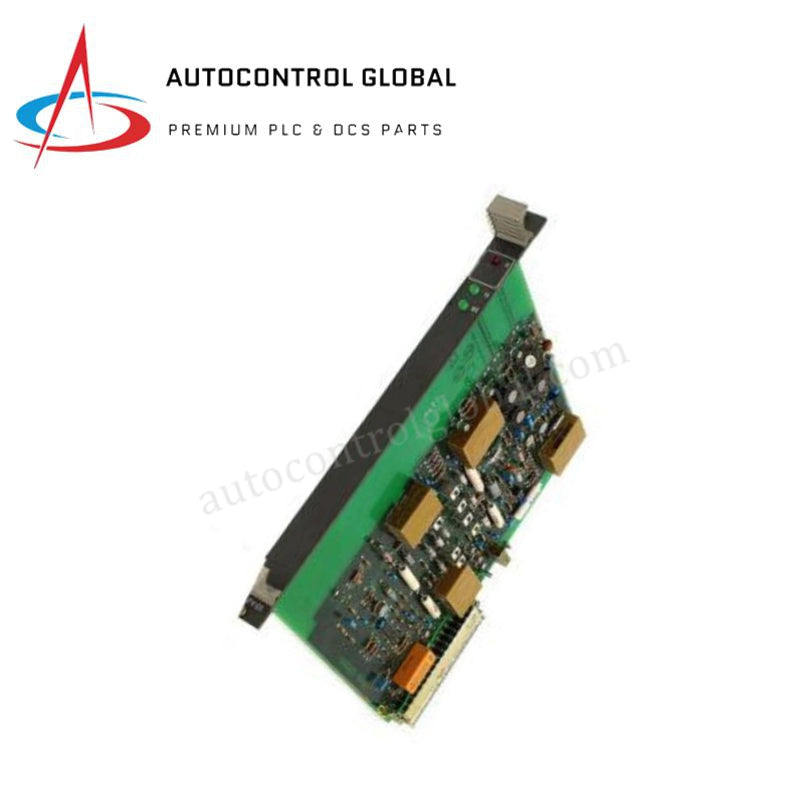

ABB 216GE61/N222 HEDG112801R1 Drive Control Board

Product Overview

The ABB 216GE61/N222 (Part Number: HEDG112801R1) functions as the primary intelligence and signal isolation hub for ABB ACS and ACX series medium- and high-voltage drives. This hybrid module integrates a high-performance Digital Signal Processor (DSP) with a specialized auxiliary relay assembly. It manages critical motor control algorithms while providing a physical safety barrier for digital inputs. We supply this unit as 100% Brand New and Original, ensuring your heavy-duty drive systems maintain peak torque accuracy and electrical separation.

Technical Specifications

The 216GE61/N222 utilizes high-speed processing and robust electromechanical components to manage power conversion:

Engineering Advantages

The 216GE61/N222 streamlines complex drive operations by solving common integration and maintenance issues:

• Advanced DTC Execution: The onboard DSP processes Direct Torque Control (DTC) algorithms locally. This allows the drive to respond to load changes in microseconds, maintaining motor stability and reducing mechanical stress on the drivetrain without requiring encoder feedback in many applications.

• Integrated Potential Separation: The 16 integrated auxiliary relays (K1–K16) provide essential galvanic isolation for digital inputs. This hardware barrier prevents field-side electrical transients from reaching the drive’s logic circuits, effectively stopping "ghost" trips and protecting the control processor from overvoltage.

• Simplified Signal Logic: By combining control and relay functions on a single board, the module reduces the need for external interposing relays. This consolidation saves cabinet space and simplifies the wiring harness for complex blocking and tripping logic.

• Proactive Maintenance Data: The board records comprehensive fault codes and operational status indicators. Maintenance teams use this diagnostic data to track performance trends and identify failing field sensors before they cause a total system shutdown.

FAQs

Q: Which drive series can utilize the 216GE61/N222 module?

A: This module specifically supports ABB ACS and ACX series medium-voltage and high-voltage drives. It fits into the dedicated control slots of the drive's main processing unit.

Q: Do the 16 auxiliary relays require manual configuration?

A: You define the function of relays K1 through K16 (such as logic, blocking, or tripping) within the drive's parameter settings. The physical relays provide the mechanical separation, while the software determines their operational behavior.

Q: How does the module handle communication with a plant-wide SCADA system?

A: The board natively supports high-speed data exchange and integrates with industrial protocols like Profibus and Ethernet/IP. This allows the drive to report real-time torque, speed, and diagnostic data to your central control room.

Q: Is this a tool-free installation?

A: Yes. The 216GE61/N222 features a standardized mounting interface designed for the drive's internal rack. You can securely seat and lock the module into its dedicated slot without specialized tools, ensuring a reliable mechanical and electrical connection.
