ABB 3BSE011180R1 PM511V08 AC800M PLC Processors
Manufacturer: ABB
-
Part Number: PM511V08 3BSE011180R01
Condition：New with Original Package
Product Type: PLC Processors
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months

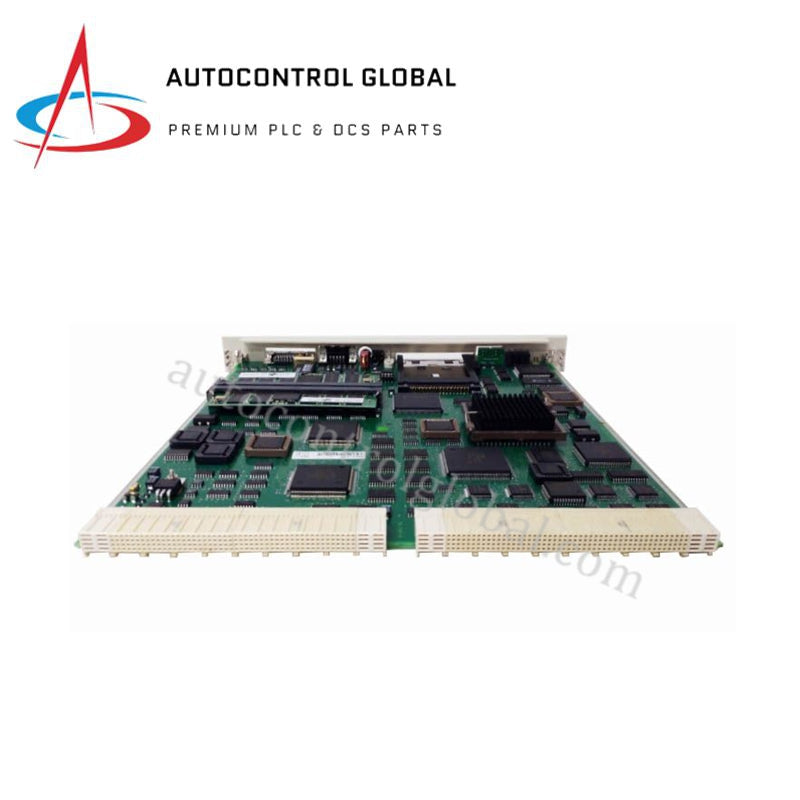

ABB PM511V08 3BSE011180R1 Processor Module
The ABB 3BSE011180R1, also cataloged as the PM511V08 Processor Module, operates as a dedicated hardware component for executing control logic and managing I/O data routing within ABB AC800M and Advant Controller 450 architectures. The module establishes direct synchronous execution of closed-loop logic and interlock functions across the high-speed parallel backplane bus framework. Utilizing a 32-bit RISC Motorola PowerPC 604e CPU running at 400 MHz, the hardware processes input variables and updates communication registers locally to enforce deterministic execution cycles.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | PM511V08 (Part Number: 3BSE011180R1 / 3BSE011180R01) |
| Brand | ABB |
| Origin | United States |
| Weight | 0.76 kg |
| Dimensions | 274.5 mm x 27 mm x 270 mm |
| Operating Temp | 0 to +60 deg C |
| Power Consumption | 15 W typical via backplane connection |
| Operating Voltage | 24 VDC +/-10% |
| Core Processor | Motorola PowerPC 604e, 400 MHz, 32-bit RISC |
| Memory Subsystem | 8 MB ECC DRAM, 8 MB Flash memory |
| Storage Expansion | Onboard PCMCIA card slot |
| Communication Ports | 2 x Ethernet (10/100 Mbps), 1 x RS-232, 1 x RS-485 |
| Electrical Isolation | 1500 VAC between backplane bus and communication ports |
| Standards Conformity | CE, UL, ATEX, DNV, RoHS, IEC 61131-2 |
Backplane Bus Communication and Firmware Compatibility
The internal processor architecture coordinates real-time data exchange profiles across the high-speed parallel bus lanes to govern attached communication cards and I/O modules. The 8 MB ECC DRAM space enforces immediate hardware error correction to maintain structural logic stability during execution phases. Operational routines require matching firmware configurations, ensuring exact flash compatibility across the physical platform layer to execute program scan cycles between 10 ms and 50 ms without generating internal system exceptions.
Frequently Asked Questions
Q: Does the processor card architecture allow for hot-swap operations during live system execution?
A: No. The parallel backplane bus interface lacks structural transient buffering and sequential pin separation rails. Removing or inserting the module while the 24 VDC backplane potential is active causes immediate signal disruption across the master rack, resulting in unexpected system trips and possible hardware faults.
Q: How is the PCMCIA card slot utilized by the internal execution loop?
A: The physical PCMCIA interface connects directly to the address and data lines of the processor module. It functions as a non-volatile hardware extension dedicated to storing local user application code, sequence of event logs, and fault recording files for analytical diagnosis after safety shutdowns.
Field Installation Guidelines
Mount the processor module vertically inside the designated master slot of the controller chassis, ensuring full insertion to lock the parallel backplane bus connectors into place. Secure the mechanical retaining screws to eliminate micro-motion hazards induced by industrial vibration.
Route the copper Ethernet and serial connection lines through separate cable conduits away from high-power AC supply lines and variable frequency drive wiring to eliminate inductive coupling risks. Connect the module ground path to the central copper master ground bar using a low-impedance connection. Ensure that all external communication links remain within the 1500 VAC hardware isolation limits by deploying external surge arrestors where lines exit the primary enclosure.
