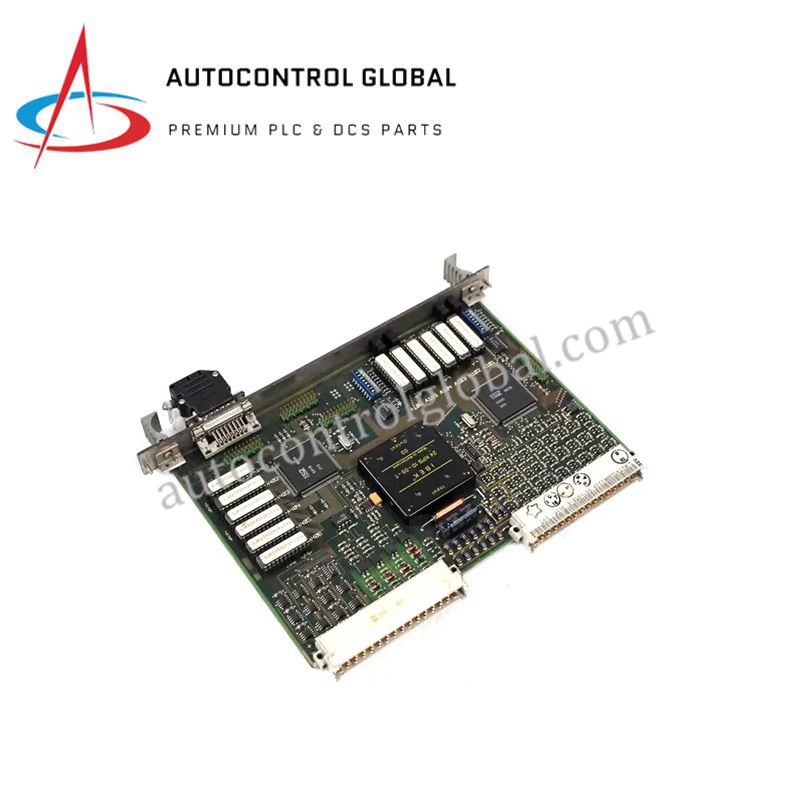

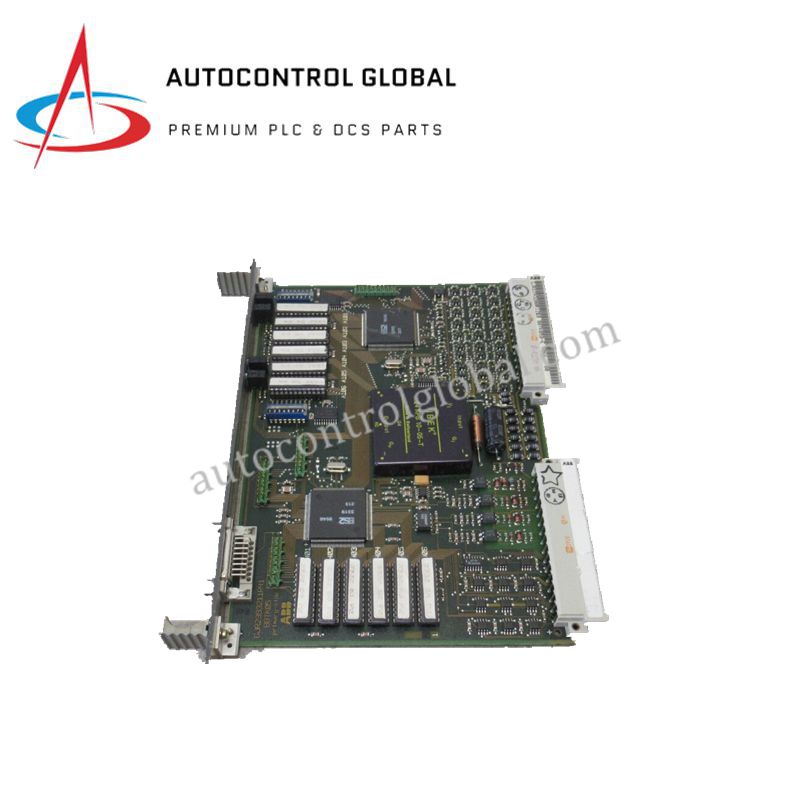

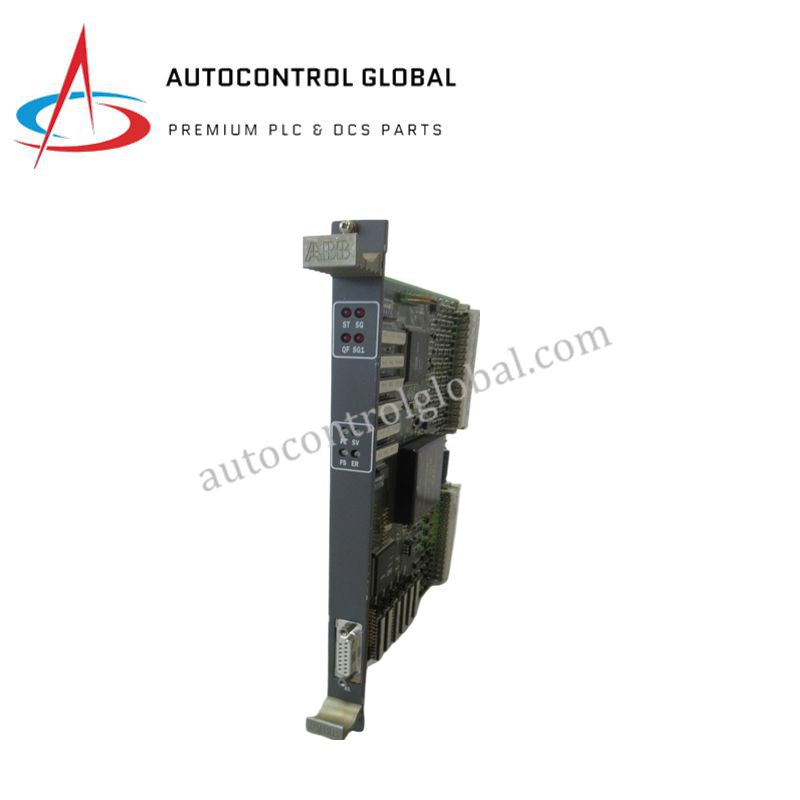

ABB 88TK05B-E GJR2393200R1210 Precision Thermocouple Input Board
Manufacturer: ABB
-
Part Number: 88TK05B-E GJR2393200R1210
Condition：New with Original Package
Product Type: Precision Thermocouple Input Board
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
ABB 88TK05B-E – Thermocouple Input Module
The ABB 88TK05B-E, part number GJR2393200R1210, is a high-accuracy thermocouple input module developed for the ABB Procontrol P13 system. It is designed to capture temperature signals from up to eight thermocouples and convert them into precise digital data for real-time control and monitoring in demanding industrial environments.
Engineered with cold junction compensation, linearization, and advanced noise suppression, the 88TK05B-E ensures stable and accurate measurement across a wide temperature range. With compact dimensions of 100 × 100 × 35 mm and a lightweight 0.2 kg design, it integrates efficiently into ABB rack-mounted control systems.
Its robust construction and wide operating temperature tolerance make the 88TK05B-E suitable for continuous use in power generation, chemical processing, and other industries where precise thermal control is critical.
Technical Specifications
| Feature | Description |
|---|---|
| Model | 88TK05B-E |
| Part Number | GJR2393200R1210 |
| System Compatibility | ABB Procontrol P13 |
| Function | Thermocouple signal acquisition and conversion |
| Input Channels | 8 thermocouple inputs |
| Supported Types | J, K, T, E, N, R, S, B (depending on configuration) |
| Input Range | –200°C to +1800°C (varies by type) |
| Accuracy | High resolution with low drift and filtering |
| Signal Conditioning | Cold junction compensation, linearization, noise suppression |
| Communication | Integrated with Procontrol P13 system bus |
| Mounting | Rack-mounted within ABB control cabinets |
| Power Consumption | Max. 3.0 W (via backplane supply) |
| Operating Temperature | –20°C to +60°C |
| Storage Temperature | –40°C to +85°C |
| Humidity Range | 5% to 95% RH, non-condensing |
| Dimensions (W × H × D) | 100 mm × 100 mm × 35 mm |
| Weight | 0.2 kg |
| Certifications | CE, UL, EMC industrial compliance |
