ABB AI890 | Industrial Analog Input Module for Hazardous Areas
Manufacturer: ABB
-
Part Number: AI890
Condition：New with Original Package
Product Type: Industrial Analog Input Module for Hazardous Areas
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months

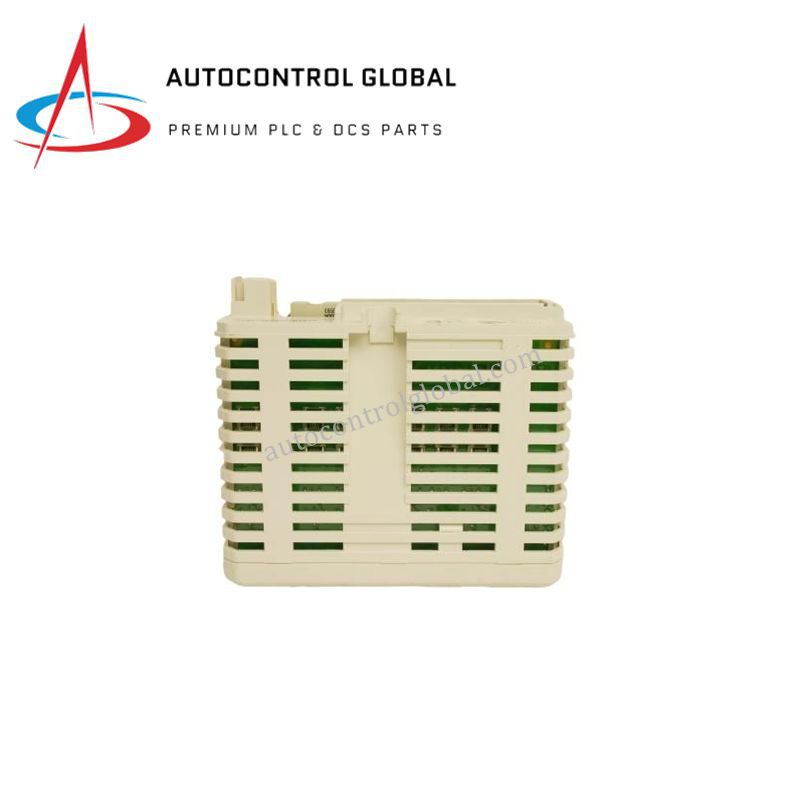

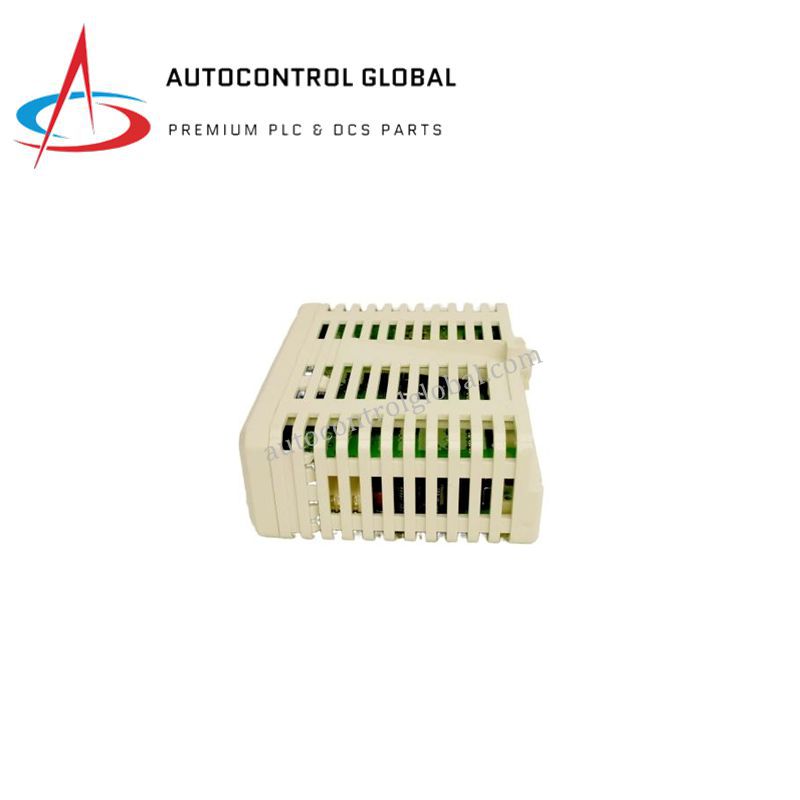

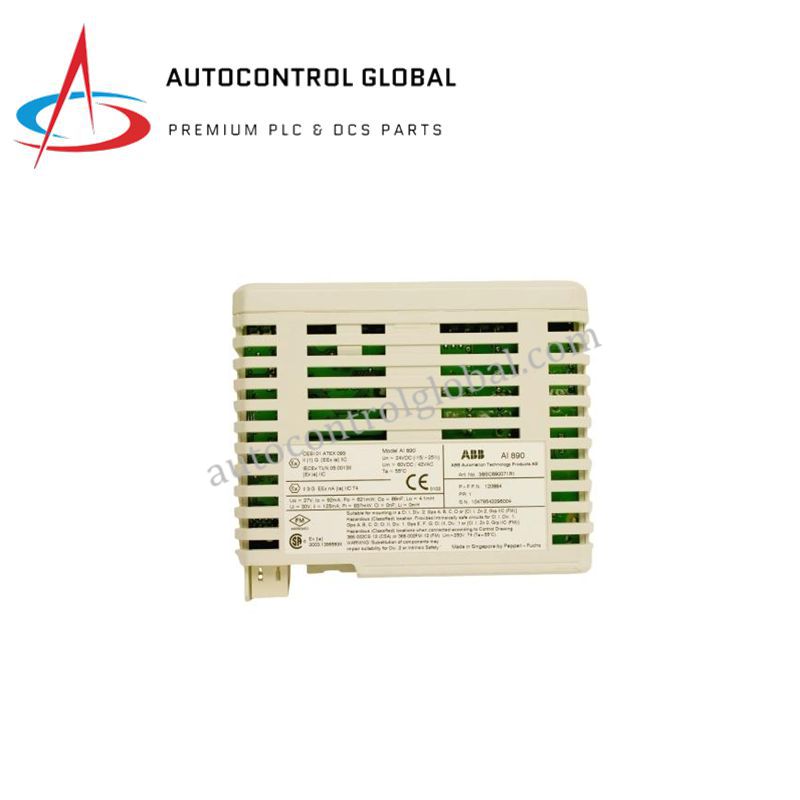

ABB AI890 Analog Input Module
Overview
The ABB AI890 is an 8-channel analog input module designed for ABB’s S800 I/O system.
It includes Intrinsic Safety (IS) protection on each channel for direct connection to hazardous area field devices.
Each channel can function as a current input or power a two-wire transmitter, ensuring flexibility for various process instrumentation needs.
The module isolates all channels from the ModuleBus and power supply within a single group.
The AI890 supports TU890 and TU891 compact MTUs, allowing two-wire connections without additional terminals.
TU890 is designed for Ex applications, while TU891 suits non-Ex applications.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | ABB |
| Model Number | AI890 |
| Product Type | Analog Input Module |
| Channels | 8 analog input channels |
| Input Types | Current input or powered two-wire transmitter |
| Input Voltage Drop | Typically 3 V (including PTC) |
| Transmitter Supply | ≥15 V at 20 mA loop current, limited to 23 mA overload |
| Intrinsic Safety | Built-in IS components on each channel |
| Isolation | All channels isolated from ModuleBus and power supply in one group |
| Power Supply | 24 V DC |
| Compatible MTUs | TU890 (Ex applications), TU891 (non-Ex applications) |
| Country of Origin | China |
| Certifications | RoHS-compliant |
| Weight | 0.5–1 kg (depending on configuration) |
FAQs
Q1: How many analog channels does ABB AI890 support?
✅ The AI890 provides 8 analog input channels with intrinsic safety on each channel.
Q2: Can AI890 be used in hazardous areas?
✅ Yes, each channel has Intrinsic Safety (IS) protection, allowing direct connection to Ex-certified devices.
Q3: What types of input does the AI890 support?
✅ Each channel can be a current input or supply power to a two-wire transmitter.
Q4: Which termination units are compatible with AI890?
✅ It supports TU890 for Ex applications and TU891 for non-Ex applications.
Q5: What is the typical input voltage drop for the module?
✅ The input voltage drop is typically 3 V, including PTC protection.
