ABB AO890 | Industrial Analog Output Module for Hazardous Areas
Manufacturer: ABB
-
Part Number: AO890
Condition：New with Original Package
Product Type: Industrial Analog Output Module for Hazardous Areas
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months

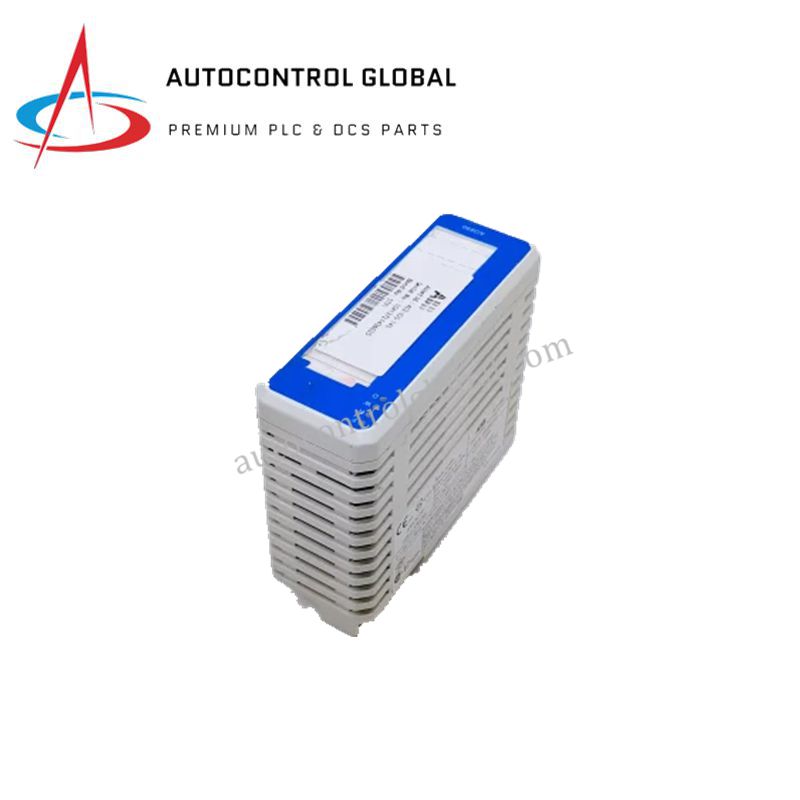

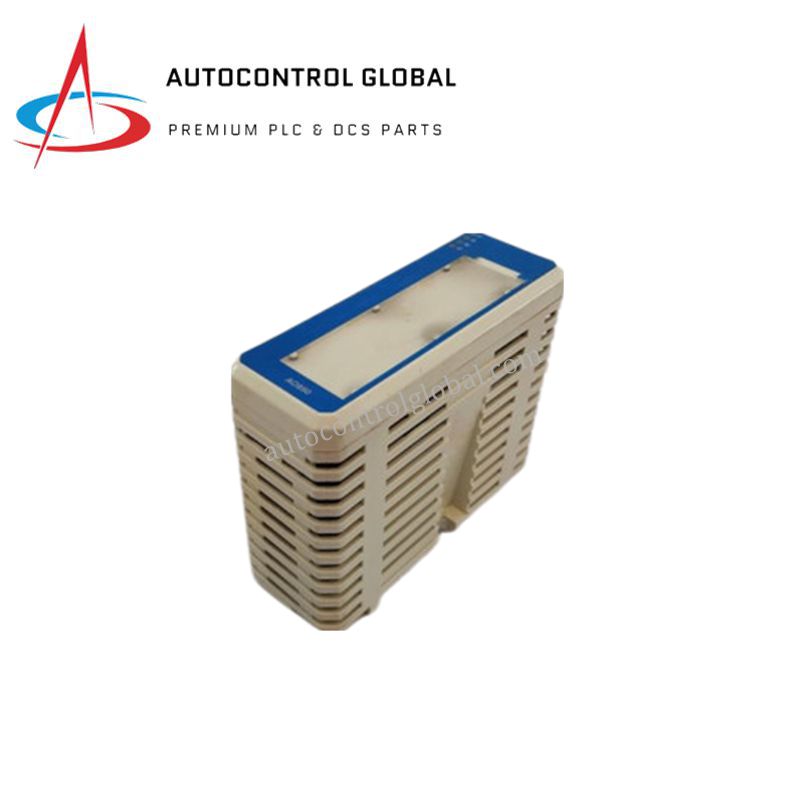

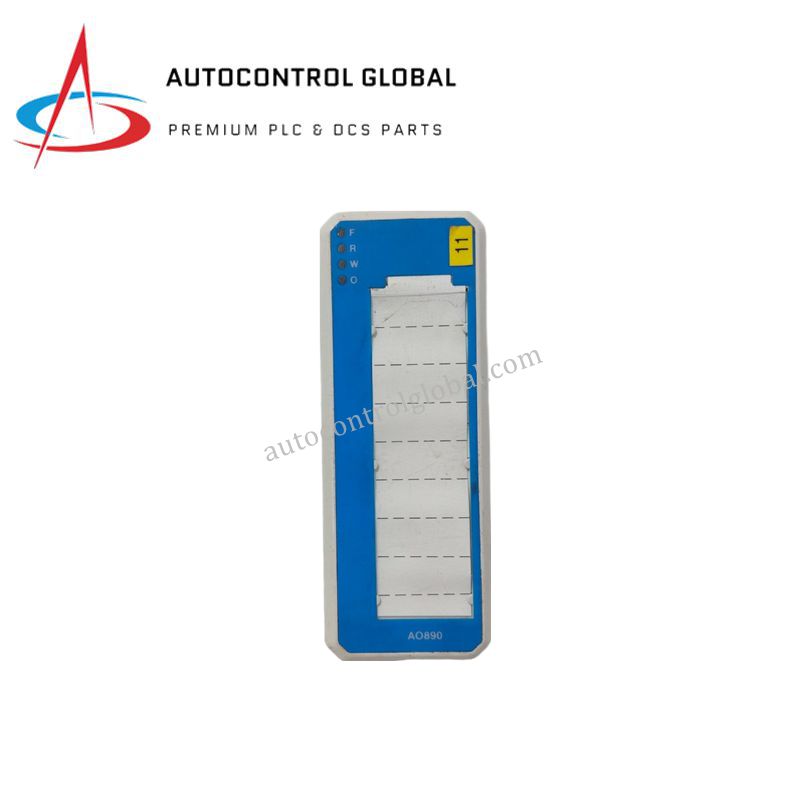

ABB AO890 Analog Output Module
Overview
The ABB AO890 is an 8-channel analog output module designed for ABB’s S800 I/O system.
Each channel integrates Intrinsic Safety (IS) protection, allowing direct connection to hazardous area field devices without external barriers.
The module supports 0–20 mA and 4–20 mA output signals, suitable for Ex-certified actuators like current-to-pressure converters.
The AO890 is compatible with TU890 (Ex applications) and TU891 (non-Ex applications) compact MTUs, enabling two-wire connections without additional terminals.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | ABB |
| Model Number | AO890 |
| Part Number | 3BSC690072R1 |
| Product Type | Analog Output Module |
| Number of Channels | 8 |
| Signal Range | 0–20 mA, 4–20 mA (software selectable) |
| Max Loop Current | 20 mA normal, 22 mA overload limit |
| Intrinsic Safety | Built-in IS components on each channel |
| Isolation | One group of 8 channels isolated from ground |
| Compatible MTUs | TU890 (Ex applications), TU891 (non-Ex applications) |
| Power Supply | 24 V DC |
| Country of Origin | China |
| Certifications | RoHS-compliant |
| Weight | 0.5–1 kg (depending on configuration) |
FAQs
Q1: How many analog output channels does ABB AO890 have?
✅ The AO890 provides 8 analog output channels with intrinsic safety protection.
Q2: Can AO890 be used in hazardous areas?
✅ Yes, each channel includes Intrinsic Safety (IS) components, allowing direct connection to Ex-certified devices.
Q3: What signal ranges does the AO890 support?
✅ It supports 0–20 mA and 4–20 mA, software-selectable for flexible control.
Q4: Which termination units are compatible with AO890?
✅ It works with TU890 for Ex applications and TU891 for non-Ex applications.
Q5: What is the maximum loop current?
✅ Maximum loop current is 20 mA under normal conditions, 22 mA under overload.
