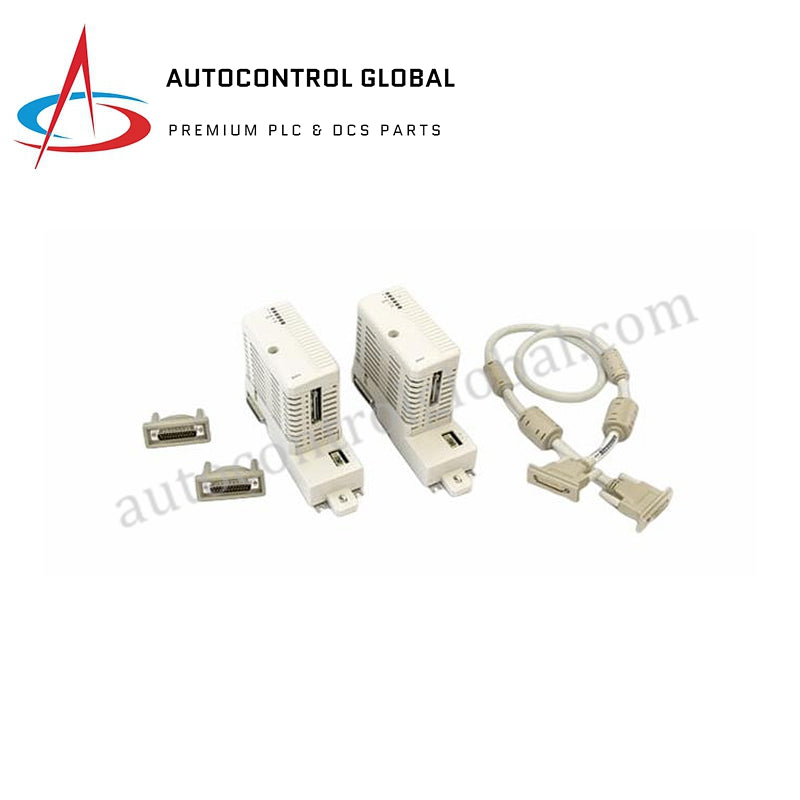

ABB BC810K02 CEX-Bus Unit Redundant Kit

Description

The ABB BC810K02 CEX-Bus Unit Redundant Kit is a reliable solution designed to provide redundant communication capabilities for industrial automation, ensuring stable performance and compliance with international standards.

Specifications

• Product Type: CEX-Bus Unit Redundant Kit

• Power Supply:

• Inputs: L+ and L- 24 V nominal, variation between 19.2 V DC and 30 V DC

• Power Consumption: 50 mA typical (70 mA max)

• Power Dissipation: 1.2 W typical

Environment and Certification

• Operating Temperature: +5 to +55°C (+41 to +131°F)

• Storage Temperature: -40 to +70°C (-40 to +158°F)

• Relative Humidity: 5 to 95%, non-condensing

• Protection Class: IP20 according to EN60529, IEC 529

• CE Mark: Yes

• Electrical Safety: UL 61010-1, UL 61010-2-201

• Hazardous Location:

• cULus Class 1, Zone 2

• AEx nA IIC T4, ExnA IIC T4Gc X

• Marine Certificates: ABS, BV, DNV-GL, LR

• RoHS Compliance: EN 50581:2012

• WEEE Compliance: DIRECTIVE/2012/19/EU

Dimensions

• Width: 59 mm (2.9 in.)

• Height: 185 mm (7.3 in.)

• Depth: 127.5 mm (5.0 in.)

Weight

• 1.5 kg (3.31 lbs) (BC810K02 package)
