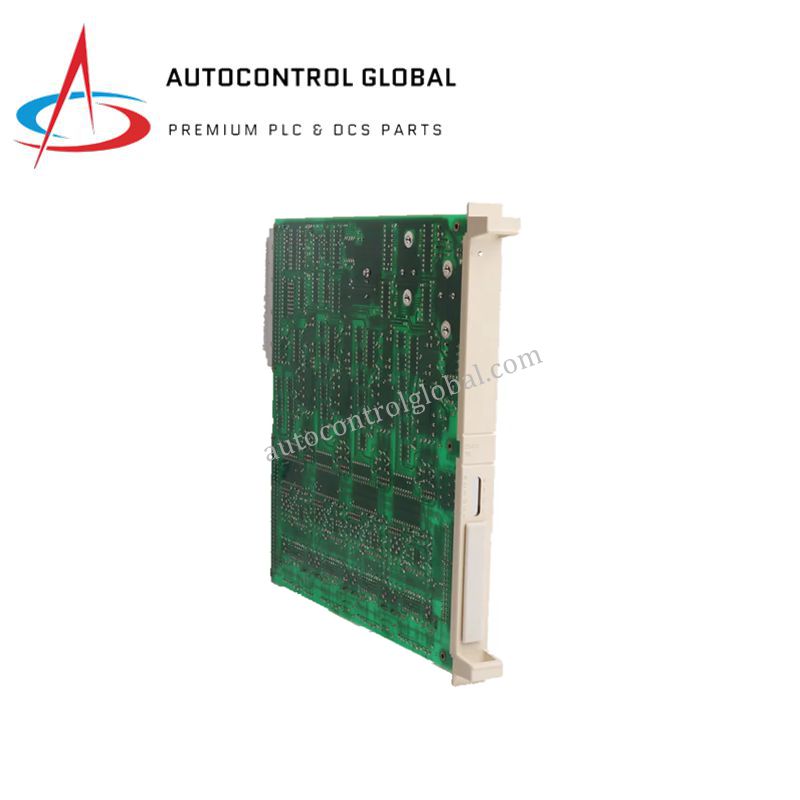

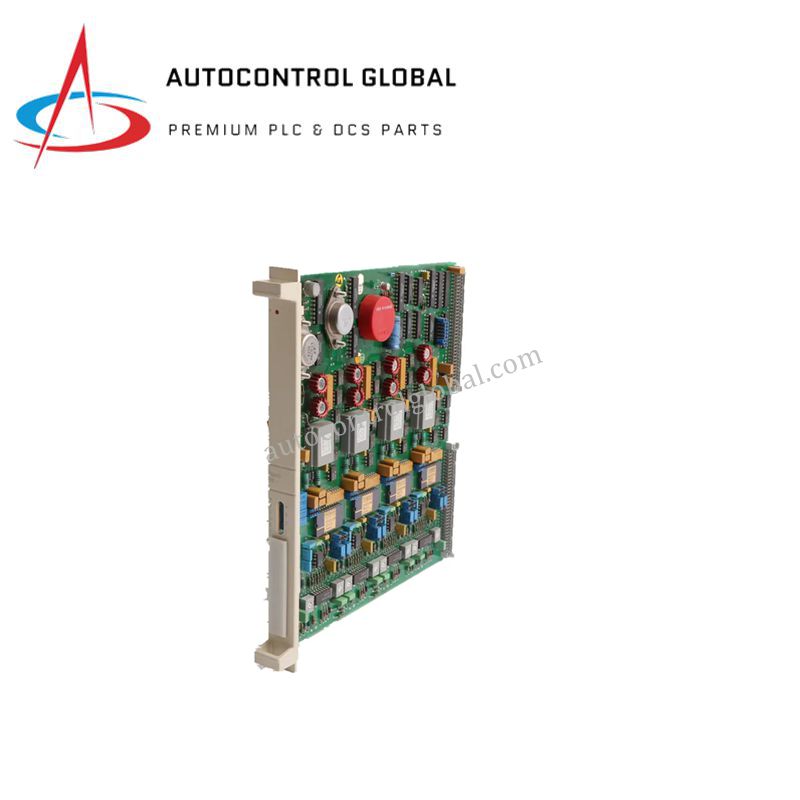

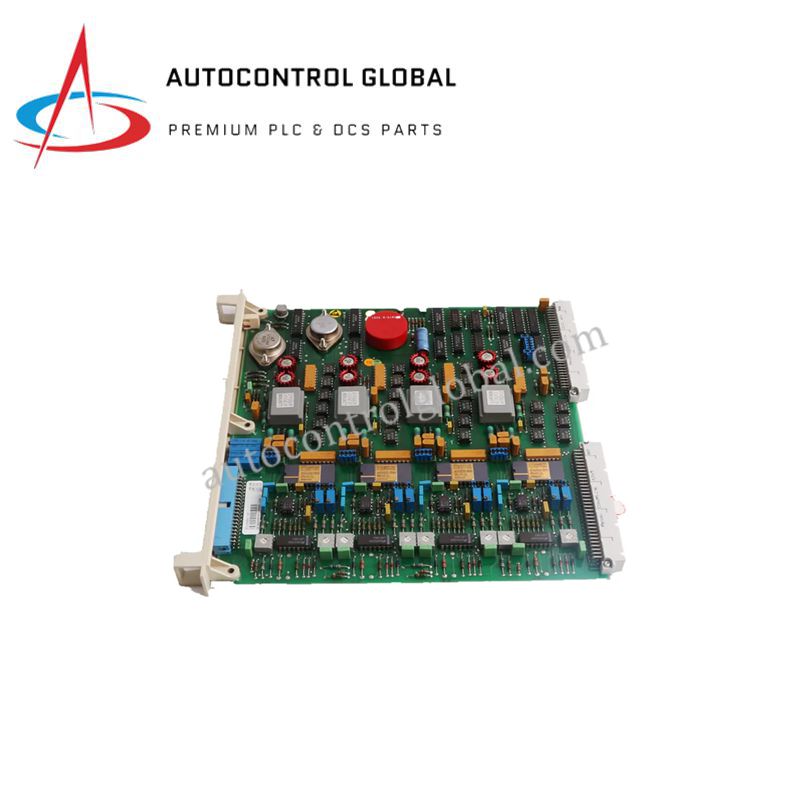

ABB CBC11-P 3BDH000734R1 | Automation Control Module
Manufacturer: ABB
-
Part Number: CBC11-P 3BDH000734R1
Condition：New with Original Package
Product Type: Automation Control Module 24V DC
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
ABB CBC11-P 3BDH000734R1 Open Loop Control Module
Overview
The ABB CBC11-P (3BDH000734R1) is an open-loop control module designed for ABB’s Symphony Plus and Melody Rack (MR) series I/O systems. It manages actuator control, signal interfacing, and process automation with outstanding reliability and precision.
This control module supports 7 or 14 channels and provides galvanic isolation per group, enhancing operational safety and signal stability. The CBC11-P integrates seamlessly with ABB control platforms, making it ideal for power generation, utilities, and process industries.
Engineered for flexibility, it accommodates relay coupling, transmitter power supply, motor drive, and solenoid actuator control. Full installation requires four CI100/101 interface modules and a cable clamp.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | CBC11-P |
| Part Number | 3BDH000734R1 |
| Product Type | Open Loop Control Module |
| Channel Type | DX |
| Number of Input Channels | 48 |
| Number of Output Channels | 36 |
| Channels (Control Function) | 7 / 14 |
| Isolation | Galvanic isolation per group |
| Functions | Relay control, transmitter power supply, motor drive, solenoid actuator |
| Software Version | From version 1.31 |
| Required Accessories | 4 × CI100/101 modules, cable clamp |
| Dimensions (L × H × W) | 204 mm × 340 mm × 45 mm |
| Weight | 0.69 kg |
| Environmental Compliance | RoHS (Directive 2011/65/EU) |
| WEEE Category | 5. Small Equipment |
| System Compatibility | Symphony Plus, S+ MR I/O |
| Country of Origin | Switzerland |
| Condition | Brand New, In Stock |
FAQs
Q1: What is the main function of the ABB CBC11-P module?
✅ The CBC11-P provides open-loop control for actuators, relays, and transmitters within Symphony Plus and Melody Rack systems.
Q2: How many channels does it support?
✅ It supports 7 or 14 control channels, each group equipped with galvanic isolation for enhanced safety.
Q3: What accessories are required for installation?
✅ You need four CI100/101 interface modules and a cable clamp for full setup.
Q4: Is this module compliant with RoHS standards?
✅ Yes, it fully complies with EU Directive 2011/65/EU (RoHS) and falls under WEEE Category 5.
Q5: What are the shipping and warranty details?
✅ The ABB CBC11-P is brand new and in stock. We ship via FedEx/DHL within 3–14 days, depending on order size. Warranty coverage is 12 months, with a 30-day return policy for any quality issues.
