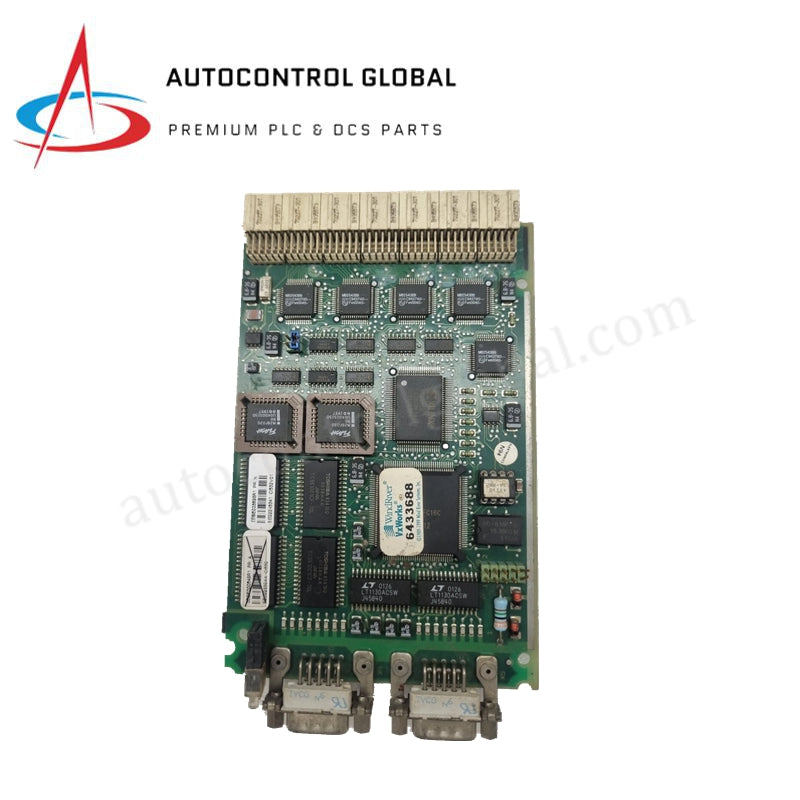

ABB CI532V01 (3BSE003826R1) Advant Controller RCOM Board

Product Overview

The CI532V01 (3BSE003826R1) is a specialized RCOM (Remote Communication) interface module designed for the ABB Advant Controller and AC 450 series. It serves as a high-performance gateway for peer-to-peer communication between different controller units and high-level supervision systems. By utilizing the RCOM protocol over serial links (RS-232C), the CI532V01 (3BSE003826R1) enables stable, long-distance data exchange for process signals and control parameters. This module is essential for distributed control architectures where geographic separation requires a robust, interference-resistant communication bridge to maintain system-wide synchronization and real-time monitoring.

Detailed Technical Specifications

• Manufacturer: ABB

• Model Name: CI532V01

• Part Number: 3BSE003826R1

• Series: Advant Controller / MasterPiece Series

• Interface Protocol: RCOM (Remote Communication Protocol)

• Physical Interface: Serial Link RS-232C (V.24)

• Data Transmission Rate: Supports standard asynchronous baud rates (typically up to 19.2 kbit/s)

• Communication Modes: Point-to-point, multidrop, or dial-up modem support

• Isolation: Galvanic isolation for enhanced signal integrity in industrial environments

• Power Supply: 24 V DC internal system power (derived from the subrack)

• Operating Temperature: -20°C to +60°C

• Storage Temperature: -40°C to +85°C

• Housing Material: Metal/Industrial-grade structural components

• Dimensions: 160 mm × 120 mm × 90 mm

• Weight: 1.35 kg

• Mounting: Subrack mounted (MasterPiece/Advant controller frames)

• Ingress Protection: IP20

• Certifications: CE, UL, RoHS compliant
