ABB CI547 | Industrial Communication Module with Slave Processor
Manufacturer: ABB
-
Part Number: CI547 3BNP004429R1
Condition：New with Original Package
Product Type: Industrial Communication Module with Slave Processor
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months

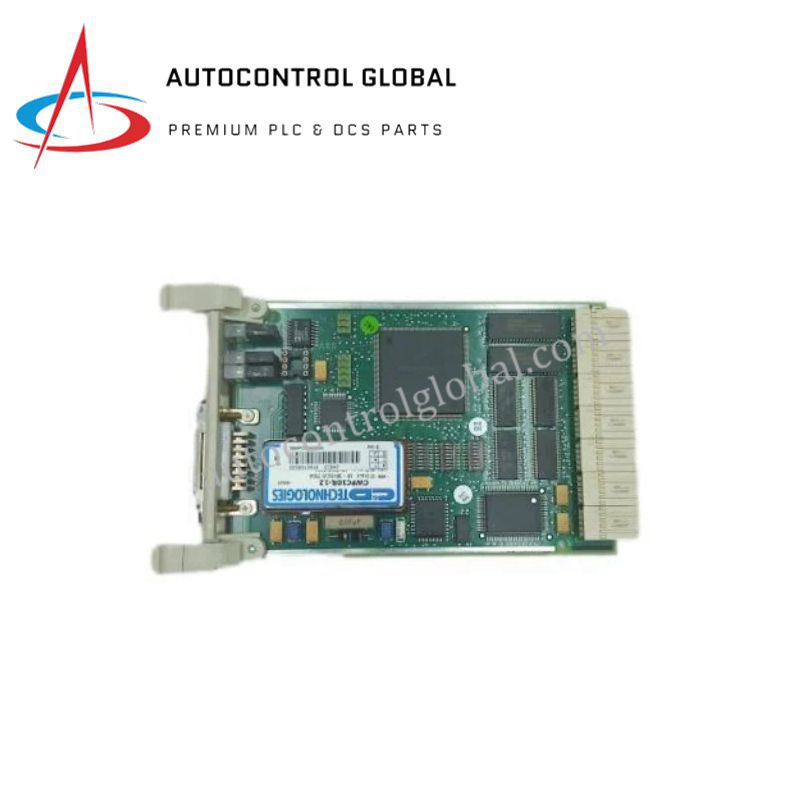

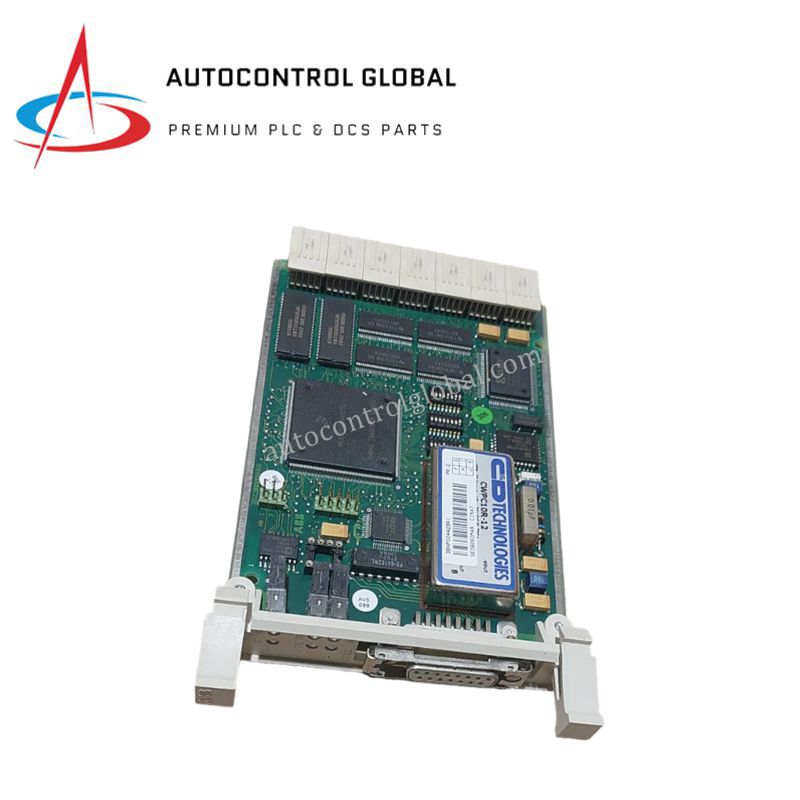

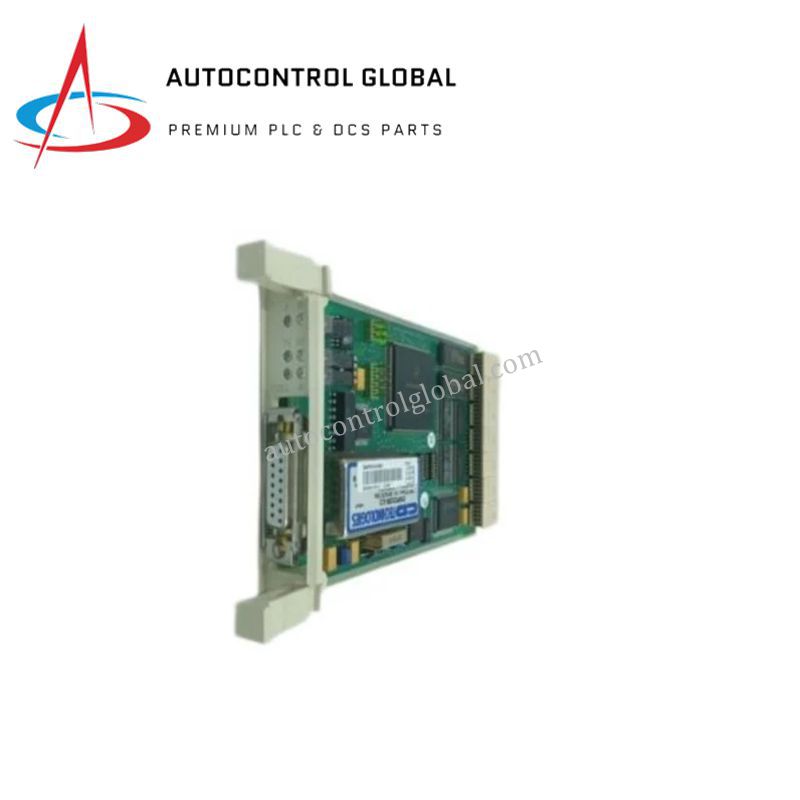

ABB CI547 Communication Interface Board
Overview
The ABB CI547 (3BNP004429R1) is a high-performance communication interface board for Advant Master and Safeguard 400 automation systems.
It supports MasterBus 300 (MB300) network protocols, enabling reliable data exchange between distributed control systems and field devices.
The module integrates a slave communication processor, offloading data handling from the central PM150 controller, reducing latency and enhancing system performance.
Its robust design ensures consistent operation in industrial environments, including power generation, oil & gas, water treatment, and manufacturing.
The board is powered via the system backplane and handles high-speed communication up to 1 Mbps, making it ideal for complex control applications.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | CI547 |
| Part Number | 3BNP004429R1 |
| Product Type | Communication Interface Board |
| Communication Protocol | MasterBus 300 (MB300) |
| Integrated Processor | MB300 slave communication processor |
| System Compatibility | Advant Master, Safeguard 400 |
| Power Supply | Supplied via control system backplane |
| Data Transfer Rate | Up to 1 Mbps |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | –20°C to +70°C |
| Dimensions (L × W × H) | 257 × 125 × 30 mm |
| Weight | 0.165 kg |
| Country of Origin | Sweden |
| Application Areas | Power generation, oil & gas, water treatment, manufacturing |
FAQs
Q1: What communication protocol does the CI547 support?
✅ The ABB CI547 supports MasterBus 300 (MB300) for high-speed industrial communication.
Q2: Which systems is this module compatible with?
✅ It is compatible with Advant Master and Safeguard 400 automation systems.
Q3: Does the CI547 include a processor?
✅ Yes, it integrates an MB300 slave communication processor to offload data exchange tasks.
Q4: How is the module powered?
✅ The CI547 draws power directly from the system backplane.
Q5: What are the module dimensions and weight?
✅ It measures 257 × 125 × 30 mm and weighs 0.165 kg, suitable for standard industrial cabinets.
