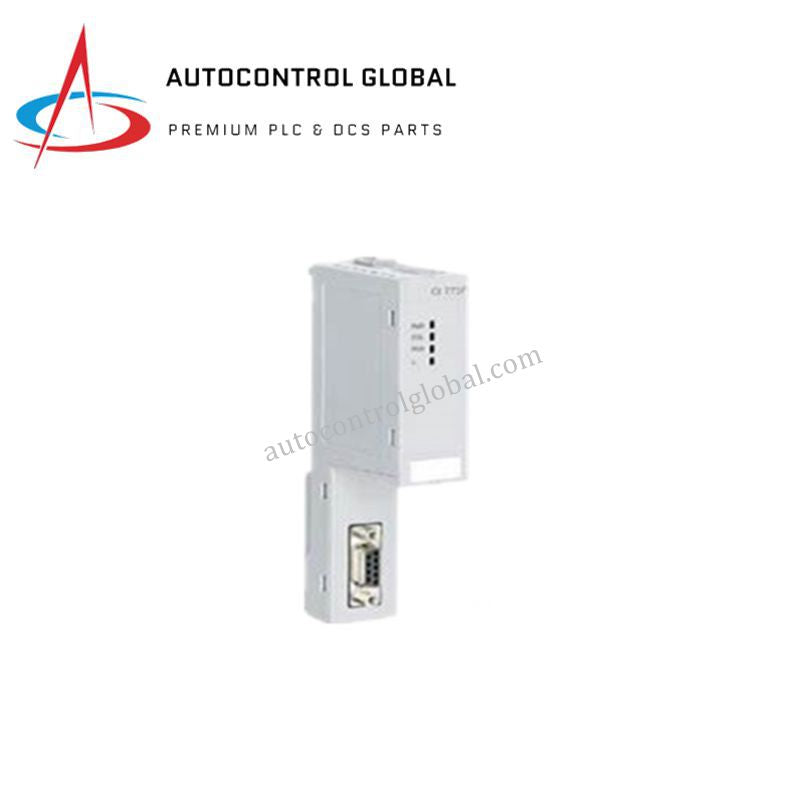

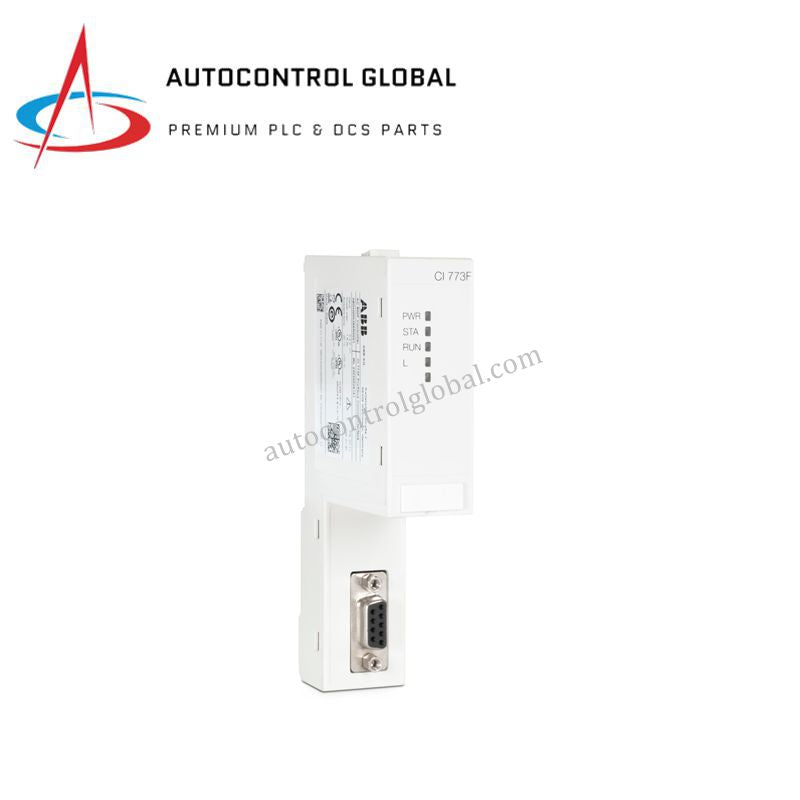

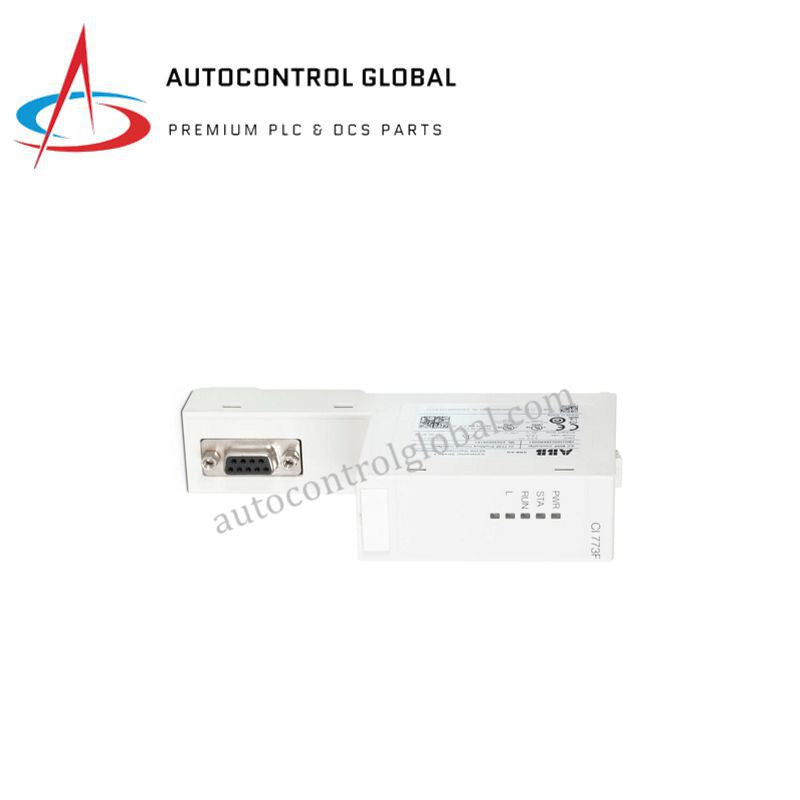

ABB CI773F 3BDH000395R0001 | High-Speed PROFIBUS Master Module
Manufacturer: ABB
-
Part Number: CI773F
Condition：New with Original Package
Product Type: High-Speed PROFIBUS Master Module
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
ABB CI773F PROFIBUS DP Master Communication Module | 3BDH000395R0001
Overview
The ABB CI773F is a PROFIBUS DP Master communication module developed for ABB’s AC 700F and AC 900F controller families.
It enables seamless communication with PROFIBUS DP field devices such as sensors, actuators, and remote I/Os.
The module supports DP-V0 and DP-V1 protocols with data transmission speeds up to 12 Mbit/s, ensuring fast and reliable fieldbus communication.
Engineered for flexibility, the CI773F supports controller redundancy and line redundancy through the RLM02 redundancy link module.
Its hot-swap capability and IP20 protection make maintenance quick and secure, even during live operations.
This design ensures uninterrupted communication in industrial automation environments where uptime and reliability are critical.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | CI773F |
| Part Number | 3BDH000395R0001 |
| Product Type | PROFIBUS DP Master Communication Interface |
| Supported Protocols | PROFIBUS DP-V0 and DP-V1 |
| Max Transmission Speed | 12 Mbit/s |
| Connector Type | 1 × 9-pin D-Sub terminal |
| Redundancy Support | Controller redundancy; line redundancy via RLM02 |
| Hot Swap Capability | Yes |
| Protection Class | IP20 |
| Software Requirement | Version 2013 SP1 or higher |
| System Compatibility | AC 700F, AC 900F controllers |
| Communication Type | PROFIBUS DP Master fieldbus interface |
| Additional Notes | PROFIBUS PA supported via separate PA/DP coupler |
FAQs
Q1: Which ABB systems are compatible with the CI773F module?
✅ The CI773F is compatible with ABB AC 700F and AC 900F control systems.
Q2: Does the CI773F support both DP-V0 and DP-V1 communication?
✅ Yes, it supports both DP-V0 and DP-V1 protocols for comprehensive fieldbus control.
Q3: Can the CI773F be replaced without shutting down the system?
✅ Absolutely. The module is hot-swappable, allowing safe replacement during operation.
Q4: How is redundancy achieved with the ABB CI773F?
✅ The module supports controller redundancy and line redundancy when used with an RLM02 redundancy link module.
Q5: What are the delivery and warranty terms?
✅ All units are brand new and original. We have stock available, and typically ship within 3 days to 2 weeks, depending on order size and logistics (e.g., DHL).
If any quality issues occur, we provide 30-day return support.
