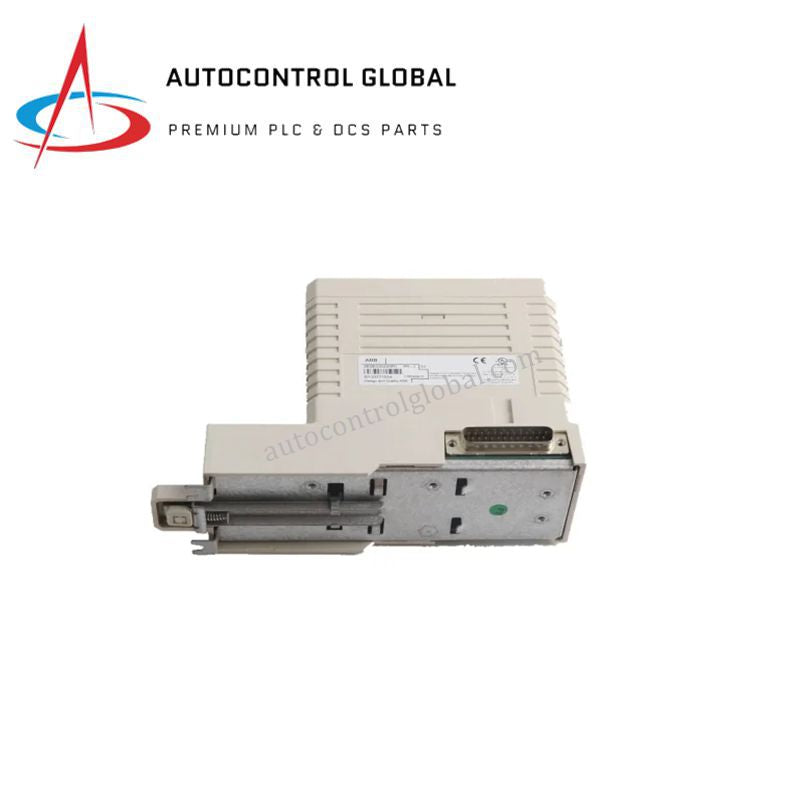

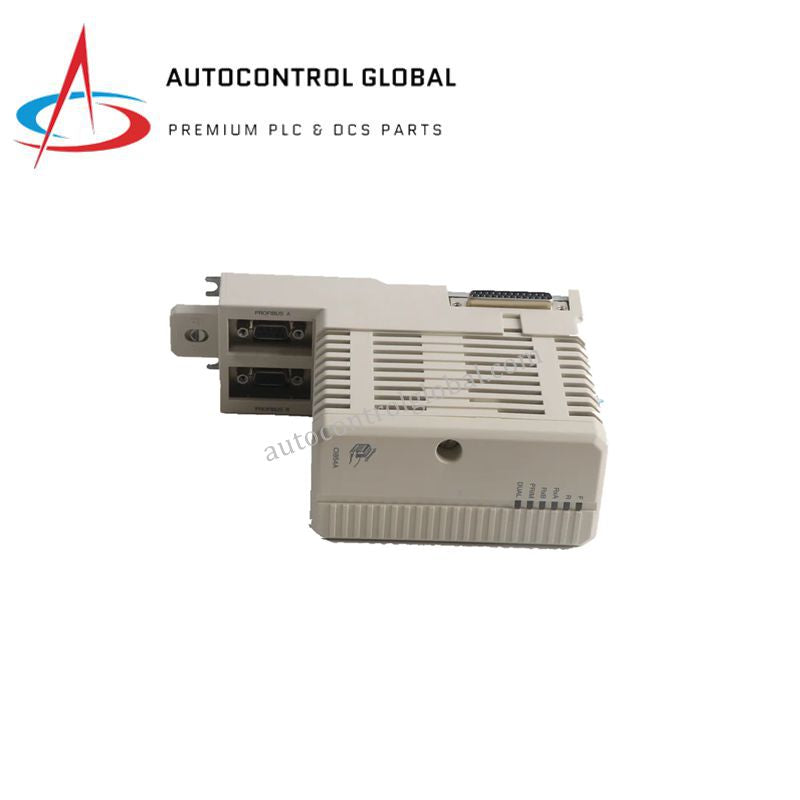

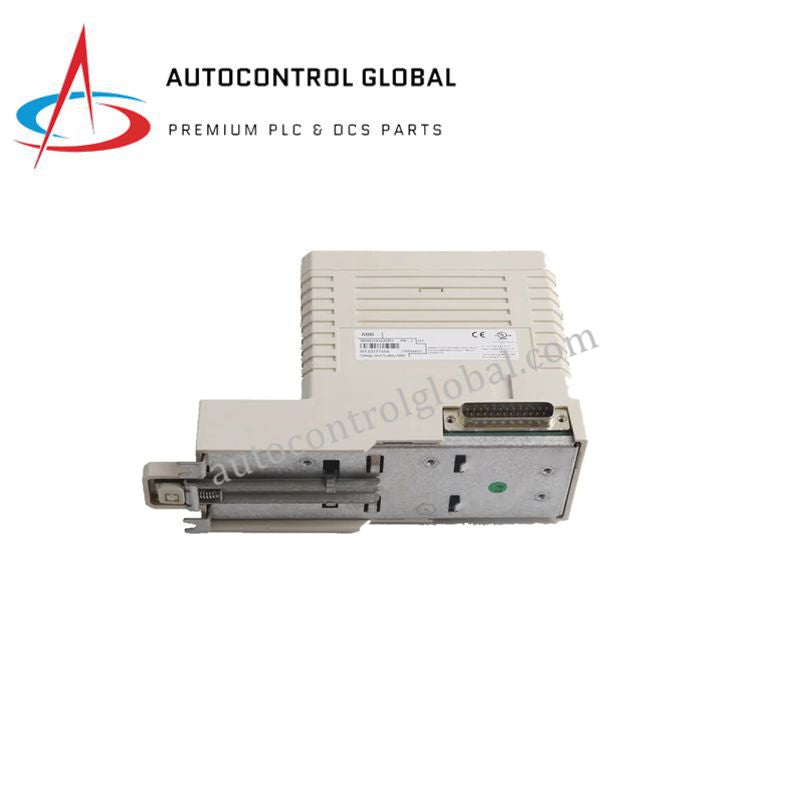

ABB CI773F | Compact PROFIBUS DP Master Module for AC Controllers
Manufacturer: ABB
-
Part Number: CI773F 3BDH000395R0001
Condition：New with Original Package
Product Type: Compact PROFIBUS DP Master Module for AC Controllers
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
ABB CI773F PROFIBUS DP Master Module
Overview
The ABB CI773F is a high-performance PROFIBUS DP Master module designed for ABB AC 700F and AC 900F controllers.
It enables seamless integration of PROFIBUS DP field devices, including sensors, actuators, and third-party controllers.
This module supports DP-V0 and DP-V1 protocols at speeds up to 12 Mbit/s, ensuring fast and reliable data transfer.
A 9-pin D-Sub connector provides secure connection, while external RLM02 redundancy support ensures high system availability.
Its compact design and DIN rail mounting make it ideal for distributed control, process monitoring, and industrial automation systems.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | CI773F |
| Part Number | 3BDH000395R0001 |
| Product Type | PROFIBUS DP Master Module |
| Supported Protocols | PROFIBUS DP-V0, DP-V1 |
| Max Communication Speed | 12 Mbit/s |
| Connector Type | 1 × 9-pin D-Sub |
| Redundancy Support | Line redundancy via external RLM02 module |
| System Compatibility | AC 700F, AC 900F controllers |
| Mounting | DIN rail |
| Dimensions (L × W × H) | 75 × 28 × 135 mm |
| Weight | 0.1 kg |
| RoHS Compliance | Yes, per EU Directive 2011/65/EU and Amendment 2015/863 |
| WEEE Category | 5. Small Equipment |
| Application Areas | Industrial automation, process control, distributed I/O systems |
FAQs
Q1: What devices are compatible with ABB CI773F?
✅ It works with ABB AC 700F and AC 900F controllers and supports PROFIBUS DP devices.
Q2: Which protocols does the module support?
✅ DP-V0 and DP-V1 protocols up to 12 Mbit/s.
Q3: Does the module support redundancy?
✅ Yes, it supports line redundancy using the external RLM02 module.
Q4: What are the module dimensions and weight?
✅ Dimensions: 75 × 28 × 135 mm, weight: 0.1 kg.
Q5: How quickly can the module be delivered?
✅ Stock available, shipping within 3 days to 2 weeks via DHL, FedEx, TNT, or UPS.
