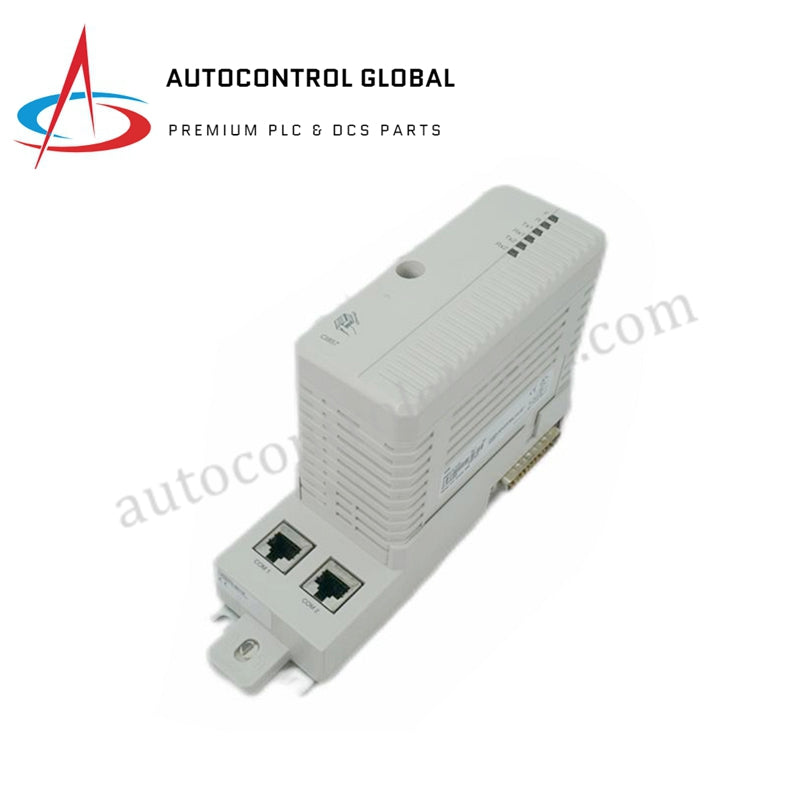

ABB CI857 | AC 800M Communication Interface Module

Description

The ABB CI857 AC 800M Communication Interface Module enables seamless communication within industrial automation systems. It acts as a master on the CEX bus, supporting a maximum of 6 units, and provides robust connectivity with a 10 Mbit/s transmission speed. The module features hot-swapping capabilities and is designed for use with the HI Controller.

Key Features

• Max Units on CEX Bus: 6

• Connector: RJ-45 female (8-pin)

• 24 V Consumption (typ.): 150 mA

• Master/Slave: Master

• Transmission Speed: 10 Mbit/s

• Line Redundancy: No

• Module Redundancy: No

• Hot Swap: Yes

• Used with HI Controller: Yes

Environmental Conditions

• Operating Temperature: +5 to +55 °C (+41 to +131 °F)

• Storage Temperature: -40 to +70 °C (-40 to +158 °F)

Dimensions

• Width: 59 mm (2.3 in.)

• Height: 185 mm (7.3 in.)

• Depth: 127.5 mm (5.0 in.)

Weight

• Weight (including base): 700 g (1.5 lbs)
