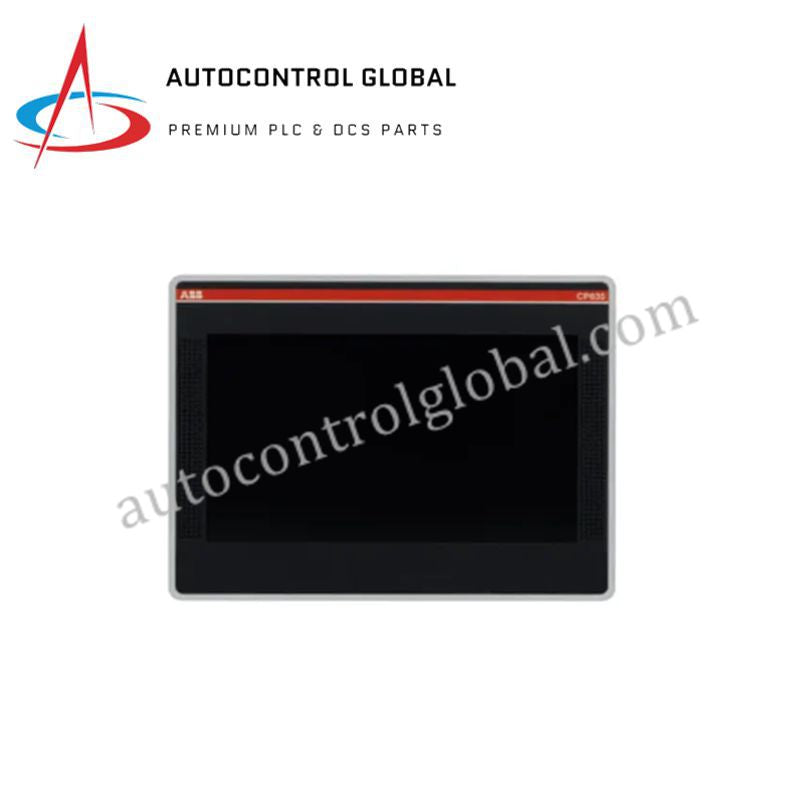

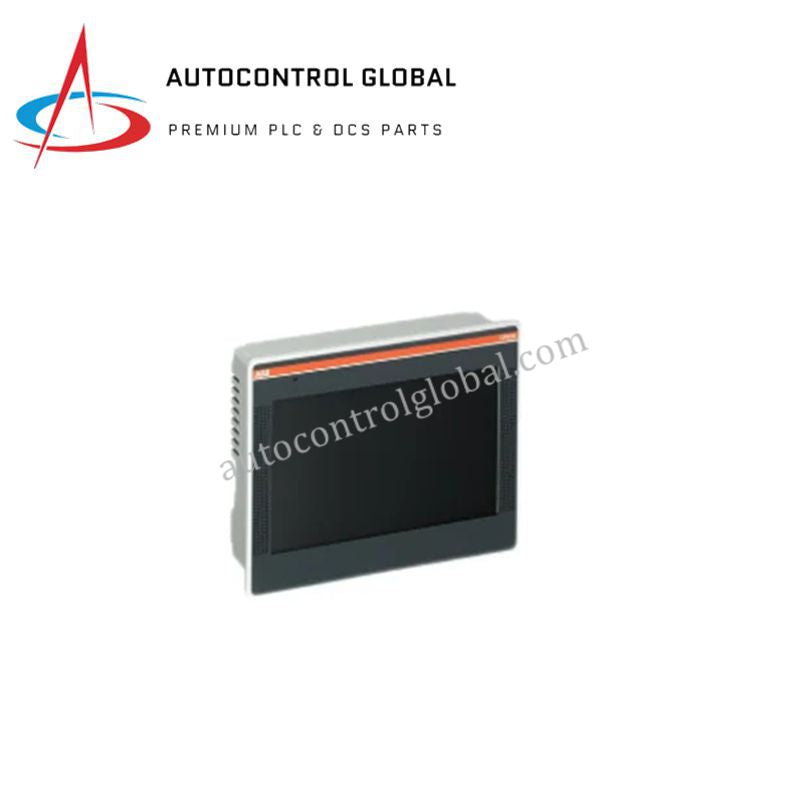

ABB CP6610 1SAP561010R0001| Pro Operator Control Panel
Manufacturer: ABB
-
Part Number: CP6610 1SAP561010R0001
Condition：New with Original Package
Product Type: Pro Operator Control Panel
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
ABB CP6610 – CP600-Pro Series HMI Panel
The ABB CP6610, part number 1SAP561010R0001, is a modern HMI control panel from the CP600-Pro series. Designed for industrial automation, it features a 10.1-inch capacitive multi-touch TFT display with 1280 × 800 resolution. Operators gain intuitive process visualization, reliable monitoring, and real-time control feedback.
Powered by an ARM Cortex-A9 quad-core processor, the CP6610 ensures smooth performance even in demanding applications. With 2 GB DDR3 RAM and 4 GB flash memory, it provides fast data handling and secure storage. Its robust housing and IP66-rated front panel allow deployment in harsh industrial environments without compromising usability.
Technical Specifications
| Feature | Description |
|---|---|
| Model | CP6610 |
| Part Number | 1SAP561010R0001 |
| Series | CP600-Pro |
| Display | 10.1" TFT LCD, 1280 × 800 resolution, 16M colors, capacitive multi-touch |
| Processor | ARM Cortex-A9 Quad Core |
| Operating System | Embedded Linux with Chromium-based browser |
| Memory | 2 GB DDR3 RAM, 4 GB eMMC flash |
| Interfaces | 2 × Ethernet (10/100/1000 Mbps), 2 × USB 2.0 Host, 1 × RS-232/RS-485, SD card slot |
| Power Supply | 24 V DC (±20%) |
| Power Consumption | 15 W |
| Mounting | Panel mount (flush installation) |
| Enclosure Rating | Front: IP66, Rear: IP20 |
| Operating Temp. | –20°C to +60°C |
| Storage Temp. | –30°C to +70°C |
| Humidity Range | 5% to 85% RH, non-condensing |
| Dimensions | Width: 271 mm, Height: 213 mm, Depth: 50 mm |
| Weight | 1.5 kg |
