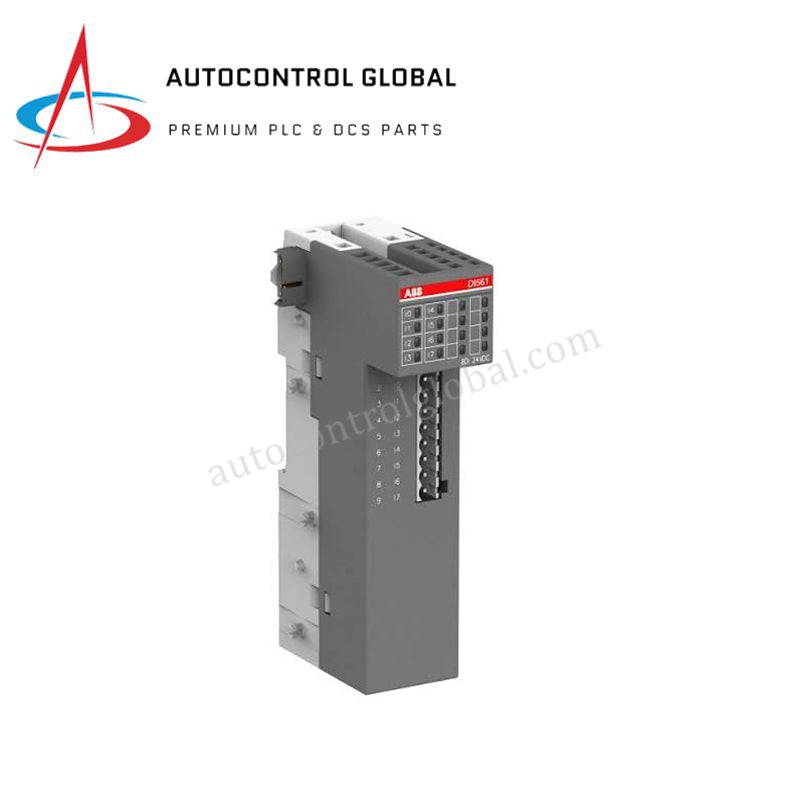

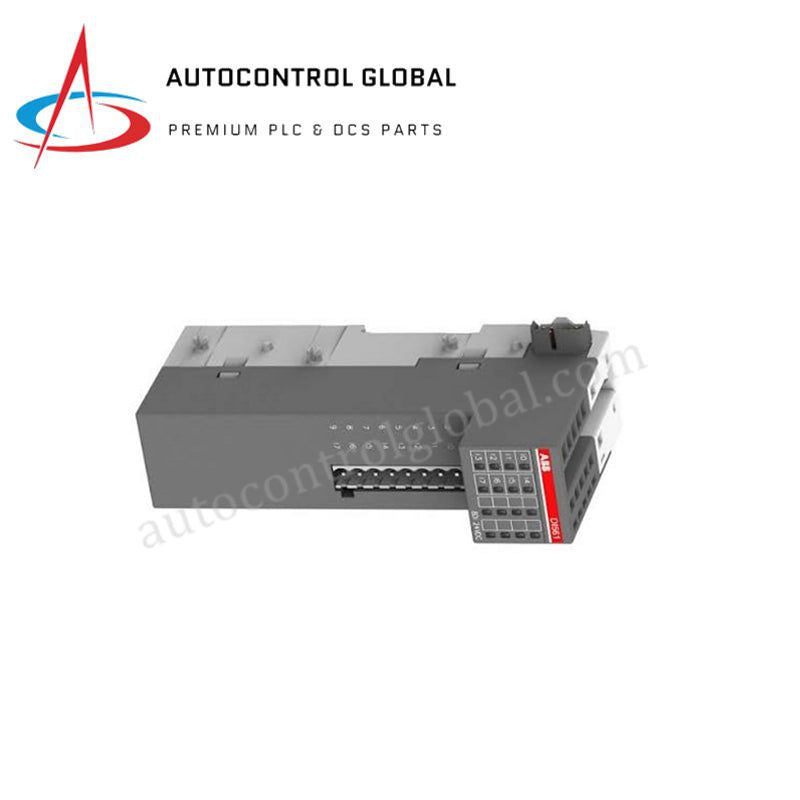

ABB DI561 S500-eCo Digital Input Module 1TNE968902R2101

  • Manufacturer: ABB

  • Part Number: DI561 1TNE968902R2101

  • Condition:New with Original Package

  • Product Type: Digital Input Modules

  • Country of Origin: Sweden

  • Payment:T/T, Western Union

  • Shipping port: Xiamen

  • Warranty: 12 months

ABB DI561 S500-eCo Digital Input Module

Configured for discrete DC signal detection in AC500-eCo PLC networks, the ABB DI561 (DI561 Digital Input Module) provides direct physical/electrical execution. The hardware design registers binary status variations from automated machinery, routing input variables via a single-wire interface directly to the underlying backplane controller architecture to establish process synchronization across the automation network.

Hardware Specifications

Parameter Specification
Model DI561 (Part Number: 1TNE968902R2101)
Brand ABB
Origin China
Weight 0.113 kg net (0.213 kg gross)
Dimensions 34 mm x 74 mm x 135 mm (W x H x D)
Operating Temp 0 to +60 deg C (horizontal mounting), 0 to +40 deg C (vertical mounting)
Power Consumption System backplane drawing dependent
Number of Digital Inputs 8 channels (sink/source configurable)
Input Voltage Type AC/DC compatibility matrix
Input Voltage (Rated) 24 VDC (operating window: 15 to 30 VDC)
Input Current Profile ~3 mA to 5 mA per channel
Input Delay Time 0 to 1: 1 ms, 1 to 0: 1 ms (fixed RC filter latency)
Channel Allocation 1 isolated group consisting of 8 channels
Overvoltage Protection Tolerates transient surge spikes up to 35 VDC for 0.5 s
Process Power Input 24 VDC external supply through UP connection terminal
Ground Reference ZP connection terminal (0 VDC)
Protection Class IP20

Industrial Control and Driver Integration Technical Attributes

The electrical interface utilizes an adjustable input channel structure that accepts both sink and source wiring configurations to integrate with diverse field sensor topologies. Data block transmission between the input conditioning circuitry and the CPU happens via the local backplane bus, where the module relies on firmware flash compatibility to match the execution velocity parameters of the master station.

When integrated into Profinet or EtherNet/IP deterministic networks, the channel status registers update inside the cyclic process image without introducing software logic overhead. Galvanic isolation barriers physically segment the internal logic rails from the field-side terminal circuits, suppressing high-frequency transient anomalies. Process loop power requires stabilization through the UP and ZP terminal connections, backed by an external 3 A fast-acting fuse to avoid device damage during terminal short-circuit faults.

Frequently Asked Questions

Q: How does the chosen mechanical mounting orientation affect the thermal operating limits of this module?

A: Standard horizontal DIN-rail orientation relies on unhindered natural convection cooling up to +60 deg C. If you mount the module vertically, the structural alteration reduces chimney-effect airflow, requiring a physical ambient temperature derating down to a maximum of +40 deg C.

Q: Can the 1 ms hardware input delay filter be disabled to monitor high-frequency pulse inputs?

A: No, the 1 ms delay filter is hardwired into the input channel conditioning logic to filter out mechanical contact bounce and electrical line noise, preventing false trigger states from passing to the backplane bus image.

Q: Does this module allow live replacement or hot-swapping while the master system remains energized?

A: No, the S500-eCo bus architecture lacks specialized power-sequencing circuitry to manage live insertion spikes. You must disconnect the main process supply and power down the backplane rack prior to conducting any replacement actions.

Field Installation Guidelines

  • DIN-Rail Fixation Security: Align the slot on the backplate onto a standard TH35 symmetric DIN rail, compressing the module until the plastic mounting latch engages to prevent shifting under vibration.
  • Shielding and Grounding Standards: Terminate all external input wiring shields at a dedicated functional earth busbar located at the panel entry point; do not route shield wiring directly to the module terminals.
  • Overcurrent Protection Requirements: Wire a 3 A fast-acting fuse in series with the 24 VDC process line connected to the UP terminal to isolate overcurrent faults before internal hardware failure occurs.
  • Terminal Block Wiring: Strip external conductors according to terminal block depth parameters, checking that no bare strands extend past the pluggable connector block to prevent cross-channel shorts.
