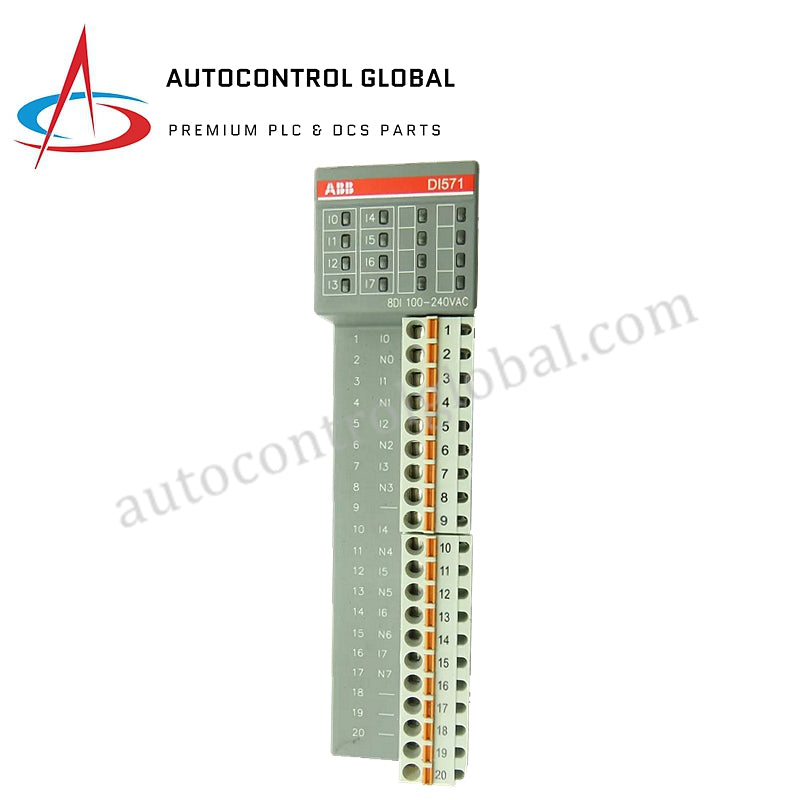

ABB | DI571 | Digital Input Module

General Information

• Extended Product Type: DI571
• Product ID: 1TNE968902R2103
• ABB Type Designation: DI571
• EAN: 6943747170237
• Catalog Description: Digital input module. 8 DI: 100..240VAC (DI571)
• Long Description: DI571: S500-eCo Digital input module. 8 DI: 100..240VAC. 2-wire

Ordering

• CN8: 85371091
• Invoice Description: Digital input module. 8 DI: 100..240VAC (DI571)
• Made To Order: No
• Minimum Order Quantity: 1 piece
• Order Multiple: 1 piece
• Selling Unit of Measure: piece

Dimensions

• Product Net Weight: 0.129 kg
• Product Net Depth / Length: 135 mm
• Product Net Height: 74 mm
• Product Net Width: 34 mm

Technical

• Function: 8 DI: 100..240VAC
• Number of Digital Inputs: 8
• Number of Digital Configurable I/Os: 0
• Input Voltage Type: AC
• Input Current: 8 mA
• Maximum Input Voltage: 0 ... 264 V
• Delay Time (τ): 15 … 30 ms
• Connection Type: Pluggable
• Degree of Protection: IP20
• Ambient Air Temperature:
  • Operation: 0 ... +60 °C
  • Storage: -40 ... +70 °C

Additional Information

• Product Main Type: DI571
• Product Name: Distributed Automation I/Os
