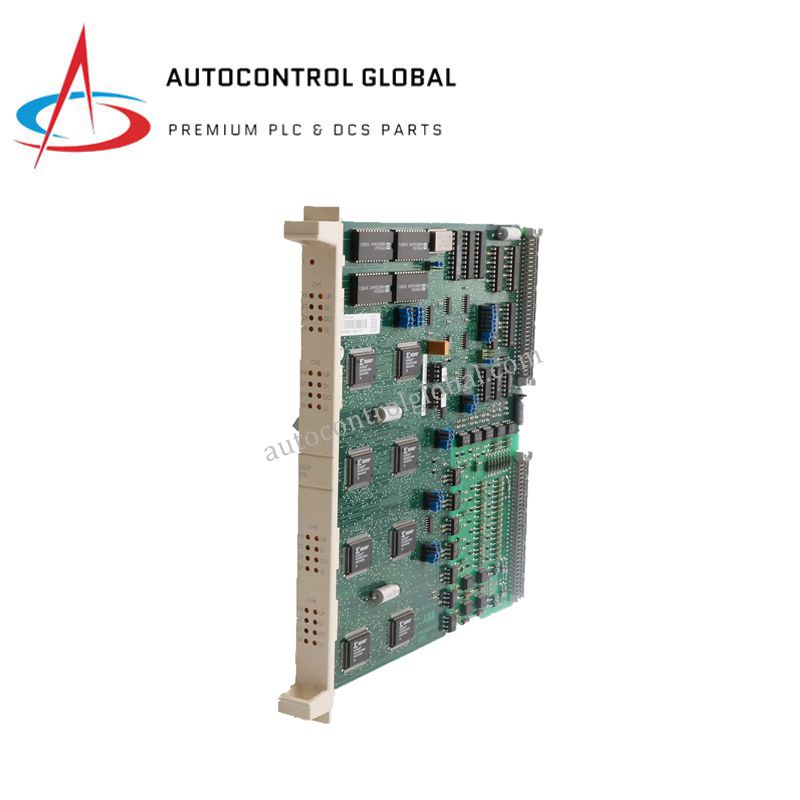

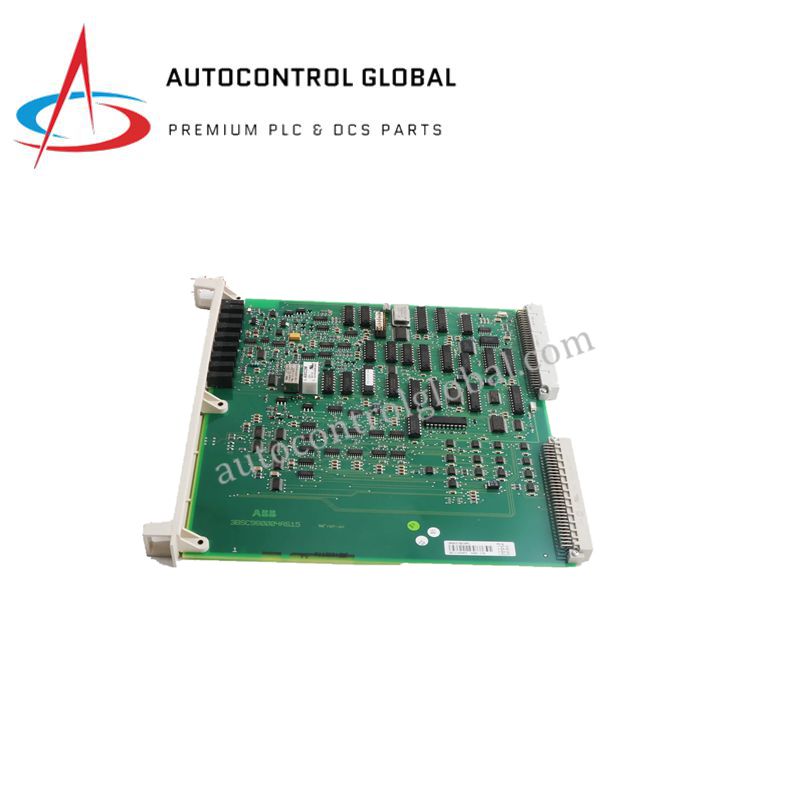

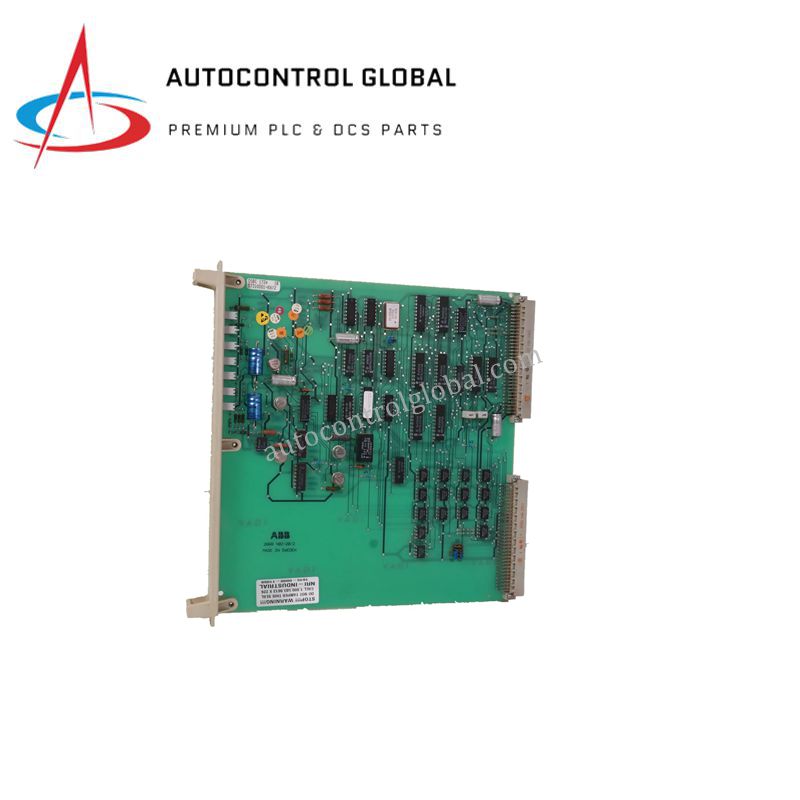

ABB DI620 | 32-Channel Digital Input Module for Industrial Control
Manufacturer: ABB
-
Part Number: DI620 3BHT30002R1
Condition：New with Original Package
Product Type: 32-Channel Digital Input Module for Industrial Control
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
ABB DI620 Digital Input Module
Overview
The ABB DI620 is a high-density digital input module designed for ABB Freelance DCS and Symphony Plus control systems.
It offers 32 digital input channels, each supporting 24 V DC signals for precise monitoring of sensors, switches, and binary devices.
The module supports sink and source inputs, with fast response times and per-channel LED indicators for easy diagnostics.
It features hot-swap capability, overvoltage protection, and electrical isolation, making it suitable for demanding industrial environments.
The DI620 is DIN rail mountable and ensures reliable data acquisition for distributed control applications.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | DI620 |
| Part Number | 3BHT30002R1 |
| Product Type | Digital Input Module |
| Number of Channels | 32 digital inputs |
| Input Voltage | 24 V DC nominal (18–30 V DC) |
| Input Type | Sink or source (configurable) |
| Input Current | Approx. 2–24 mA |
| Input Impedance | 4.7 kΩ |
| Response Time | <5 ms (typical), 1 ms (fast mode) |
| Isolation Voltage | 2500 V between channels and system bus |
| Power Consumption | 5 W |
| Status Indicators | LED per channel |
| Mounting Type | DIN rail |
| Dimensions (W × H × D) | 252 × 273 × 40 mm |
| Weight | 1.17 kg |
| Operating Temperature | –25°C to +70°C |
| System Compatibility | ABB Freelance DCS, Symphony Plus |
| Features | Overvoltage protection, hot-swappable, easy configuration |
| RoHS Compliance | Following EU Directive 2011/65/EU |
| WEEE Category | 5 – Small Equipment |
| Country of Origin | Sweden |
FAQs
Q1: How many channels does the ABB DI620 support?
✅ The DI620 supports 32 digital input channels for comprehensive monitoring.
Q2: Which systems is this module compatible with?
✅ It works with ABB Freelance DCS and Symphony Plus control systems.
Q3: What input types are supported?
✅ The DI620 supports sink and source configurable inputs with 24 V DC nominal voltage.
Q4: Is the module hot-swappable?
✅ Yes, DI620 supports hot-swap functionality for maintenance without system shutdown.
