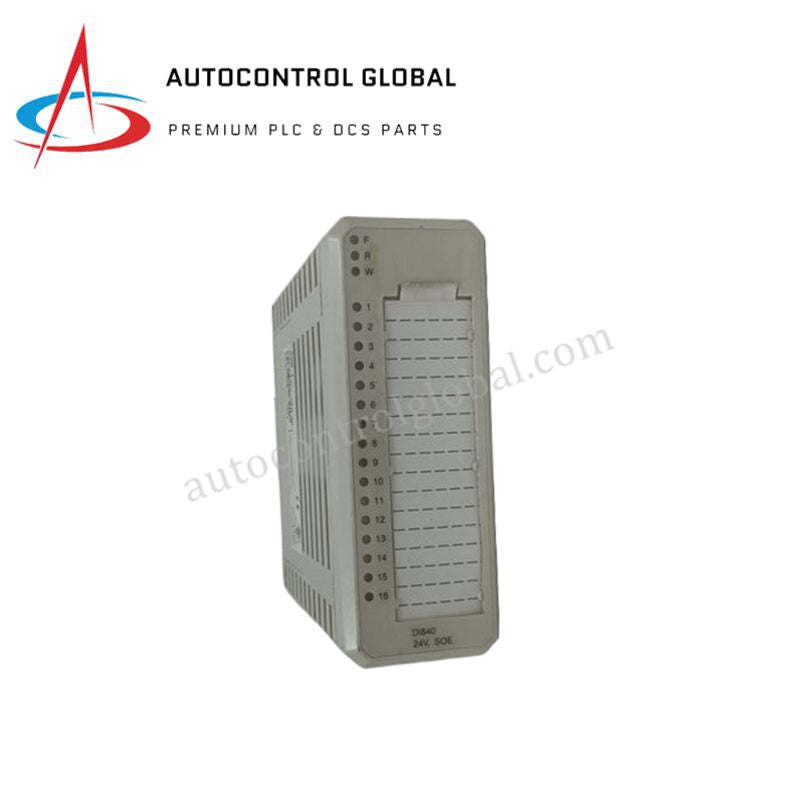

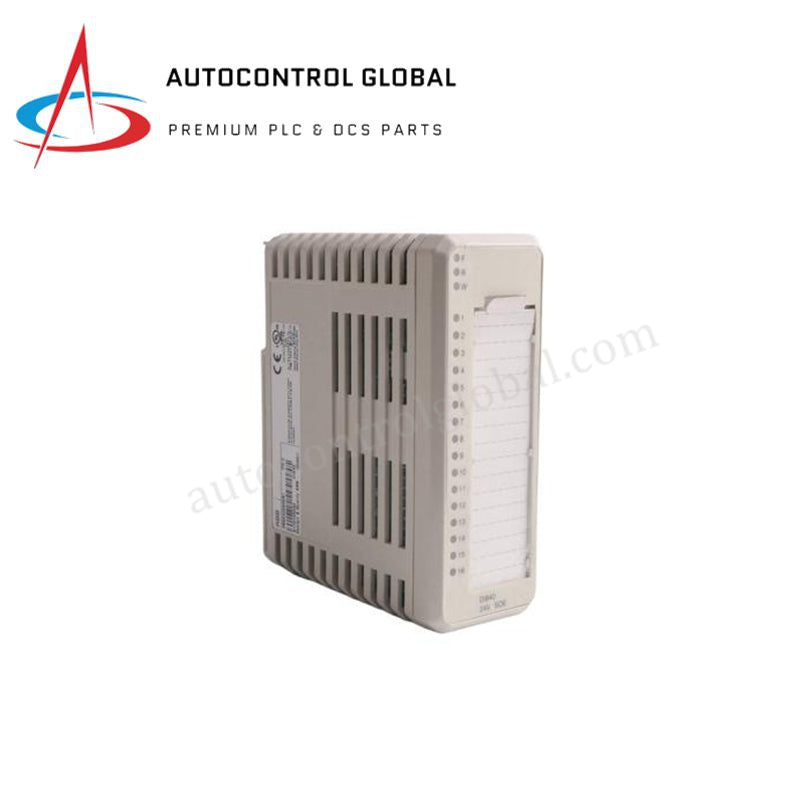

ABB DI840 3BSE020836R1 16-Channel Redundant Digital Input

Product Overview

The ABB DI840 (3BSE020836R1) functions as a high-density, 16-channel digital input interface for the ABB S800 I/O system. This 100% brand new, original module supports both single and redundant configurations, making it a critical component for high-availability process automation. It collects signals from field devices such as limit switches, pushbuttons, and proximity sensors, converting 24V DC current-sinking inputs into digital data for the controller. With integrated diagnostics for open and short circuits, the DI840 ensures superior monitoring accuracy for System 800xA, Symphony Plus, and Freelance architectures.

Technical Specifications

The DI840 utilizes 3.3 kΩ input impedance to maintain signal stability while minimizing heat generation within the I/O rack.

Engineering Advantages

The ABB DI840 3BSE020836R1 resolves critical uptime and signal integrity challenges in industrial environments:

• Native Redundancy Support: The DI840 allows for redundant pairing. If one module fails, the secondary module maintains the input signal flow without interrupting the process, ensuring zero downtime for critical monitoring loops.

• Advanced Field Diagnostics: This module detects open-circuit and short-circuit conditions in the field wiring. By reporting these faults directly to the DCS, the DI840 eliminates manual cable testing and allows maintenance crews to locate wiring issues immediately.

• Robust Signal Acquisition: Featuring groupwise isolation from ground and high-quality EMI/RFI shielding, the DI840 rejects electrical noise common in heavy industrial zones. This protection ensures that voltage spikes on the field side do not corrupt the data on the ModuleBus.

• Space-Efficient Design: Providing 16 isolated channels in a compact 4.5 cm wide housing maximizes cabinet density. This helps engineers reduce the overall enclosure size or add more I/O points to existing racks without requiring mechanical expansion.

FAQs

• Can I use the DI840 as a non-redundant, single module?

  Yes. The DI840 functions perfectly as a standard single digital input module. However, its primary advantage is its ability to be paired in a redundant configuration for mission-critical applications.

• What type of Module Termination Unit (MTU) is required?

  The DI840 integrates with standard S800 I/O termination units. For redundant applications, you must use an MTU specifically designed for redundant modules to ensure proper bus connection and signal distribution.

• Does this module support "Sequence of Events" (SOE) recording?

  The DI840 captures digital state changes with high precision. When used with a compatible controller and SOE-enabled firmware, it helps reconstruct the exact timeline of events during a system trip or fault.

• How does the current-sinking input work?

  In a current-sinking configuration, the field device (like a switch) connects the input terminal to the 24V DC positive supply. The DI840 then "sinks" this current to ground to complete the circuit and detect the "ON" state.
