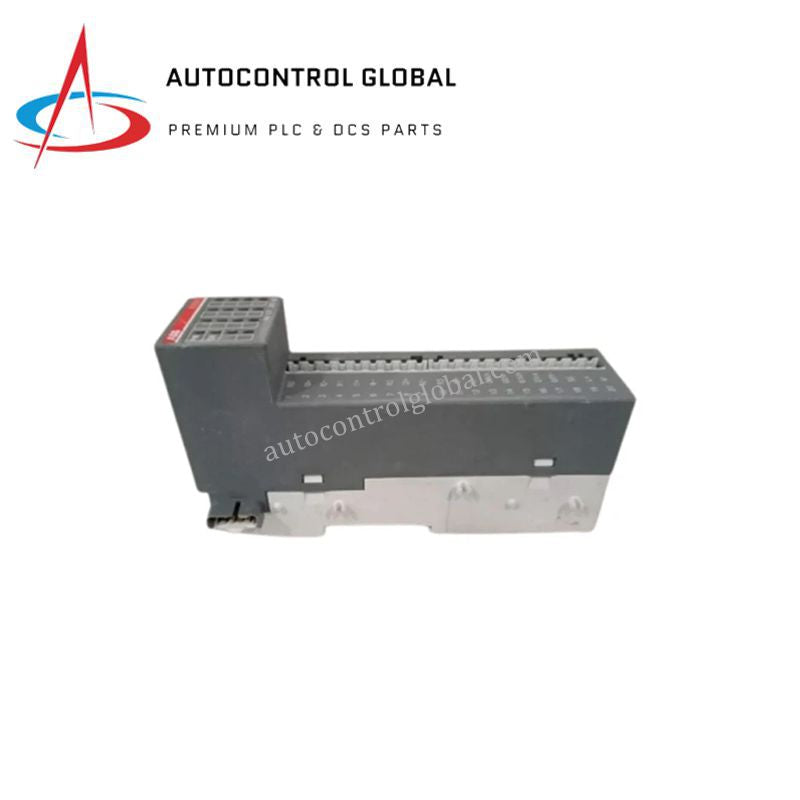

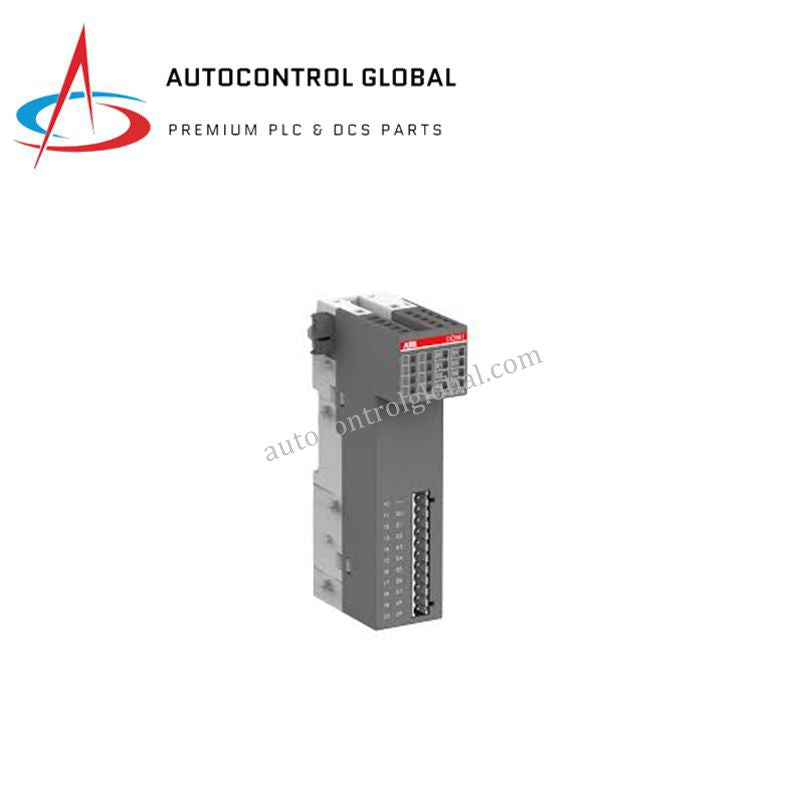

ABB DO561 | Digital Output Module AC500-eCo S500-eCo
Manufacturer: ABB
-
Part Number: 1TNE968902R2201 DO561
Condition：New with Original Package
Product Type: Digital Output Module AC500-eCo S500-eCo
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Description
The ABB DO561, product ID 1TNE968902R2201, is a compact digital output module designed for ABB’s AC500-eCo and S500-eCo I/O systems. It provides 8 transistor outputs, each delivering 24 V DC at 0.5 A, suitable for controlling actuators, relays, and other field devices in industrial automation applications.
Its pluggable connectors simplify installation and maintenance, while the module supports reliable switching performance over a broad operating temperature range. The slim profile and IP20 protection rating make it ideal for space-constrained control cabinets, and it integrates seamlessly with CI854 communication cards in distributed control systems.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | DO561 |
| Product ID | 1TNE968902R2201 |
| System Compatibility | AC500-eCo, S500-eCo I/O |
| Digital Outputs | 8 channels |
| Output Type | Transistor |
| Output Voltage | 24 V DC |
| Output Current | 0.5 A per channel |
| Voltage Range | 20.4 V to 28.8 V DC |
| Connection Type | Pluggable |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | –40°C to +70°C |
| Dimensions (W × H × D) | 34 mm × 74 mm × 135 mm |
| Net Weight | 0.118 kg |
| Gross Weight | 0.22 kg |
| Country of Origin | China, Germany, Finland |
| Application Areas | Distributed automation, turbine control, real-time monitoring systems |
FAQ
Q1: How many outputs does the ABB DO561 support?
A1: The DO561 provides 8 transistor outputs, each rated at 24 V DC, 0.5 A.
Q2: What systems are compatible with this module?
A2: It is compatible with AC500-eCo and S500-eCo I/O systems.
Q3: Can it be used in compact control cabinets?
A3: Yes, its slim design and IP20 protection make it ideal for space-limited installations.
Q4: Is this module RoHS compliant?
A4: Yes, the ABB DO561 is fully compliant with RoHS standards.
Q5: What is the minimum order quantity?
A5: The minimum order quantity is 1 piece.
