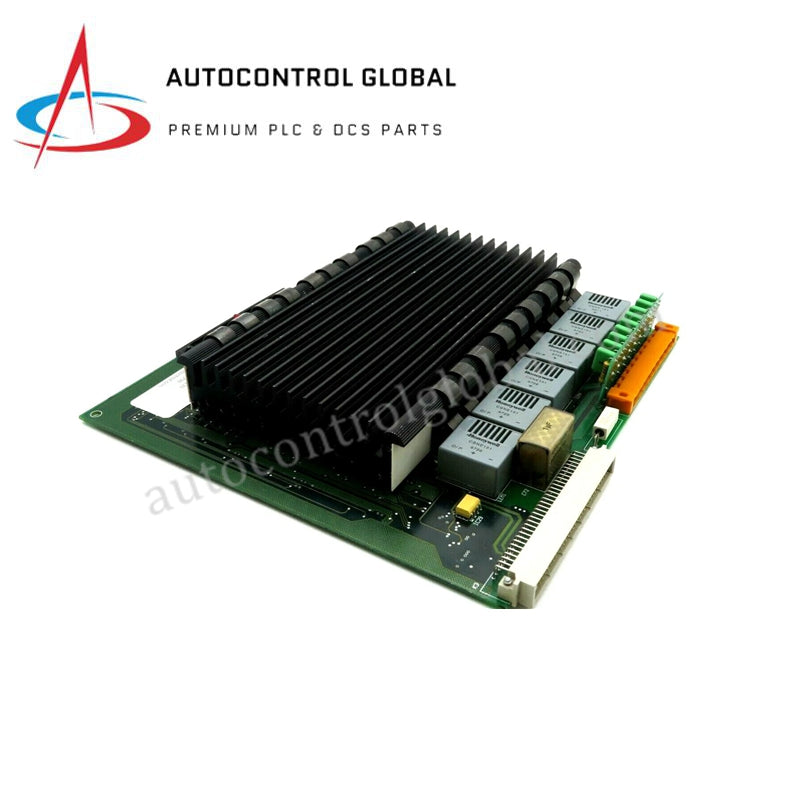

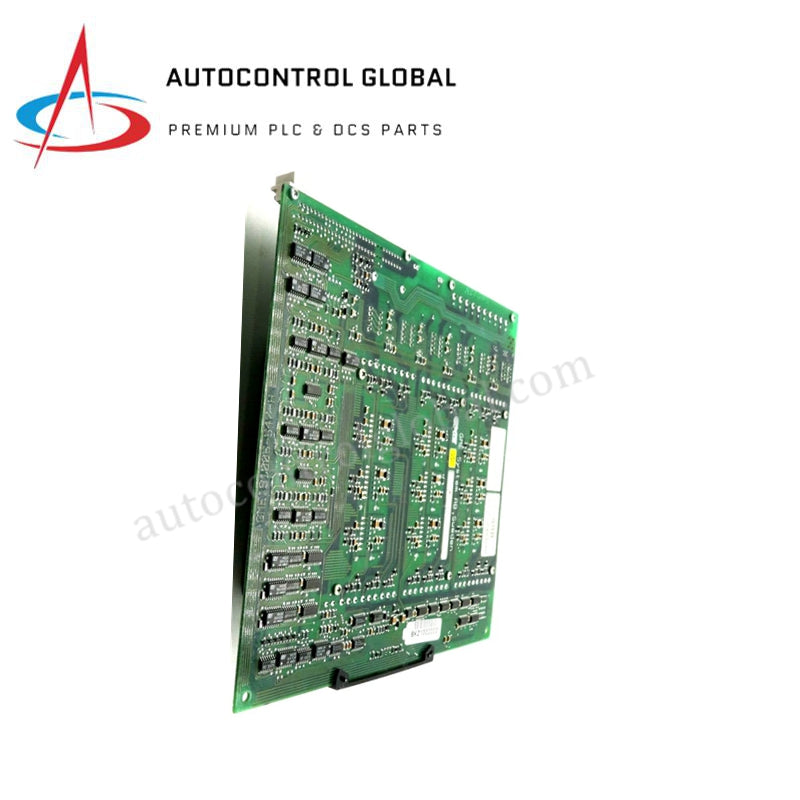

ABB DSQC236D I/O Board 3HAB2207-1 for Robot S4C S4C+

Product Description

Robust Interface for Legacy Robot Control Systems

The DSQC236D (Part Number: 3HAB2207-1) is a high-reliability digital input/output module specifically engineered for the ABB S4C and S4C+ robot controller families. Serving as a critical bridge between the robot’s central processor and the physical workcell, this board facilitates the control of peripheral equipment such as high-current actuators and pneumatic solenoids. Unlike standard electronic output boards, the DSQC236D (3HAB2207-1) features relay-based outputs, providing physical isolation and a higher current switching capacity required for industrial-grade automation environments.

Detailed Technical Specifications

The DSQC236D is designed for the rigorous duty cycles of heavy manufacturing, offering high-density signal management within a compact form factor.

• Manufacturer: ABB Robotics

• Model Designation: DSQC236D

• Part Number: 3HAB2207-1

• Controller Compatibility: ABB S4C and S4C+ Systems

• Total Channel Count: 32 Channels

• Digital Inputs: 16 Channels (24 VDC standard industrial logic)

• Digital Outputs: 16 Channels (Relay-based, normally open contacts)

• Switching Capacity: Up to 2 A per output channel (Inductive/Resistive loads)

• Isolation: Optical isolation for inputs and mechanical relay isolation for outputs

• Diagnostics: Individual LED status indicators for every I/O channel

• Operating Temperature: -20 °C to +55 °C

• Storage Temperature: -40 °C to +85 °C

• Dimensions: 220 mm × 100 mm × 25 mm

• Mounting: Standard controller rack slot or DIN rail installation

• Country of Origin: Sweden
