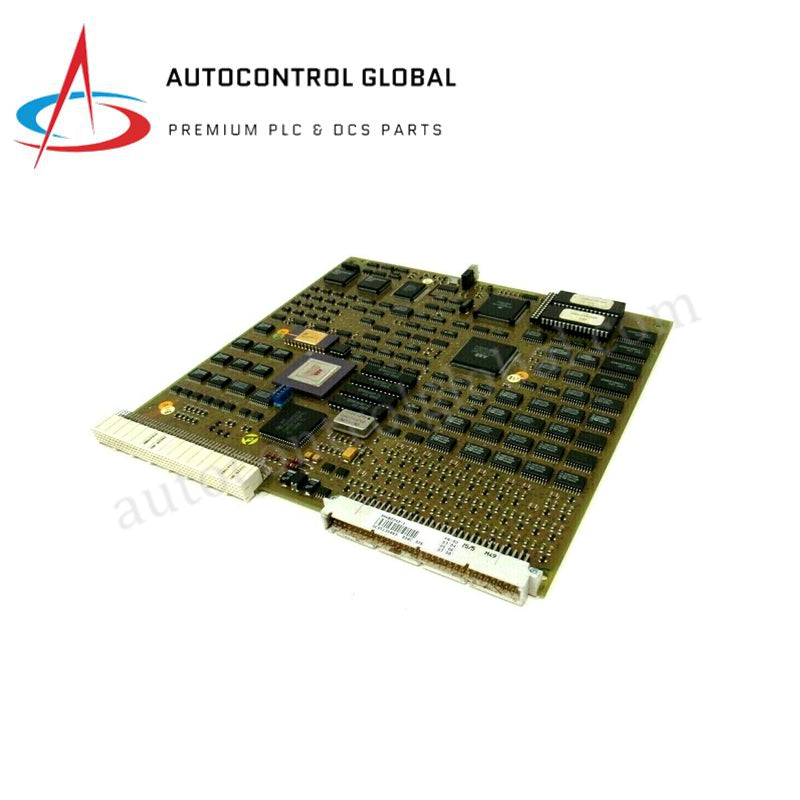

ABB DSQC326 (3HAB2242-1) S4C Robot Control Interface Board

Product Description

The DSQC326 (Part Number: 3HAB2242-1) is a high-performance CPU interface and robot control board specifically engineered for ABB S4C and S4C+ robotic controller systems. Acting as a critical communication node, the DSQC326 (3HAB2242-1) facilitates the high-speed processing of digital and analog signals between the robot's central processing unit and external peripheral equipment. This board ensures deterministic logic execution, which is vital for the precision path following and sub-millimeter accuracy required in modern industrial automation.

Designed to operate within the specialized bus architecture of the S4C series, the DSQC326 (Model: DSQC326) handles real-time data synchronization for motion control and I/O feedback. Its industrial-grade construction is optimized for the electrical noise and thermal variations found in factory floor cabinets. As a legacy component, the DSQC326 (3HAB2242-1) is a primary solution for maintaining the operational uptime of existing robotic installations in automotive assembly, material handling, and foundry applications.

Detailed Technical Specifications

The DSQC326 (3HAB2242-1) is built to rigorous robotics standards:

• Manufacturer: ABB Robotics

• Model Number: DSQC326 (DSQC326)

• Product ID: 3HAB2242-1 (3HAB2242-1)

• Hardware Revision: PR.07 (or specific batch version)

• Function: CPU Interface / Robot Control Board

• System Compatibility: ABB S4C and S4C+ Controllers

• Power Supply: 24V DC (Integrated via backplane)

• Signal Capacity: Support for both Digital and Analog I/O channels

• Mounting: Internal Controller Slot / Modular Rack Integrated

• Protection Rating: IP20 (Enclosure required)

• Product Dimensions: 25.4 cm x 2.5 cm x 25.4 cm (Standard Module)

• Net Weight: 0.4 kg

• Tariff Code: 85389000 (formerly 8537109060)

• Country of Origin: Sweden
