ABB DX571 | Digital I/O Module 8DI/8DO for S500-eCo PLCs
Manufacturer: ABB
-
Part Number: 1TNE968902R2302 DX571
Condition：New with Original Package
Product Type: Digital I/O Module 8DI/8DO for S500-eCo PLCs
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months

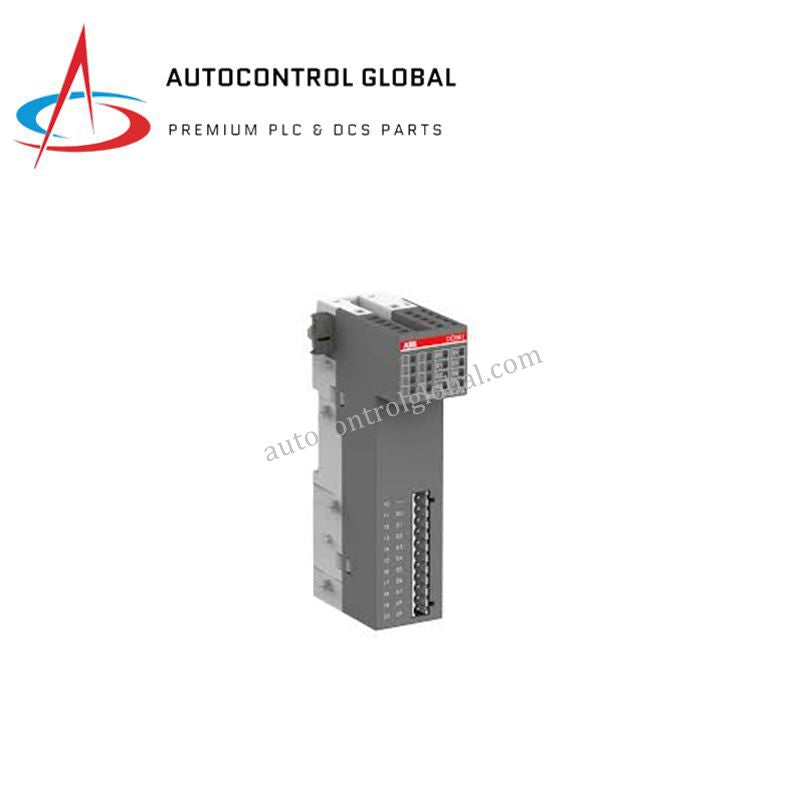

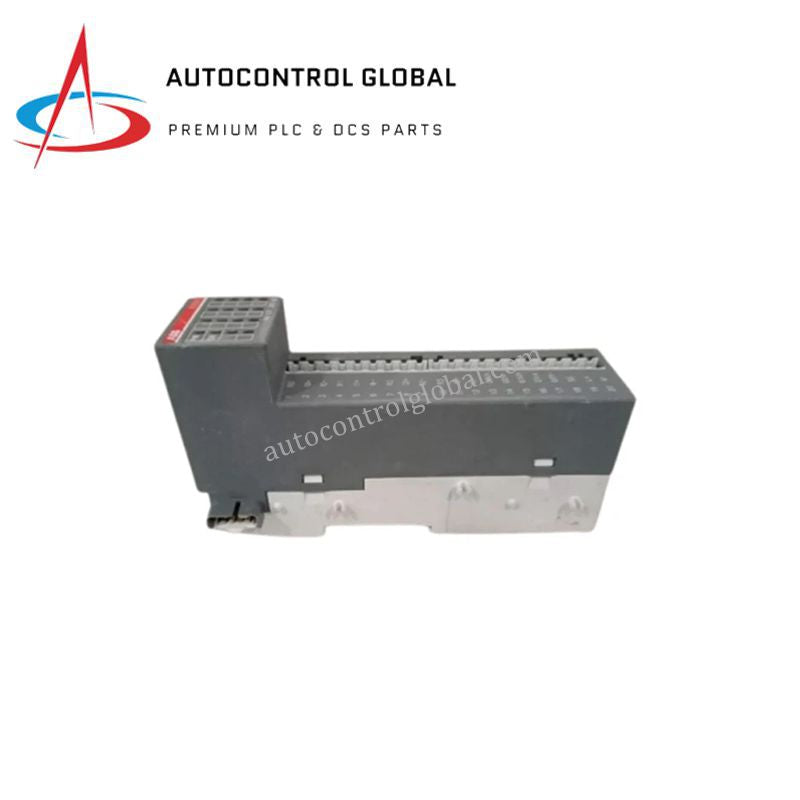

ABB DX571 Digital Input/Output Module
Overview
The ABB DX571 (1TNE968902R2302) is a compact digital I/O module for ABB S500-eCo series PLCs.
It provides 8 digital inputs (sink/source, 24 VDC) and 8 relay outputs (120–240 VAC, 2 A), offering flexible interface options for field devices.
The module supports 1-wire communication and pluggable connections, simplifying installation, wiring, and maintenance.
Its DIN rail mounting ensures compatibility with standard industrial control panels.
The lightweight and compact design makes it ideal for space-constrained PLC applications.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | DX571 |
| Part Number | 1TNE968902R2302 |
| Product Type | Digital Input/Output Module |
| Digital Inputs (DI) | 8 channels, sink/source, 24 VDC |
| Digital Outputs (DO) | 8 relay outputs, 120–240 VAC, 2 A |
| Communication | 1-wire |
| Mounting | DIN rail |
| Dimensions (W × H × D) | 34 × 74 × 135 mm |
| Net Weight | 0.14 kg |
| Gross Weight | 0.242 kg |
| Country of Origin | China, Germany, or Finland |
| Minimum Order Quantity | 1 piece |
| Application Areas | Industrial automation, PLC systems, process control |
FAQs
Q1: How many digital inputs and outputs does the DX571 support?
✅ The ABB DX571 supports 8 digital inputs and 8 relay outputs.
Q2: What voltage levels are compatible with its inputs and outputs?
✅ Digital inputs operate at 24 VDC, and relay outputs handle 120–240 VAC, 2 A.
Q3: How is the module mounted?
✅ It is mounted on a DIN rail, suitable for industrial control panels.
Q4: Does it support any communication protocols?
✅ Yes, the module supports 1-wire communication for easy integration.
Q5: Is the DX571 suitable for compact installations?
✅ Yes, its lightweight (0.14 kg) and compact dimensions fit space-limited PLC setups.
