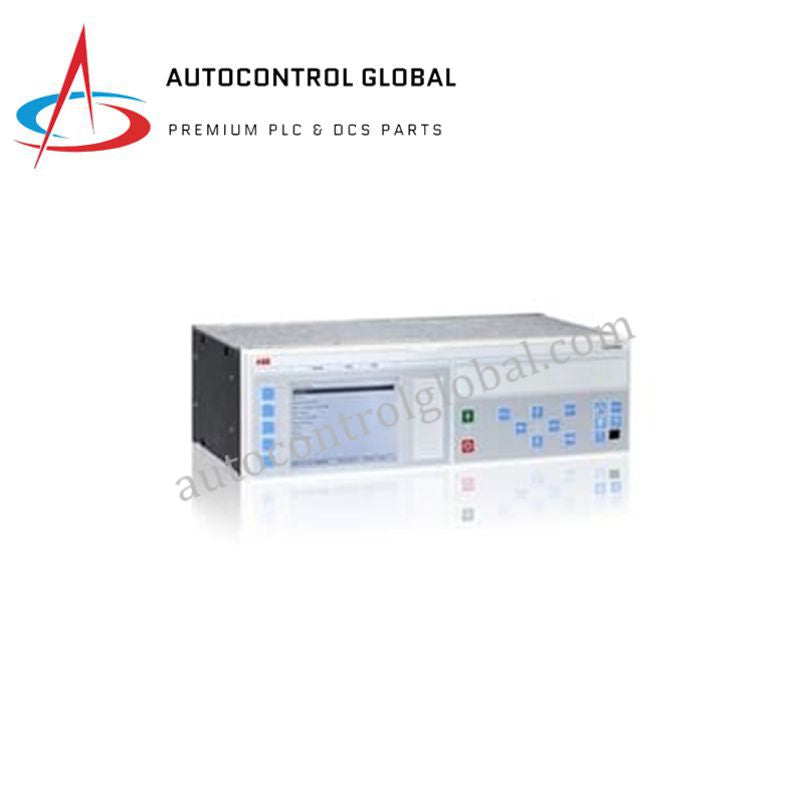

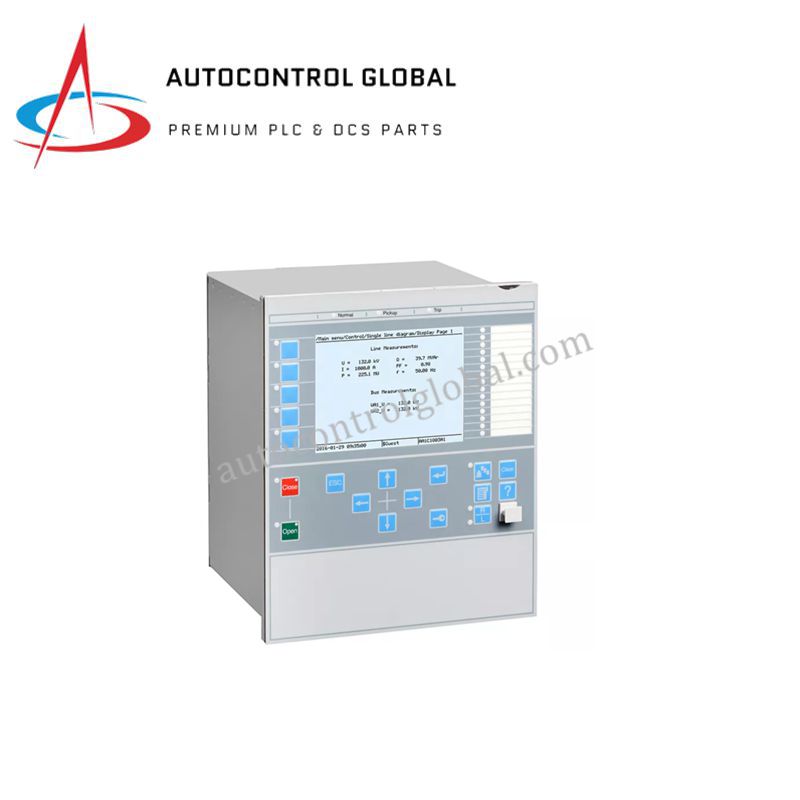

ABB HMI-IED670 1MRK000008-MBr02 | RET670 Bay Control Display
Manufacturer: ABB
-
Part Number: 1MRK000008-MBr02
Condition：New with Original Package
Product Type: RET670 Bay Control Display
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
ABB 1MRK000008-MBr02 HMI-IED670 Display Module
Overview
The ABB 1MRK000008-MBr02 is a display module from the RET670 series, functioning as a Human-Machine Interface (HMI) for ABB protection and control systems. It enables real-time monitoring, parameter configuration, and operational control for power system devices.
Designed for industrial, substation, and marine applications, this module delivers reliable performance under harsh conditions. Its high-resolution graphical interface supports ANSI symbols, touch input, and keyboard interaction for intuitive operation.
The unit integrates with ABB systems via Ethernet and serial ports, supporting Modbus and IEC 61850 protocols for flexible connectivity.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | 1MRK000008-MBr02 |
| Series | RET670 |
| Product Type | Display Module / Bay Control Display |
| Display Type | High-resolution graphical display with ANSI symbols |
| Display Size | ¾ × 19 inch |
| Resolution | 670 × 480 pixels |
| Input Methods | Touchscreen, Keyboard |
| Communication Interfaces | Ethernet, Serial ports |
| Supported Protocols | Modbus, IEC 61850 |
| Input Voltage | 24 V DC |
| Dimensions (W × H × D) | 12 cm × 8 cm × 9 cm |
| Weight | 0.45–1.58 kg |
| Operating Environment | Industrial and marine, harsh conditions |
| Certifications | IEC 60945 (marine use) |
| Country of Origin | Switzerland or Sweden |
FAQs
Q1: Which protocols are supported by ABB 1MRK000008-MBr02?
✅ It supports Modbus and IEC 61850, ensuring seamless integration with RET670 devices.
Q2: What is the display resolution and size?
✅ The module features 670 × 480 pixels on a ¾ × 19-inch high-resolution display.
Q3: How is the HMI operated?
✅ Operation is via touchscreen and keyboard, providing flexible user interaction.
Q4: What environments is it suitable for?
✅ Designed for industrial, substation, and marine applications, supporting harsh conditions.
