ABB INICT01 | Industrial Communication Interface Module 24V DC
Manufacturer: ABB
-
Part Number: INICT01
Condition：New with Original Package
Product Type: Industrial Communication Interface Module 24V DC
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The ABB INICT01 is a communication interface module designed for the Bailey INFI 90 Distributed Control System (DCS). It connects the INFI-Net network with external computer systems to ensure reliable data transfer and integration across control environments.
Built for industrial automation, the INICT01 supports multiple communication protocols such as RS-232, providing flexibility for a wide range of applications in power generation, petrochemical plants, and process industries.

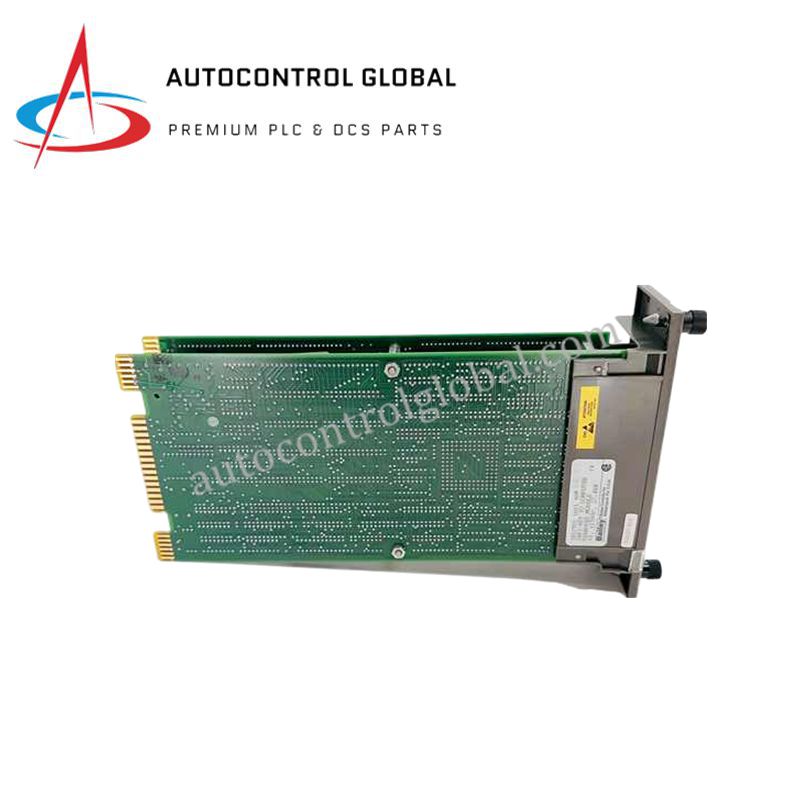

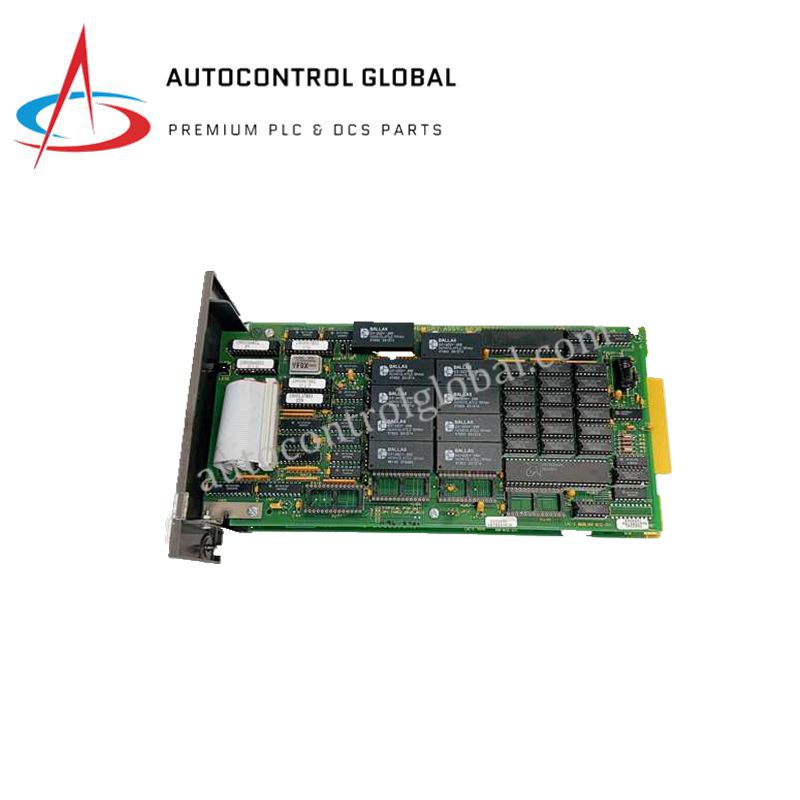

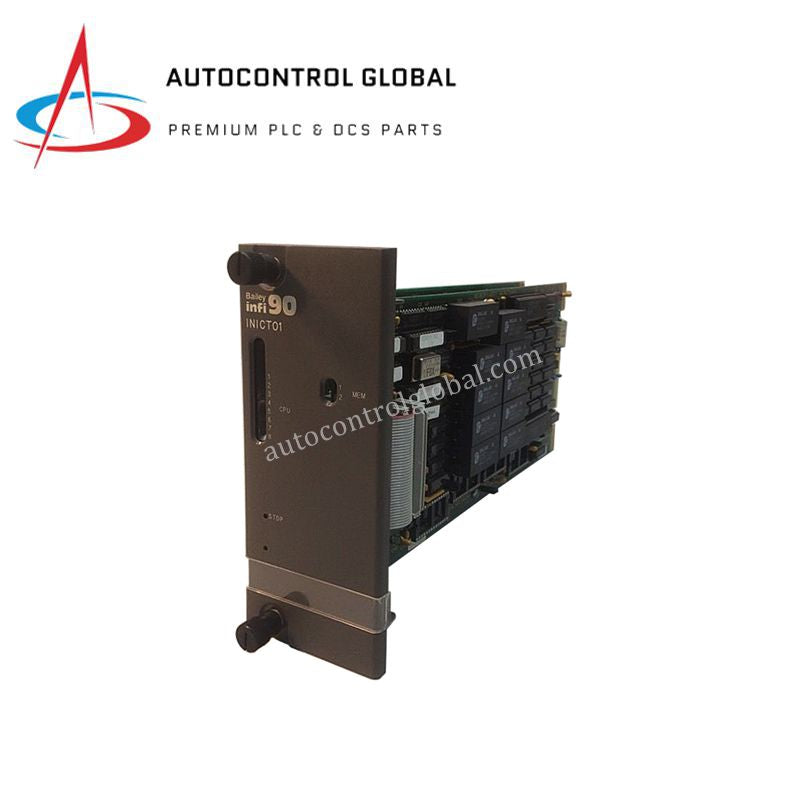

The INICT01 features a modular structure consisting of a CPU board and a memory board, allowing quick configuration and maintenance. Its front panel LED indicators display module and communication status, simplifying troubleshooting and system diagnostics.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | INICT01 |
| Function | Infi-Net Computer Transfer Module |
| System Compatibility | Bailey INFI 90 Distributed Control System |
| Input Voltage | 24 V DC |
| Input Current | Max 5 mA |
| Data Transfer Rate | Up to 19.2 kbps |
| Communication Protocols | RS-232 and other supported serial types |
| Operating Temperature | –20 °C to +60 °C |
| Protection Rating | IP20 |
| Dimensions (L × W × H) | 70 × 37 × 20 mm |
| Weight | Approx. 120 g |
| Structure | CPU board with DIP switches, memory board |
| Front Panel Features | Status LEDs, stop button, memory status indicators |
| Application Areas | Industrial automation, process control, data acquisition systems |
| Part Number | INICT01 |
| Shipping Weight | 3 kg |
FAQ
Q1: What is the primary function of the ABB INICT01?
A1: The INICT01 acts as a communication interface between the INFI-Net network and external computers, ensuring smooth data exchange.
Q2: What protocols does the INICT01 support?
A2: It supports RS-232 and additional serial communication standards used in industrial systems.
Q3: What is the input voltage and current for this module?
A3: The INICT01 operates at 24 V DC with a maximum current of 5 mA.
Q4: How heavy is the ABB INICT01?
A4: The module weighs approximately 120 g, with a shipping weight of around 3 kg including packaging.
Q5: Is the ABB INICT01 new and original?
A5: Yes, all units are brand-new, factory-sealed original ABB products.
