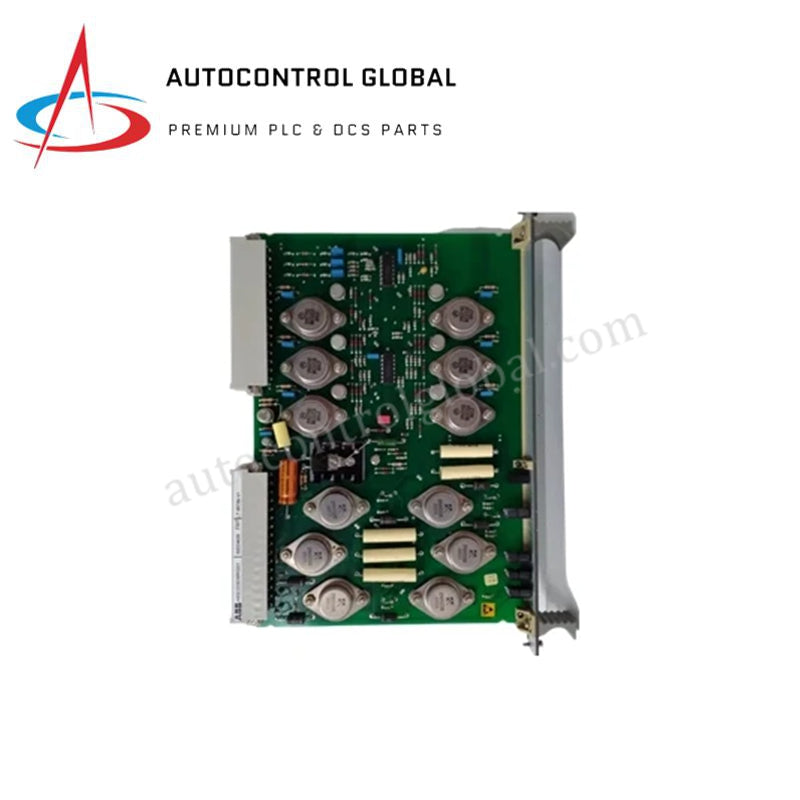

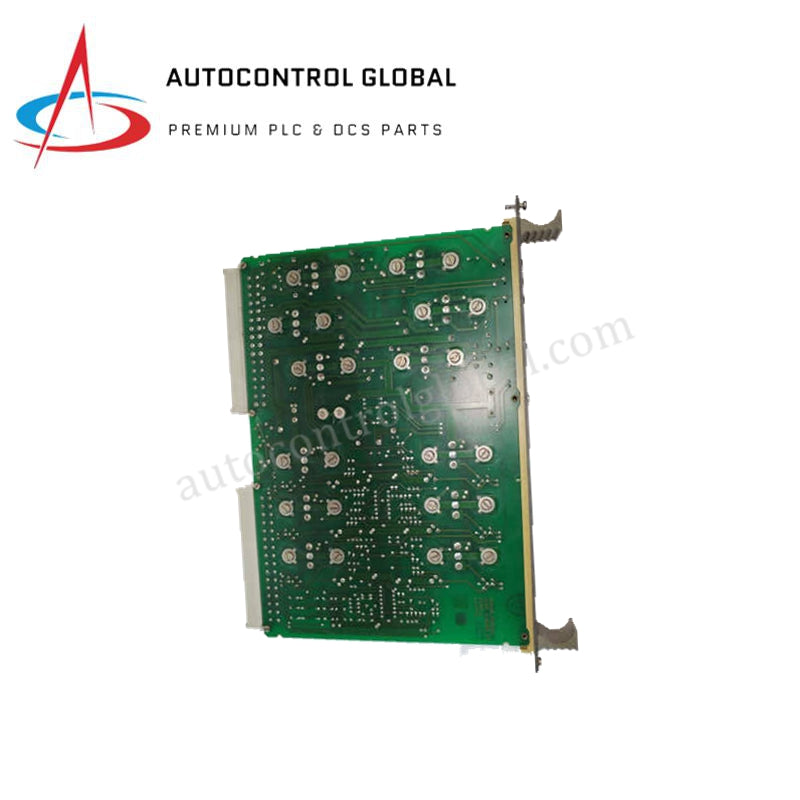

ABB LT8978BV1 HIEE320639R0001 Analog I/O Card
Manufacturer: ABB
-
Part Number: LT8978BV1 HIEE320639R0001
Condition：New with Original Package
Product Type: Analog Input/Output Modules
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
ABB LT8978BV1 HIEE320639R0001 Analog I/O Module
Configured for precise acquisition, processing, and output of analog signals in ABB control systems, the ABB LT8978BV1 HIEE320639R0001 (LT8978BV1 Analog I/O Module) provides direct physical/electrical execution. The unit handles signal conversion between standard field instrumentation interfaces and internal processing buses, stabilizing measurement values across dynamic industrial control loops.
Suffix Breakdown & Model Matrix
| Part Number | Base Model | Subsystem Configuration |
|---|---|---|
| HIEE320639R0001 | LT8978BV1 | Dual-channel analog input/output interface card |
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | LT8978BV1 HIEE320639R0001 |
| Brand | ABB |
| Origin | Switzerland |
| Weight | 0.16 kg |
| Dimensions | 26.5 mm x 20.5 mm x 10 mm |
| Operating Temp | Standard industrial profile |
| Power Consumption | System backplane powered |
| Signal Types Supported | 4-20 mA, 0-10 VDC |
| Conversion Mode | Analog-to-Digital and Digital-to-Analog |
| Mounting Format | Panel mount or rack installation |
Backplane Bus Communication & I/O Density Scaling
The LT8978BV1 HIEE320639R0001 integrates into the controller backplane architecture to provide high-velocity data throughput while scaling localized I/O density. Dedicated signal conditioning circuits suppress high-frequency line interference, maintaining deterministic update rates for cyclic loop routines. Compatibility with standard onboard firmware flash profiles ensures system synchronicity across rack extensions, preventing data corruption during multi-channel sampling execution.
Frequently Asked Questions
Q: Does inserting the LT8978BV1 HIEE320639R0001 module require complete system power isolation?
A: Yes, host backplane power must be isolated prior to seating or removing the card to prevent voltage spikes across the edge connector contacts.
Q: How does the module handle signal scaling for 4-20 mA loops versus 0-10 VDC inputs?
A: Channel configuration settings and internal processing logic map the incoming physical currents or voltages directly into standard digital register ranges for control software access.
Q: What grounding procedure prevents measurement offset errors on 0-10 VDC channels?
A: Common-mode signal reference lines must share a unified grounding point at the system terminal block to prevent ground potential loops from distorting voltage conversion accuracy.
Field Installation Guidelines
Verify that all system power sources are deactivated before placing the LT8978BV1 HIEE320639R0001 into its mounting slot. Align the board edges strictly with the panel or chassis guide rails to avoid physical stress on the terminal connectors. Ensure a minimum engagement depth during insertion to establish proper contact pressure against the backplane.
Run 4-20 mA current loops and 0-10 VDC signal conductors in dedicated low-voltage instrument conduits separated from high-current motor power cables by at least 200 mm. Shielded twisted-pair wiring is required for all analog IO channels. Ground signal wire shields at a single point on the control cabinet earth terminal to block electro-magnetic interference. Maintain clean air channels around the module enclosure to allow uninhibited thermal dissipation.
