ABB NTU-715 SM9-3055.051.00 INFI 90 Digital Input Unit
Manufacturer: ABB
-
Part Number: NTU-715 SM9-3055.051.00
Condition：New with Original Package
Product Type: Termination Units
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months

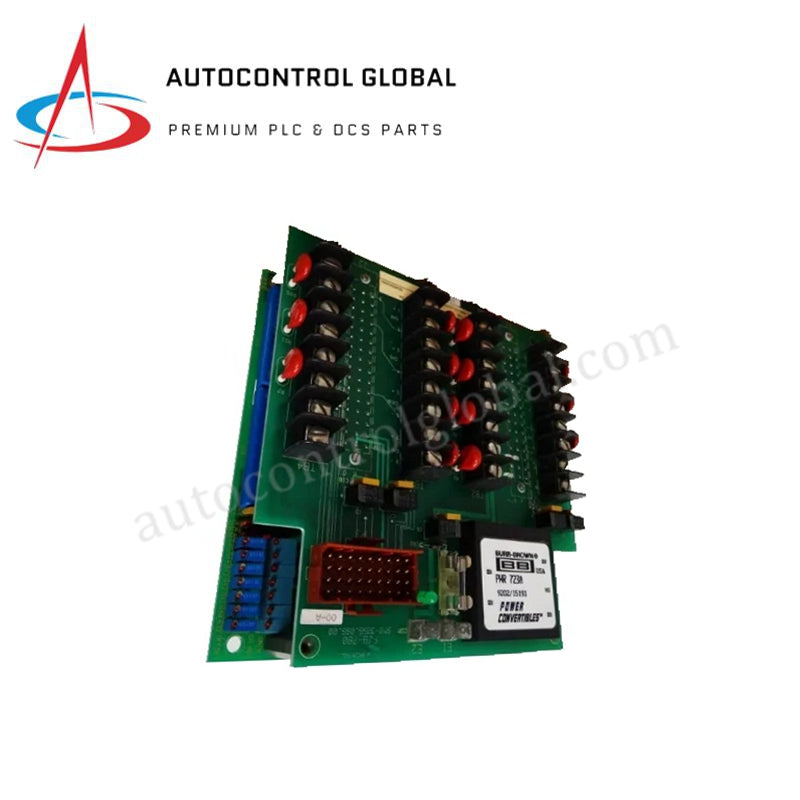

ABB NTU-715 SM9-3055.051.00 Digital Input Termination Module
The ABB NTU-715 (part number SM9-3055.051.00) is a Digital Input Termination Module (DITM) engineered for the ABB Bailey INFI 90 Distributed Control System (DCS). It serves as a field-wiring termination interface, connecting discrete digital signals from switches, sensors, and push buttons to IMDSI or IMDSI02 digital input modules for processing by the central controller.
Signal Termination and Interfacing
The unit provides organized signal routing and electrical termination for binary digital input channels at a nominal 24 V DC voltage level. Designed as a passive board to minimize power load on the backplane, it offers an organized layout that simplifies field wiring and system troubleshooting across control cabinets.
Network Communication and Physical Specifications
Equipped with Ethernet and RS485 communication interfaces, the module features 256 KB of memory to support status logging and system integration. Designed for rack mounting inside system enclosures, it measures 250 mm x 120 mm x 35 mm, weighs 0.82 kg, and operates across a temperature range of -40 to +70 deg C with CE compliance.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | NTU-715 |
| Brand | ABB Bailey |
| Part Number | SM9-3055.051.00 |
| Product Type | Digital Input Termination Module |
| System Compatibility | ABB Bailey INFI 90 DCS |
| Compatible I/O Modules | IMDSI, IMDSI02 Digital Input Modules |
| Digital Inputs | 16 binary input channels |
| Nominal Input Voltage | 24 V DC |
| Communication Interfaces | Ethernet, RS485 |
| Onboard Memory | 256 KB |
| Mounting Type | Rack-mounted |
| Operating Temperature | -40 to +70 deg C |
| Dimensions (L x W x H) | 250 mm x 120 mm x 35 mm |
| Weight | 0.82 kg |
| Certifications | CE |
Frequently Asked Questions
Q: What is the primary function of the ABB NTU-715 termination module? A: It provides field-wiring termination and signal routing for discrete digital inputs, interfacing field devices with IMDSI and IMDSI02 input modules in the INFI 90 DCS.
Q: What communication interfaces are integrated into the NTU-715? A: The module includes Ethernet and RS485 interfaces to facilitate data communication within the control system architecture.
