ABB PM864K01 AC 800M Processor Module Technical Datasheet
Manufacturer: ABB
-
Part Number: PM864K01 3BSE018150R1
Condition：New with Original Package
Product Type: CPU Processors
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months

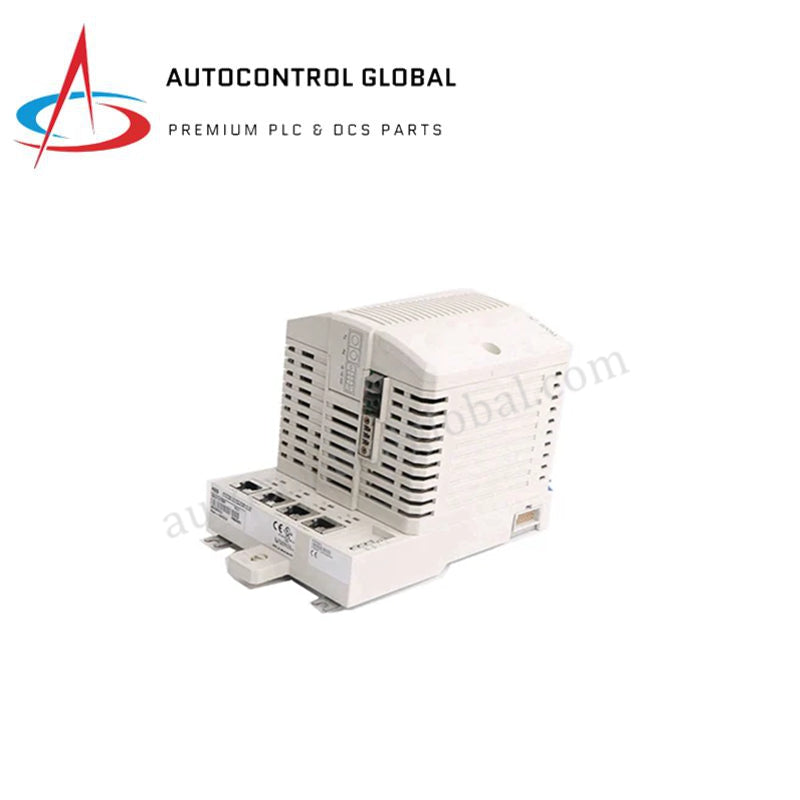

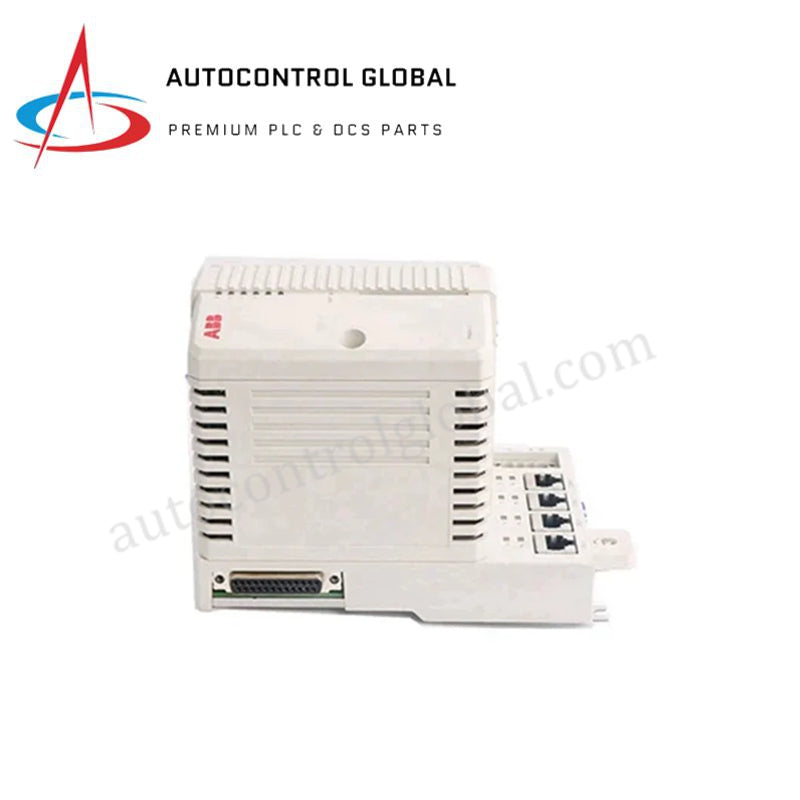

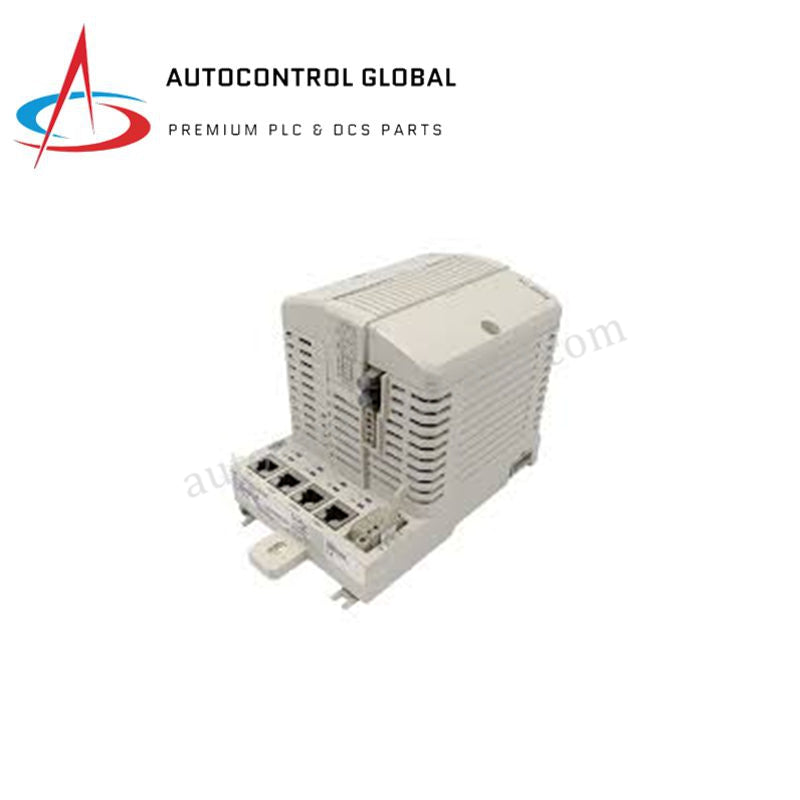

ABB PM864K01 Processor Module
Configured for deterministic control logic execution in System 800xA network platforms, the ABB PM864K01 (PM864K01 Processor Module) provides direct physical and electrical processing of complex control applications.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | PM864K01 (3BSE018150R1) |
| Brand | ABB |
| Origin | China |
| Weight | 1.1 kg |
| Dimensions | 112.5 x 108 x 99 mm |
| Operating Temp | -20 deg C to +60 deg C |
| Power Consumption | 12 W |
| Power Supply | 24 VDC (+/- 10%) |
| MTBF | > 500,000 hours |
Industrial Control and Firmware Compatibility
The PM864K01 utilizes high-performance RISC architecture to maintain deterministic execution of control tasks across the AC 800M backplane bus. Firmware flash compatibility is managed through the 800xA engineering environment. To ensure system stability, verify that the module firmware version is compatible with existing controller cabinet configurations before deployment. The module supports Profinet and EtherNet/IP deterministic networks, ensuring precise I/O data synchronization. Users must ensure that redundant pairs are synchronized to prevent data mismatches during active operation.
Frequently Asked Questions
Q: Does the PM864K01 support hot-swapping?
A: Yes, hot-swapping is supported when the module is deployed in a redundant pair. Ensure the redundant standby CPU is fully synchronized and in the 'Ready' state before extracting the primary module.
Q: Are there specific storage requirements for the included lithium battery?
A: Yes, the module contains a portable lithium battery (9 g) for memory backup. Store the unit in a dry environment between -40 deg C and +85 deg C to prevent premature battery degradation.
Field Installation Guidelines
- Mounting: Secure the module to the designated AC 800M rail. Ensure the slide-and-lock mechanism is fully engaged to provide a stable connection to the backplane bus.
- Grounding: Bond the module chassis to the cabinet earth bus. Use shielded communication cables for Ethernet and RS-232 interfaces to prevent electromagnetic interference.
- Wiring: Route 24 VDC power supply lines independently of communication cabling. Maintain proper separation to minimize induction-related noise on the PROFIBUS and Modbus TCP links.
- Environment: Operate within the 5-95% RH (non-condensing) range. Ensure the ventilation path is clear to allow for passive cooling of the internal circuitry.
