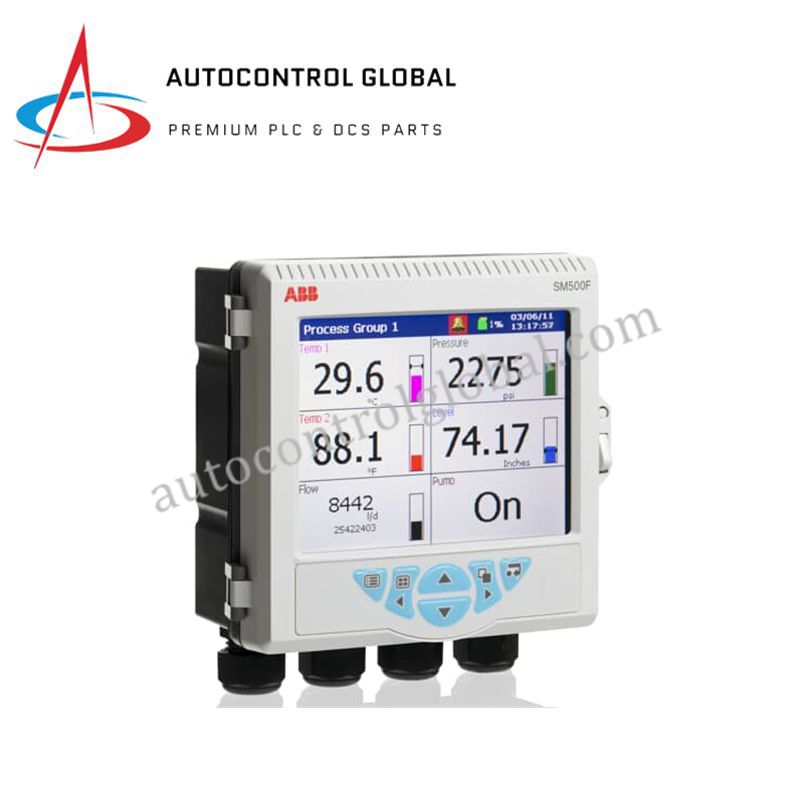

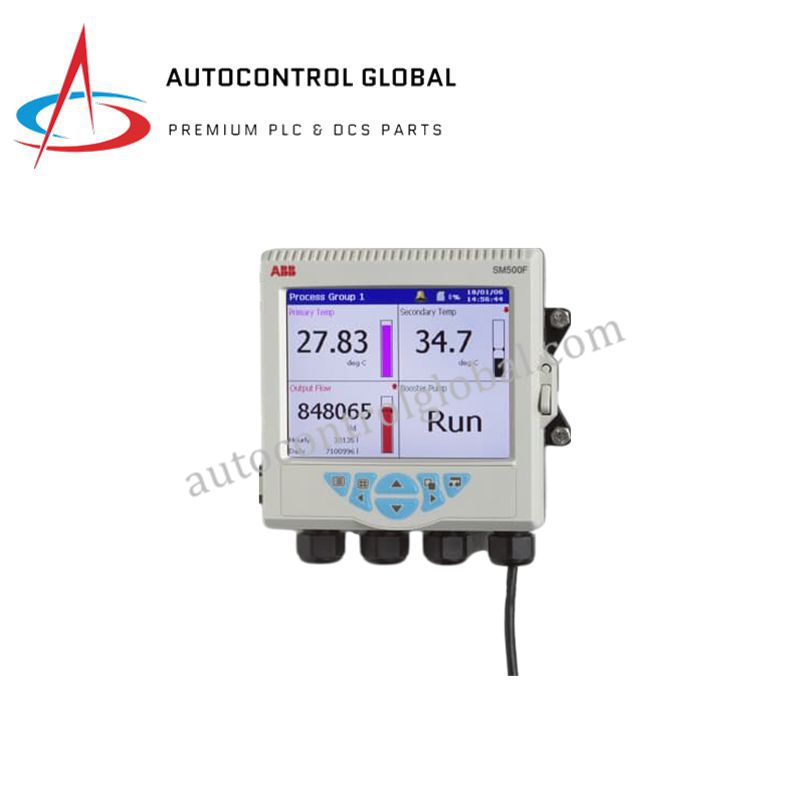

ABB SM500F | Rugged Field Paperless Recorder IP66/NEMA 4X
Manufacturer: ABB
-
Part Number: SM500F SM501FC/B0E0021E/STD
Condition：New with Original Package
Product Type: Rugged Field Paperless Recorder IP66/NEMA 4X
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
ABB SM500F SM501FC/B0E0021E/STD Field-Mount Paperless Recorder
The ABB SM500F SM501FC/B0E0021E/STD is a high-performance paperless data recorder engineered for industrial process monitoring and secure data logging. Its rugged, fully sealed enclosure ensures reliable operation in harsh environments, while the high-resolution color touchscreen provides intuitive navigation and real-time data visualization.
Technical Specifications
| Feature | Description |
|---|---|
| Model | SM500F SM501FC/B0E0021E/STD |
| Type | Field-Mount Paperless Recorder |
| Mounting Options | Wall, pipe, or panel mounting (universal capability) |
| Display | High-resolution color touchscreen for easy operation |
| Enclosure Rating | IP66 (dust-tight, protected against powerful water jets) NEMA 4X (corrosion-resistant, hose-down capable) |
| Input Channels | Multiple universal inputs (thermocouples, RTDs, voltage, current) |
| Data Storage | Internal flash memory with optional external USB memory support |
| Communication Interfaces | Ethernet, USB, RS-485 (optional), MODBUS RTU/TCP |
| Power Supply | 100–240 V AC or 24 V DC (configuration dependent) |
| Operating Temperature | –20°C to +60°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Regulatory Compliance | FDA 21 CFR Part 11, CE, UL, RoHS |
| Security Features | Password protection, audit trails, electronic signatures |
| Software Support | ABB DataManager Pro for configuration and analysis |
| Weight | 2–3 kg |
