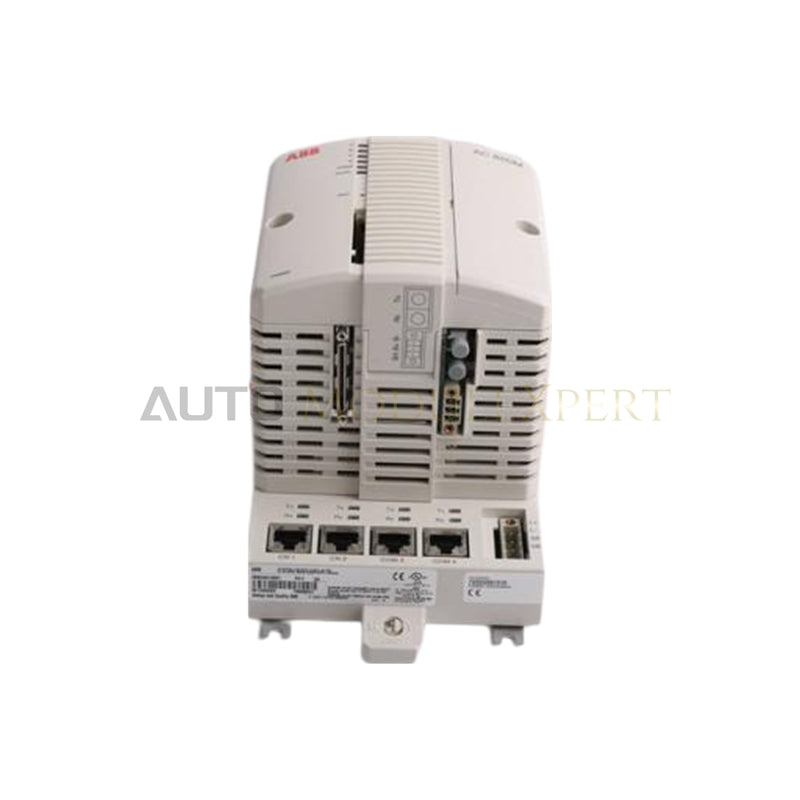

ABB TK802F 3BDM000213R1 PLC Module with Supply Cable
Manufacturer: ABB
-
Part Number: TK802F
Condition：New with Original Package
Product Type: Control Modules
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
ABB TK802F Industrial Control Module
The ABB TK802F (Part Number: 3BDM000213R1) is an industrial control module designed for automation architectures. Powered by an ARM Cortex-A8 600 MHz processor running Windows Embedded Compact 7, it executes local control tasks and system communications. This unit includes a 2-meter 24 V DC supply cable fitted with ferrules to streamline power connection during setup.
Technical Specifications and System Parameters
The module handles expandable digital input/output channels alongside analog signals such as 4-20 mA and 0-10 V. It supports industrial communication protocols including Modbus, EtherNet/IP, and PROFIBUS-DP for integration with distributed control systems.
| Parameter | Specification |
|---|---|
| Model | TK802F |
| Brand | ABB |
| Part Number | 3BDM000213R1 |
| Product Type | Industrial Control Module (PLC) |
| Processor | ARM Cortex-A8, 600 MHz |
| Operating System | Windows Embedded Compact 7 |
| Power Supply | 24 V DC (rack-powered) with included 2 m supply cable |
| Digital I/O | Expandable up to 16 DI/DO channels |
| Analog I/O | Supports 4-20 mA / 0-10 V signals |
| Communication Protocols | Modbus, EtherNet/IP, PROFIBUS-DP |
| Operating Temperature | -10 deg C to +60 deg C |
| Humidity Tolerance | 5%-95% RH, non-condensing |
| Protection Rating | IP20 |
| Dimensions (L x W x H) | 175 mm x 175 mm x 175 mm |
| Net Weight | 0.5 kg to 1 kg |
Environmental and Mounting Features
Built within an IP20-rated enclosure, the module is designed for deployment inside standard industrial control cabinets. It operates reliably across an ambient temperature range of -10 deg C to +60 deg C and handles humidity levels up to 95% non-condensing.
Frequently Asked Questions
Q: What processor and operating system does the ABB TK802F utilize? A: It features an ARM Cortex-A8 600 MHz processor running Windows Embedded Compact 7.
Q: What accessories are included with this unit? A: The module is supplied with a 2-meter 24 V DC power supply cable equipped with terminal ferrules.
Q: Which communication protocols are compatible with this module? A: It supports Modbus, EtherNet/IP, and PROFIBUS-DP network protocols.
