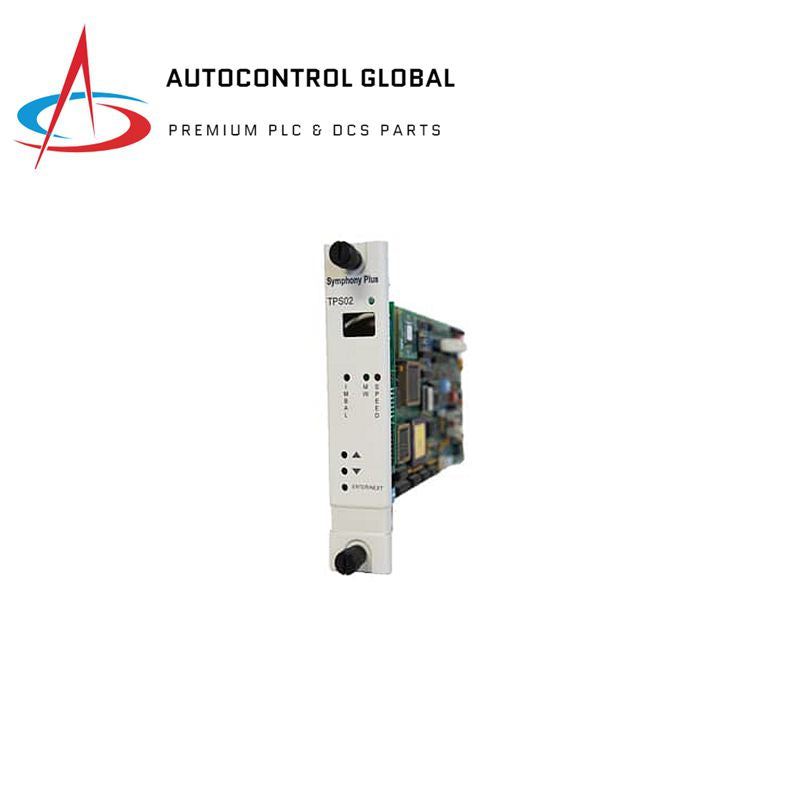

ABB TPSTU02 Turbine Protection Module

Key Features and Specifications

• Channels: 4 high-speed analog input channels
• Input Types:
  • Voltage: -10 V to +10 V, 0 V to +10 V
  • Current: -20 mA to +20 mA, 0 mA to +20 mA
• Accuracy: 0.2% of full scale
• Resolution: 12 bits
• Update Rate: 2.5 ms
• Isolation: 2500 V RMS to protect against electrical noise
• Power Supply: 24 VDC
• Operating Temperature: -20 °C to +60 °C
• Applications: Temperature, pressure, flow, level, position, and vibration measurement
• Origin: Switzerland (CH)
• Unit Price: USD 2000
• Dimensions: 8.0" x 2.0" x 6.0" (20.3 cm x 5.1 cm x 15.2 cm)
• Weight: 0.4 kg
