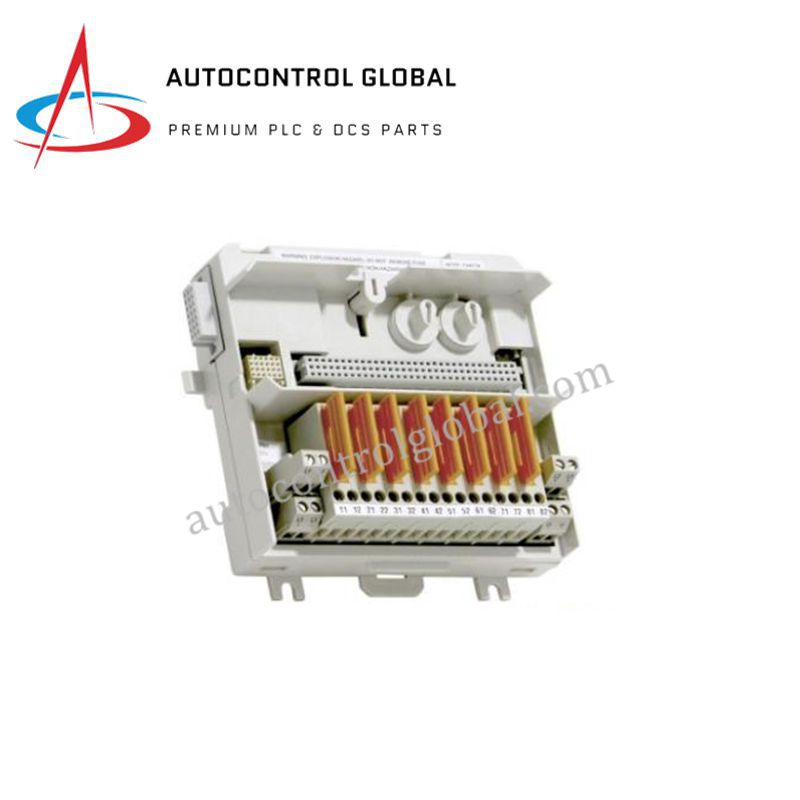

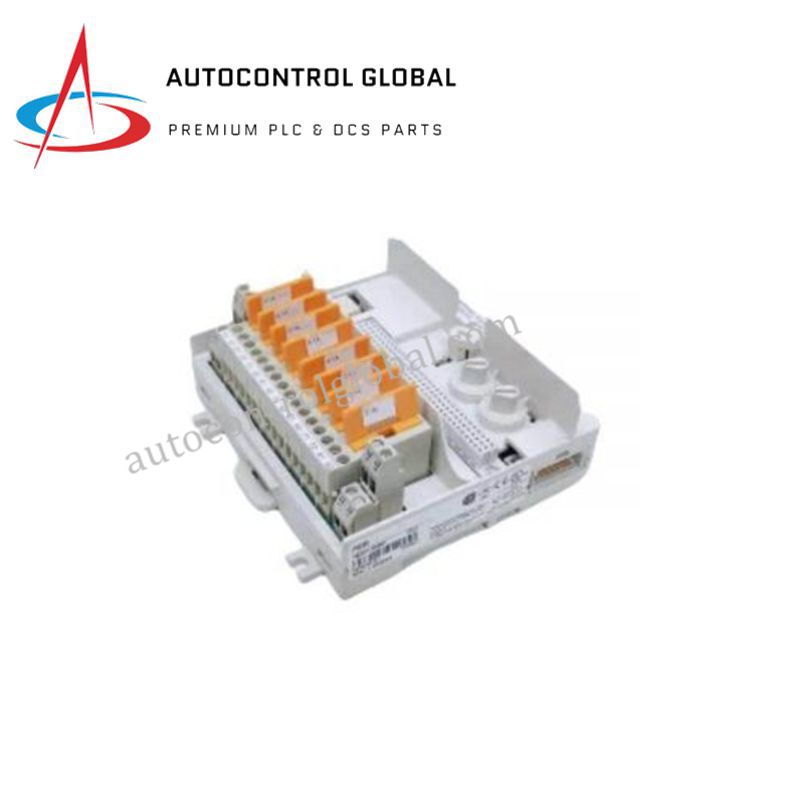

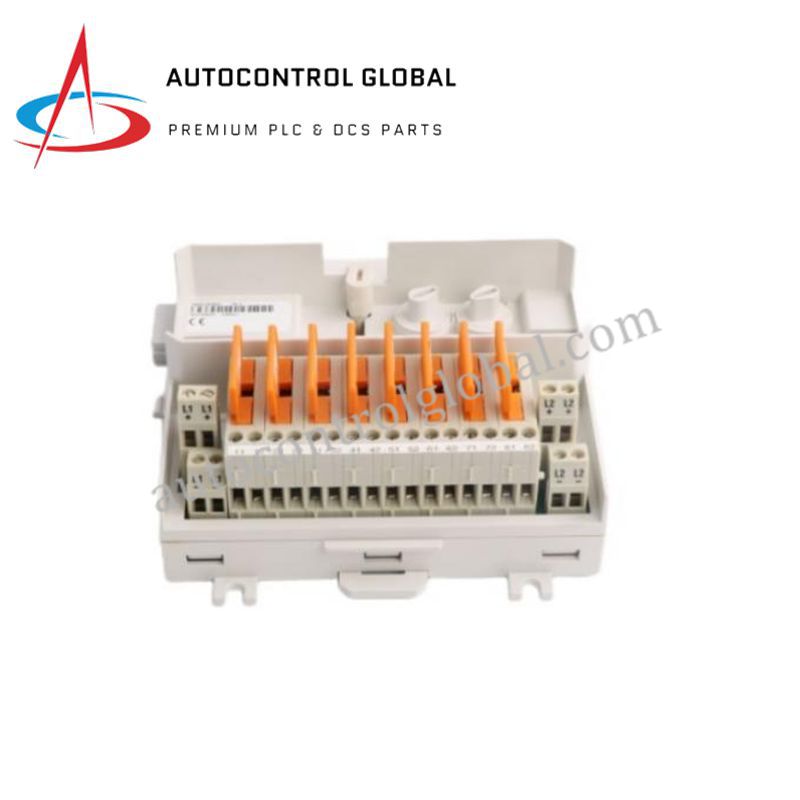

ABB TU836V1 3BSE013237R1 | Termination Unit for Redundant I/O
Manufacturer: ABB
-
Part Number: TU836V1 3BSE013237R1
Condition：New with Original Package
Product Type: Termination Unit for Redundant I/O
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Description
The ABB TU836V1 (part number 3BSE013237R1) is a Compact Termination Unit (TU) designed for ABB’s System 800xA / S800 I/O family. It serves as the physical interface between field wiring and I/O modules, ensuring secure and reliable signal transmission. The TU836V1 is built for redundant I/O configurations, enhancing system availability and reliability in critical applications, especially where high uptime is essential.
This unit supports up to 8 I/O channels, with a maximum rated voltage of 250 V and a current of 3 A per channel. It distributes the ModuleBus to the I/O modules and to other MTUs in the network, ensuring that the correct address is assigned to each I/O module by shifting the position signals. The DIN-rail mounted design allows for easy installation in cabinets or control panels, making it ideal for industrial automation and distributed control systems (DCS).
Technical Specifications
| Attribute | Specification |
|---|---|
| Model | TU836V1 |
| Part Number | 3BSE013237R1 |
| Type | Compact Termination Unit |
| System Compatibility | ABB System 800xA / S800 I/O |
| Functions | Provides wiring interface and module mounting |
| Redundancy Support | Yes – supports redundant I/O configurations |
| Power Supply | From I/O module backplane |
| Maximum Rated Voltage | 250 V |
| Maximum Rated Current | 3 A per channel |
| Number of Channels | Up to 8 |
| Dimensions (W × H × D) | 120 × 80 × 25 mm |
| Weight | 0.2 kg |
| Mounting | DIN-rail |
| Operating Temperature | –20 °C to +55 °C |
| Storage Temperature | –40 °C to +85 °C |
| Protection Class | IP20 |
| Country of Origin | Sweden / Switzerland |
| Application Areas | Industrial automation, redundant control systems |
FAQ
Q: What is the main function of the ABB TU836V1?
A: The ABB TU836V1 serves as a termination unit that provides secure electrical connections and wiring interfaces for ABB S800 I/O systems.
Q: How many I/O channels does the TU836V1 support?
A: The TU836V1 supports up to 8 I/O channels, making it suitable for various industrial automation applications.
Q: Can the TU836V1 be used in a redundant I/O system?
A: Yes, the TU836V1 supports redundant I/O configurations, ensuring high availability and reliable system performance.
Q: What is the maximum rated voltage of the TU836V1?
A: The TU836V1 has a maximum rated voltage of 250 V and can handle up to 3 A per channel.
Q: How is the TU836V1 mounted?
A: The TU836V1 is DIN-rail mounted, ensuring easy installation in control cabinets or panels.
