Product Overview

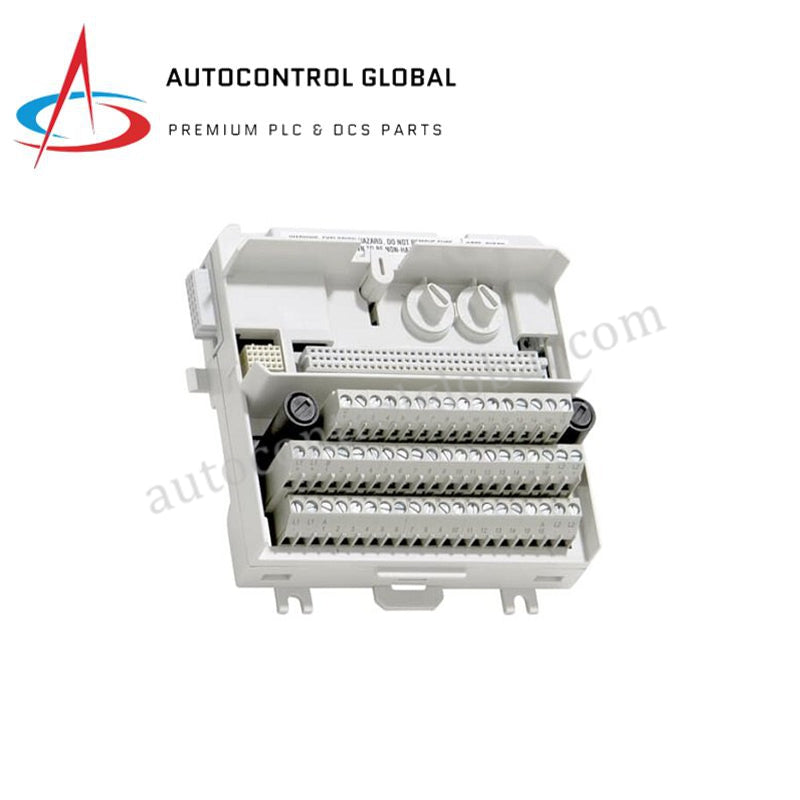

The ABB TU844 (product ID 3BSE021445R1) is a high-integrity, 100% brand new original Redundant Module Termination Unit (MTU) engineered for the ABB S800 I/O system framework. This industrial-grade terminal base hosts up to 8 I/O channels alongside integrated process voltage distribution lines. The unit establishes direct physical and electrical staging for dual, fully redundant I/O modules, routing twin ModuleBus data paths simultaneously to safeguard automated control loops. By separating fragile electronic signal processing from rigorous field wiring junctions, the unit provides a robust termination platform that maintains constant process uptime across distributed control installations.

Technical Specifications

The mechanical and electrical architecture routes high-speed data bus paths and field voltage distribution lines natively across the backplane structure. All technical parameters utilize standard ASCII text formatting:

• Product Identification Number: 3BSE021445R1

• Hardware Model Nomenclature: TU844

• Primary Function: Redundant Module Termination Unit (MTU) baseplate

• Total Supported I/O Channels: Up to 8 independent channels

• Process Voltage Distribution Connections: 2 + 2 power connection points

• Per-Channel Wiring Allocation: 2 x individual I/O connections and 1 x ZP (Zero Potential) connection

• Signal Conditioning Interface: Accepts individual TY801 shunt sticks for hardware input selection

• Maximum Rated Input Voltage: 50 V DC

• Maximum Rated Safe Passage Current: 2 A per individual channel

• Data Bus Integration: Distributes two distinct ModuleBuses (one per active I/O module and onward to downstream MTUs)

• Hardware Addressing Mechanism: Automatic generation via outgoing position signal shifting to adjacent MTU links

• Mechanical Coding Framework: 4 x physical coding keys (2 per I/O module slot) providing 36 distinct mechanical combinations

• Physical Mounting Configuration: Standard industrial DIN-rail mounting with an integrated mechanical locking latch

• Physical Condition: Brand New and Original in Factory Packing

Engineering Advantages

The TU844 3BSE021445R1 resolves critical physical configuration, signal flexibility, and data routing limitations in complex control cabinet builds:

• Streamlines Signal Flexibility with TY801 Shunt Sticks: Traditional termination panels require distinct hardware models or complex rewiring to switch a channel from a voltage input to a current input. The TU844 utilizes individual TY801 shunt sticks on a per-channel basis. Technicians select between voltage and current input modes instantly by inserting or removing the shunt stick, reducing component inventory and saving cabinet engineering hours.

• Eliminates Manual I/O Station Addressing Errors: Setting dip-switches or manual address dials across dozens of sequential terminal bases introduces human errors that lead to communication configuration failures during commissioning. The TU844 automatically generates the precise hardware address for the attached I/O modules by physically shifting the outgoing position signals before passing the data link to the next downstream MTU block.

• Secures Physical Mounts Against Heavy Vibration: Constant machinery vibration inside factory enclosures can loosen standard terminal bases, causing data drops or mechanical sagging. The TU844 features a rugged mechanical latch that firmly locks the entire MTU chassis to standard DIN rails. This structural anchor maintains connection integrity even when thick, heavy field wiring cables exert downward leverage on the terminal strip.

• Prevents Incorrect Module Insertion via Mechanical Keying: Inserting a high-voltage digital module into a slot configured for a low-voltage analog instrument can destroy sensitive processor cards. The TU844 integrates four mechanical keys (two for each I/O module slot) featuring six position adjustments. This setup yields 36 unique mechanical physical barriers, allowing engineers to physically code the baseplate slots so only the correct I/O module type can physically slide in and seat.

FAQs

• Q: Is this ABB TU844 3BSE021445R1 baseplate a factory-original item?A: Yes. We supply this product strictly as a 100% brand new, authentic original factory component. It ships directly in its original factory packing and includes a full 12-month factory warranty to fulfill rigorous corporate engineering procurement standards.

• Q: How do the mechanical coding keys affect the digital functionality of the I/O modules?A: The four mechanical keys provide a purely physical configuration safety barrier. They do not alter the electronic circuit logic, processing firmware, or data transmission functionality of either the TU844 termination unit or the paired S800 I/O modules.

• Q: Does this termination unit distribute power and data to adjacent bases?A: Yes. The TU844 handles dual ModuleBus distribution paths natively. It splits the internal network bus, routing one stream to each of the two local onboard redundant I/O modules while simultaneously passing the primary bus lines to the next sequential MTU in the control rack loop.

• Q: What is the purpose of the 2+2 process voltage connections?A: The 2+2 power connection array allows clean distribution of external process loop power across the terminal base, ensuring clean field instrument power pathways without having to jump external terminal blocks or run separate power distribution rails inside the enclosure.
