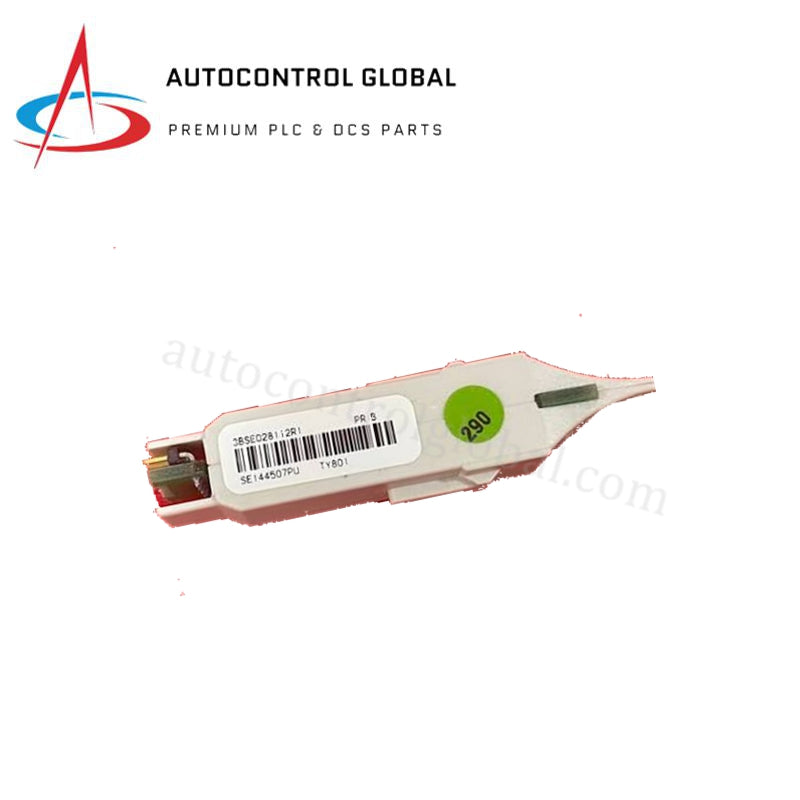

ABB TY801 3BSE028112R1 S800 I/O Current Shunt Board
Manufacturer: ABB
-
Part Number: TY801 3BSE028112R1
Condition：New with Original Package
Product Type: Shunt Boards
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
ABB TY801 3BSE028112R1 S800 I/O Shunt Board
The ABB TY801 (Part Number: 3BSE028112R1) is a compact current shunt board designed for the ABB S800 I/O system. Featuring dual 125 ohm precision resistors, it facilitates precise current-to-voltage signal conversion for analog input processing. The board mounts directly onto compatible S800 termination units to support high-accuracy current signal measurement in process control networks.
Hardware Compatibility and Mounting
The TY801 operates in conjunction with S800 analog input modules, specifically the AI845 and AI880. Field installation requires mounting on designated module termination units, such as the TU844 or TU845. Its compact form factor allows direct integration into the I/O base without occupying additional enclosure rack space.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | TY801 |
| Brand | ABB |
| Part Number | 3BSE028112R1 |
| Product Type | Shunt Board |
| System Compatibility | ABB S800 I/O System |
| Shunt Resistance | 125 + 125 ohm |
| Compatible Analog Input Modules | AI845, AI880 |
| Compatible Termination Units | TU844, TU845 |
| Dimensions | 62 mm x 15.5 mm x 11 mm |
| Net Weight | 0.06 kg |
| RoHS Compliance | Directive 2011/65/EU |
| WEEE Category | Category 5 (Small Equipment) |
| Country of Origin | Sweden |
| Customs Tariff Number | 8533210000 |
Frequently Asked Questions
Q: Which analog input modules and termination units require the ABB TY801 shunt board? A: It is designed for use with AI845 and AI880 analog input modules and mounts on TU844 or TU845 termination units.
Q: What is the primary functional specification of the resistors on the TY801? A: The board provides dual 125 ohm shunt resistors for precise current measurement and signal conversion.
