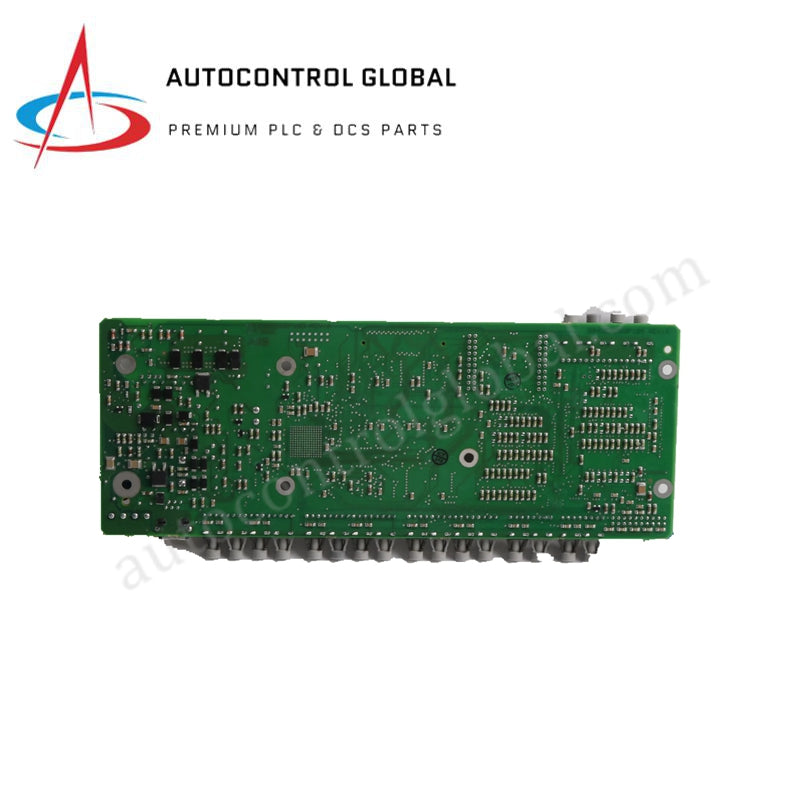

ABB UFC760BE41 Advant OCS Signal Processing Board
Manufacturer: ABB
-
Part Number: 3BHE004573R0041
Condition：New with Original Package
Product Type: Interface Boards
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
ABB UFC760BE41 Advant OCS Interface Board
The UFC760BE41 (part number 3BHE004573R0041) is a signal processing and communication interface board manufactured by ABB for Advant OCS and industrial DCS platforms. It bridges field devices, including load cells, with central control units. Operating on a 24 VDC power supply, the module provides multi-channel analog and digital I/O processing along with serial and Ethernet networking features.
I/O Channels and Communication Interfaces
The board features 2 or 4 analog input channels specifically tailored for load cell signals, paired with 4 configurable analog output channels capable of driving voltage or current loops. Discrete field interface capacity includes 8 digital inputs and 8 digital outputs. Additionally, an auxiliary +24 VDC power output supplies up to 0.5 A to connected external field units.
Network connectivity is established through two RS-232 serial ports and an IEEE 802.3/802.3u compliant Ethernet interface using store-and-forward switching technology. This dual-interface architecture supports continuous data exchange between controller racks and local device networks.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | UFC760BE41 |
| Brand | ABB |
| Part Number | 3BHE004573R0041 |
| Series | Advant OCS |
| Product Type | Interface Board |
| Power Supply | 24 VDC |
| External Power Output | +24 VDC (max 0.5 A) |
| Analog Inputs | 2 or 4 channels for load cell signals |
| Analog Outputs | 4 channels (voltage or current) |
| Digital Inputs | 8 channels |
| Digital Outputs | 8 channels |
| Serial Interfaces | 2 x RS-232 ports |
| Ethernet Interface | IEEE 802.3 / 802.3u compliant |
| Switching Method | Store-and-forward |
| Dimensions (L x W x H) | 160 x 110 x 50 mm |
| Weight | 0.34 kg |
| Country of Origin | Germany |
Frequently Asked Questions
Q: What field inputs can be directly connected to the ABB UFC760BE41? A: The module directly accepts load cell signals via its 2 or 4 analog input channels, alongside standard 8 digital inputs.
Q: What external auxiliary power does the UFC760BE41 provide for field sensors? A: It provides an auxiliary +24 VDC power output with a maximum current limit of 0.5 A to power external devices.
Q: Which communication standards does this interface board support? A: It includes two RS-232 serial ports and an IEEE 802.3/802.3u compliant Ethernet interface utilizing store-and-forward switching.
