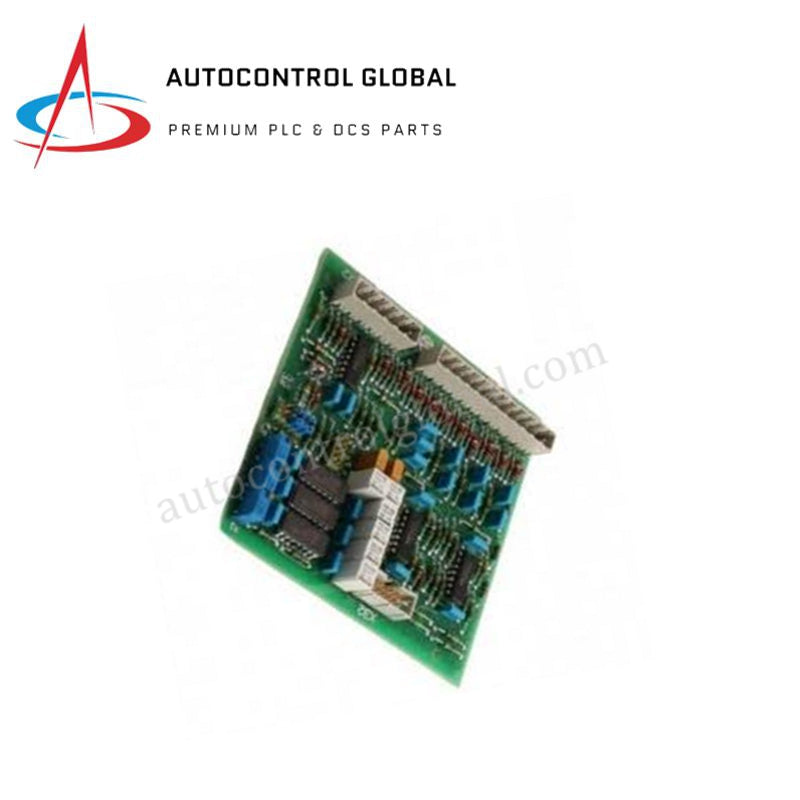

ABB YPG111A 3ASD273001B1 Power Measurement Unit
Manufacturer: ABB
-
Part Number: YPG111A 3ASD273001B1
Condition：New with Original Package
Product Type: Power Supply Modules
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
ABB YPG111A 3ASD273001B1 Power Measurement Module
The ABB YPG111A 3ASD273001B1, also cataloged as the YPG111A Power Measurement Module, operates as a dedicated hardware component for direct AC voltage, current, and real-time power conversion within ABB control architectures. The unit processes field line inputs across a 100-240 VAC range, delivering regulated 24 VDC output power at up to 5 A to support system logic execution and power diagnostics.
Suffix Breakdown & Model Matrix
| Part Number | Base Model | Hardware Subsystem Function | Output Rating |
|---|---|---|---|
| 3ASD273001B1 | YPG111A | Power Measurement & Regulated DC Conversion Unit | 24 VDC, 5 A (~120 W) |
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | YPG111A 3ASD273001B1 |
| Brand | ABB |
| Origin | Sweden |
| Weight | 0.4 kg |
| Dimensions | 120 mm x 90 mm x 50 mm |
| Operating Temp | 0 deg C to +60 deg C |
| Power Consumption | 100-240 VAC input, 50/60 Hz |
| Output Voltage | 24 VDC regulated |
| Output Current | 5 A maximum |
| Isolation Rating | 1500 V RMS input to output |
| Protection Features | Overvoltage, overcurrent, and short-circuit protection |
Backplane Bus Communication & Deterministic Execution
The YPG111A 3ASD273001B1 maintains strict power bus regulation while transferring real-time electrical parameter telemetry to adjacent control processors. High backplane bus communication velocity prevents data bottlenecks during cyclic power measurement updates. Solid-state isolation rated at 1500 V RMS prevents high-voltage supply transients from coupling into internal logic circuits, maintaining firmware flash compatibility and deterministic execution across distributed expansion racks.
Frequently Asked Questions
Q: How does the unit handle internal heat dissipation without forced air cooling?
A: The hardware utilizes natural convection cooling across its chassis structure; panel layouts must maintain clear vertical airflow paths to sustain operation up to +60 deg C.
Q: What safety protection triggers during an output short-circuit condition?
A: Integrated overcurrent and short-circuit protection circuits limit output current draw, preventing board trace damage until the field fault clears.
Q: Can multiple YPG111A modules share a common primary AC input bus bar?
A: Yes, provided each individual module branch circuit incorporates proper terminal fusing matching the 100-240 VAC rating and local cabinet wiring codes.
Field Installation Guidelines
Mount the YPG111A 3ASD273001B1 vertically on a standard enclosure rack or panel surface to optimize natural convection air movement through the housing vents. Maintain a minimum clearance of 50 mm above and below the module to avoid thermal buildup from adjacent heat-generating devices.
Connect the primary AC power leads (100-240 VAC) to the designated input terminal block using copper conductors rated for at least 75 deg C. Ensure the protective earth (PE) ground terminal connects directly to the central cabinet earth bus rail with a low-impedance conductor. Route all 24 VDC output cabling separately from high-voltage AC lines to minimize electro-magnetic noise coupling.
