Product Description

Overview

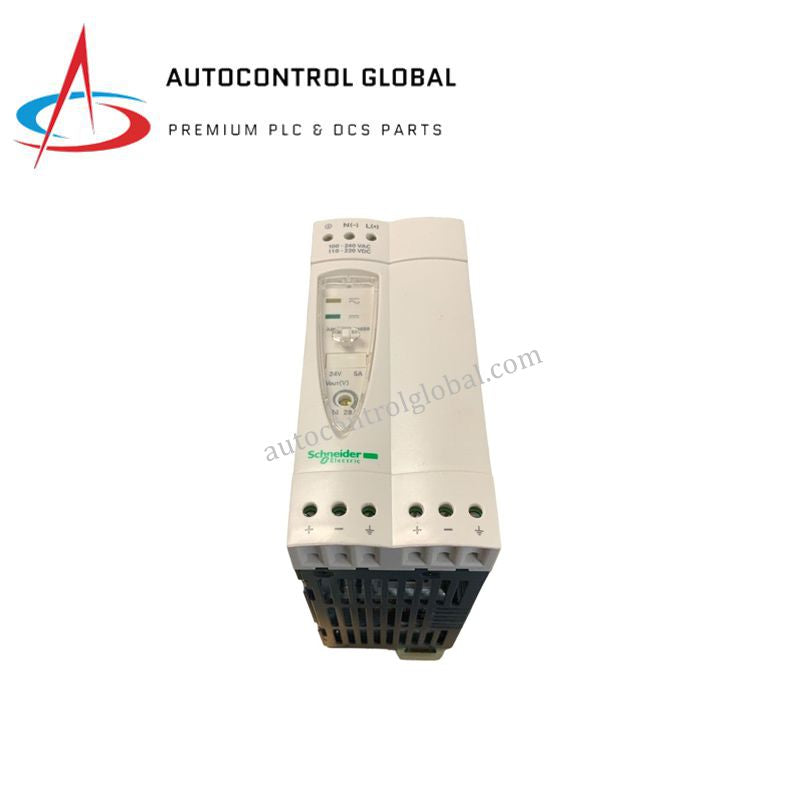

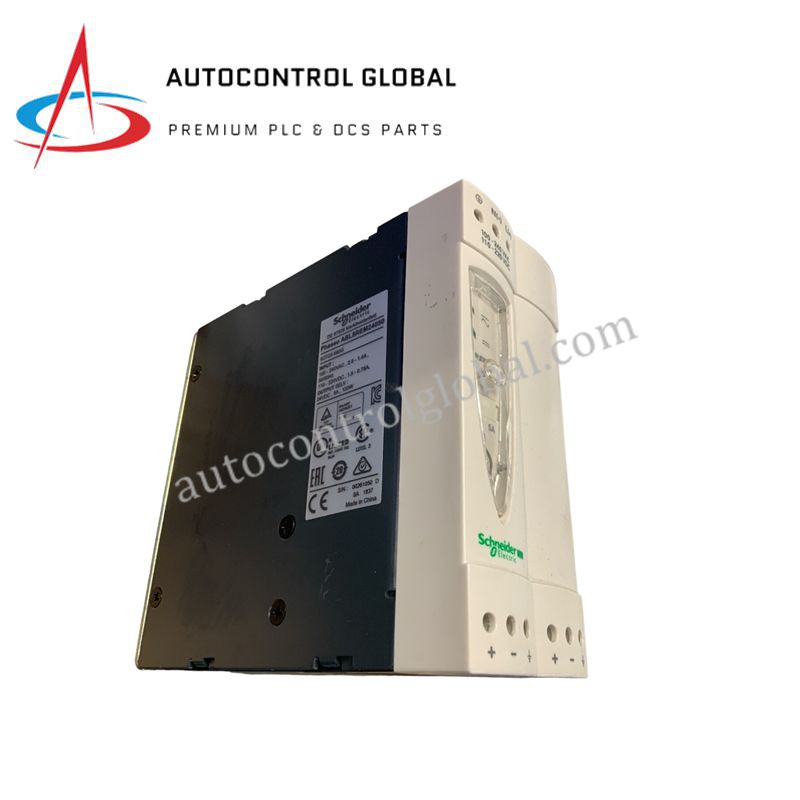

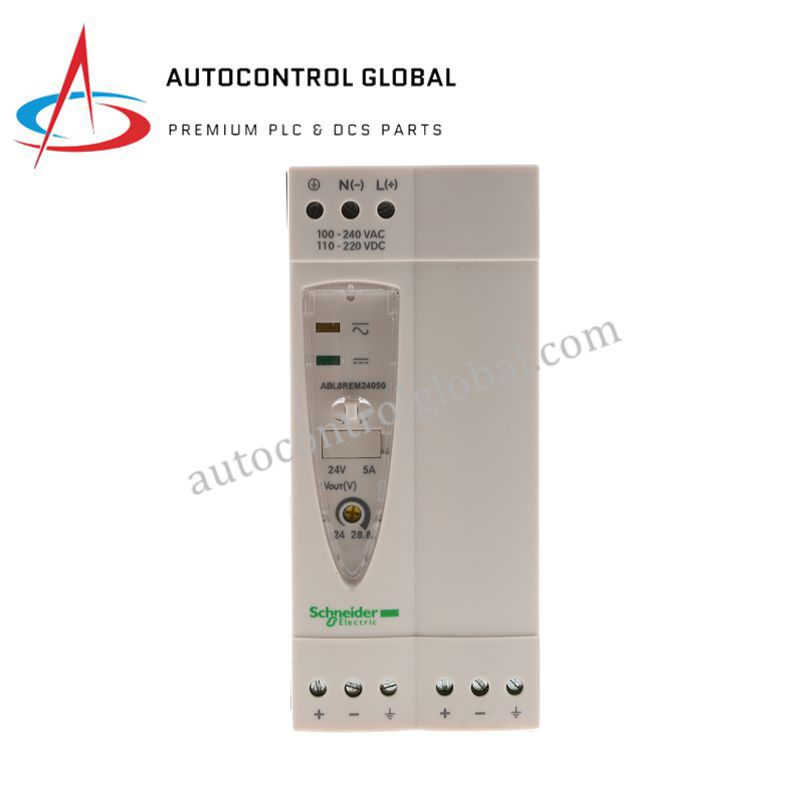

The Schneider Electric ABL8REM24050 is a compact regulated switch-mode power supply delivering 24 V DC output at 5 A, providing 120 W of reliable power. Designed for industrial automation, process control, and energy systems, it ensures stable voltage for PLCs, sensors, actuators, and other industrial devices. Moreover, its DIN rail or panel mounting enables easy installation in compact control panels. Although discontinued, the recommended replacement is ABLS1A24051 for continued operational reliability.

Technical Specifications

Parameter — Details
Product Type — Regulated switch-mode power supply
Nominal Input Voltage — 100–240 V AC (single-phase), 110–220 V DC
Input Voltage Limits — 85–264 V AC, 100–250 V DC
Network Frequency — 47–63 Hz
Inrush Current — ~30 A
Power Factor (cos φ) — 0.65
Output Voltage — 24 V DC (adjustable 24–28.8 V)
Output Current — 5 A
Rated Power — 120 W
Output Protection — Short-circuit, overload, overvoltage, undervoltage
Efficiency — 85%
Operating Temperature — –20 to +45 °C (no derating), up to +60 °C with derating
Storage Temperature — –40 to +85 °C
Mounting Options — DIN rail or panel
Dimensions — Width: 54 mm, Depth: 120 mm, Height: 120 mm
Weight — 0.7 kg
Compliance — IEC 61131‑2, UL, CSA, CE
Commercial Status — Discontinued (end of commercialization around 2020)
Replacement Model — ABLS1A24051 (24 V DC, 5.1 A)

FAQ

Q1: What is the rated output power of ABL8REM24050?
A1: It delivers 120 W continuous output at 24 V DC with a 5 A current.

Q2: Can it be mounted on DIN rails?
A2: Yes, it supports both DIN rail and panel mounting for flexible installation.

Q3: Does it provide protection against short-circuit and overload?
A3: Yes, built-in protection with automatic reset ensures safe operation.

Q4: Is the output voltage adjustable?
A4: Yes, the output voltage can be adjusted from 24 to 28.8 V DC.

Q5: What is the replacement model for this discontinued unit?
A5: Schneider ABLS1A24051 (24 V DC, 5.1 A) is the recommended replacement.
