AC Drive Sync PC Board | ABB LDSYN-101 3BHE005555R0101

ABB LDSYN-101 Voltage Measurement Board

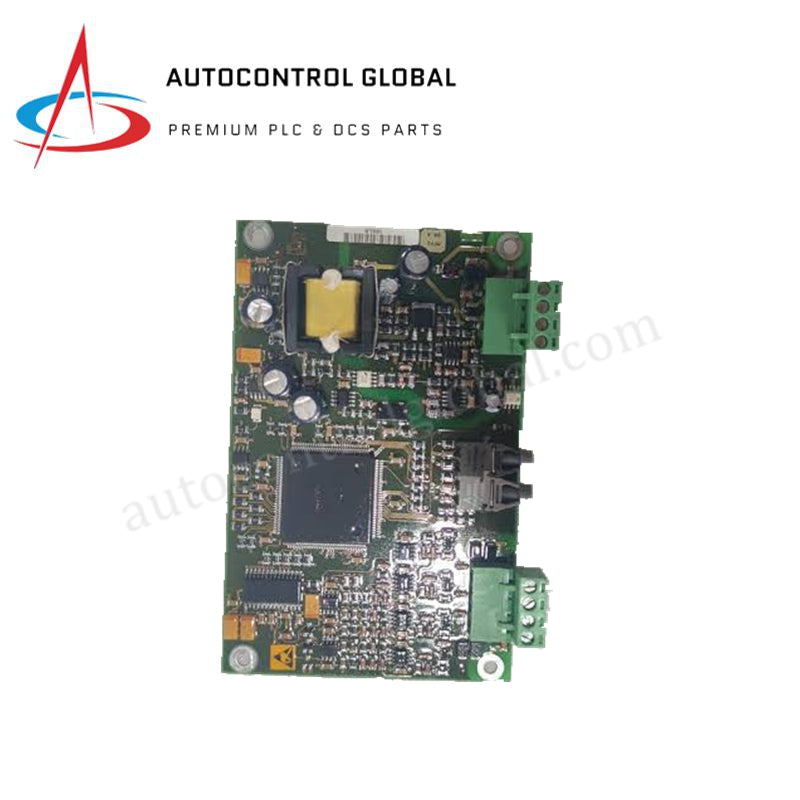

The LDSYN-101 (part number 3BHE005555R0101) is a high-performance synchronous voltage measurement board manufactured by ABB for AC drive systems and distributed control platforms. It processes high-precision synchronous voltage inputs to support real-time voltage monitoring, power synchronization, and system control. Designed with fault-tolerant internal architecture, the module supports both rack-mounted and panel-mounted installation options.

Voltage Measurement and System Integration

This circuit board functions within ABB drive controllers and power automation setups to monitor dynamic line voltage conditions. By providing accurate synchronous feedback, it allows control systems to regulate power stability during synchronization and grid-coupling routines.

The module features a robust PC board construction optimized for industrial environments, ensuring reliable execution in control enclosures. Its interface architecture integrates directly into ABB system backplanes for high-speed data transfer between measurement hardware and processing units.

Technical Specifications

Frequently Asked Questions

Q: What is the primary function of the ABB LDSYN-101? A: It performs high-precision synchronous voltage measurement and control within ABB AC drive systems and DCS platforms.

Q: How can the LDSYN-101 module be mounted inside a control panel? A: The board supports both rack-mounted and panel-mounted configuration options.

Q: What system platforms are compatible with this board? A: The module is designed for integration into ABB AC drive systems and industrial automation control architectures.
