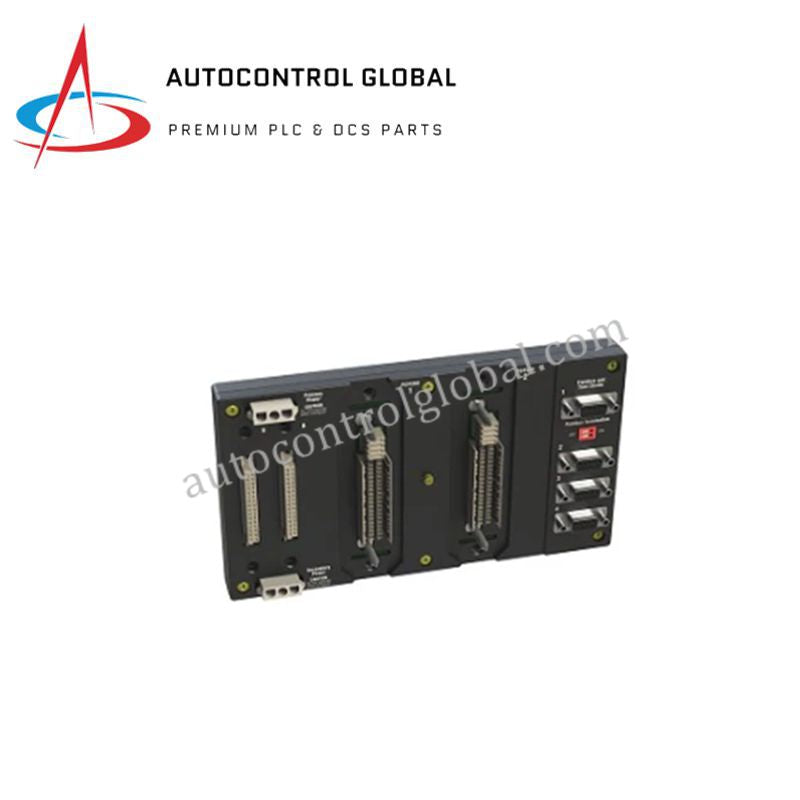

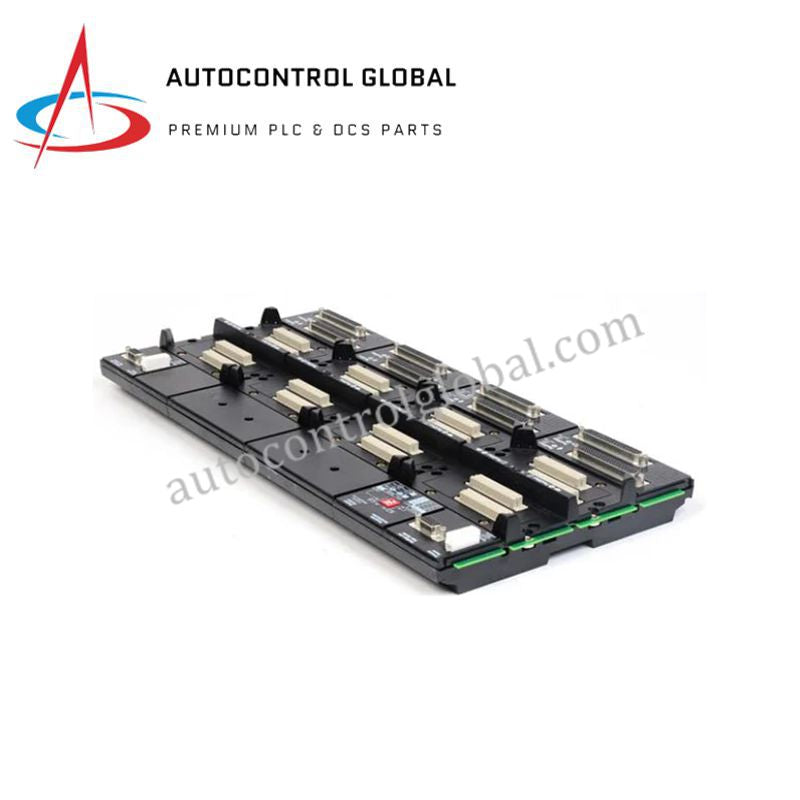

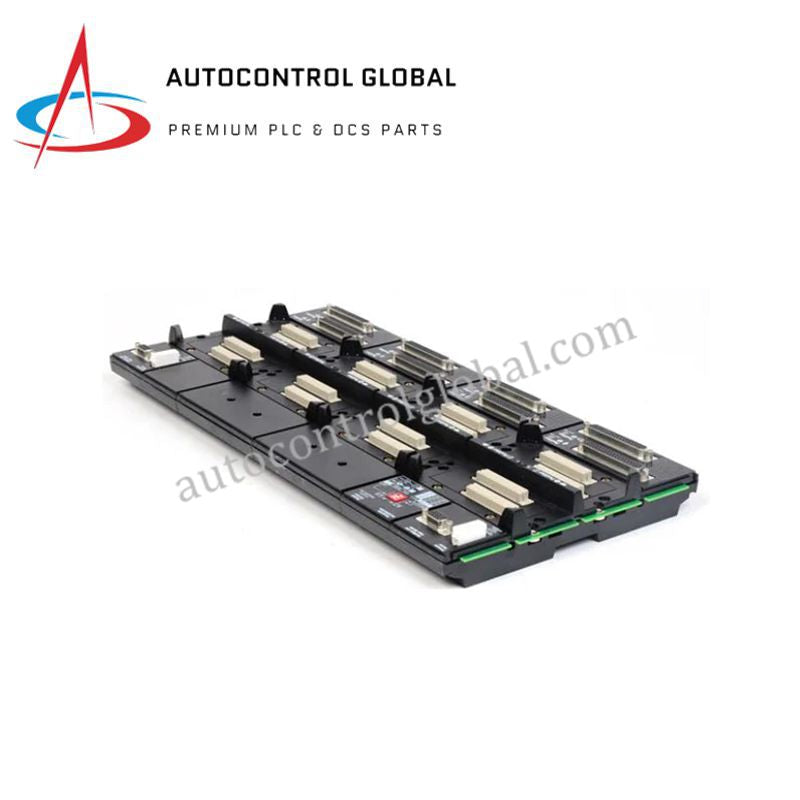

AD104SR | FOXBORO Remote I/O Module with Fault-Tolerant Support
Manufacturer: Foxboro
-
Part Number: AD104SR
Condition：New with Original Package
Product Type: Remote I/O Module with Fault-Tolerant Support
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
FOXBORO AD104SR | Remote I/O Control Module
Product Overview
The FOXBORO AD104SR is a high-reliability remote I/O module designed for the Foxboro I/A Series DCS. It integrates analog and digital signals from field devices into the control system, providing real-time data acquisition, signal processing, and control execution.
Engineered for harsh industrial environments, the AD104SR features a distributed architecture, supports fault-tolerant configurations, and is compatible with various Fieldbus Modules (FBMs). Its compact, rugged design ensures reliability in chemical processing, power generation, pharmaceutical manufacturing, and oil & gas applications.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | AD104SR |
| Function | Remote I/O control module |
| Architecture | Distributed; supports field installation |
| Processor Configuration | Single processor (dual-module setup for fault tolerance) |
| Memory | 16 MB SDRAM, 32 MB Flash |
| Power Supply | 24 V DC (supports redundant input) |
| Power Consumption | ≤ 8.5 W (non-redundant configuration) |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Communication Protocols | HDLC Fieldbus, Modbus, RS-485 |
| Signal Support | Analog and digital I/O |
| Mounting Type | DIN rail or modular baseplate |
| Environmental Protection | Industrial-grade; resistant to vibration, dust, and humidity |
| Certifications | CE, RoHS, IEC 61131-2 compliant |
FAQ
Q: What I/O signals does the AD104SR support?
A: The AD104SR supports both analog and digital I/O, providing versatile field connectivity.
Q: Can this module handle fault-tolerant configurations?
A: Yes, it supports dual-module fault-tolerant setups for uninterrupted operation.
Q: What is the operating temperature range?
A: The AD104SR operates between 0°C and +60°C (32°F to 140°F).
Q: Is the module compatible with Foxboro FBMs?
A: Yes, it integrates seamlessly with various Fieldbus Modules (FBMs).
Q: What industries is this module suitable for?
A: Ideal for chemical, power generation, pharmaceutical, and oil & gas industries.
