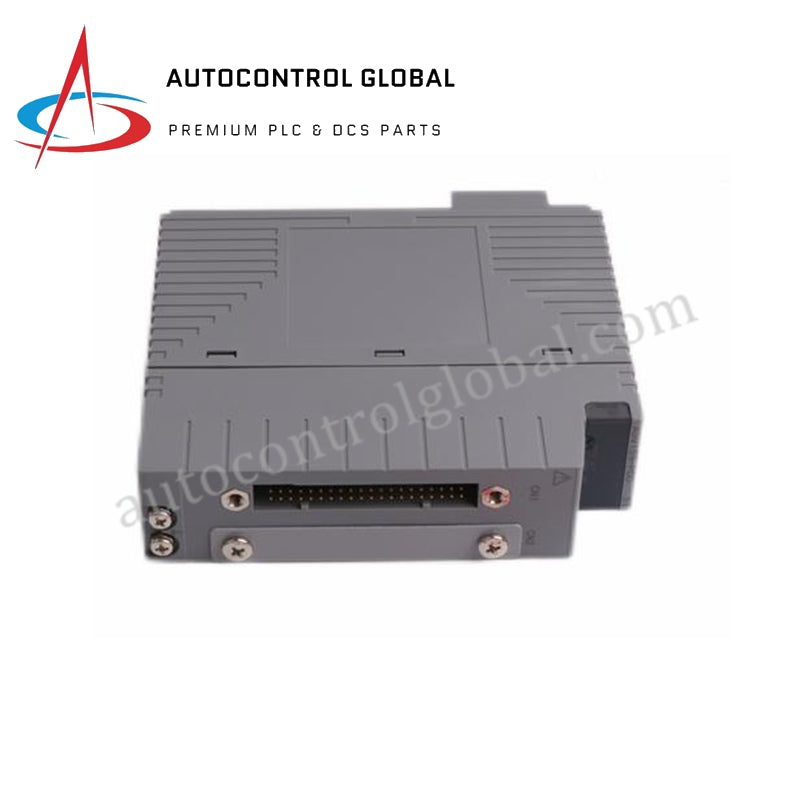

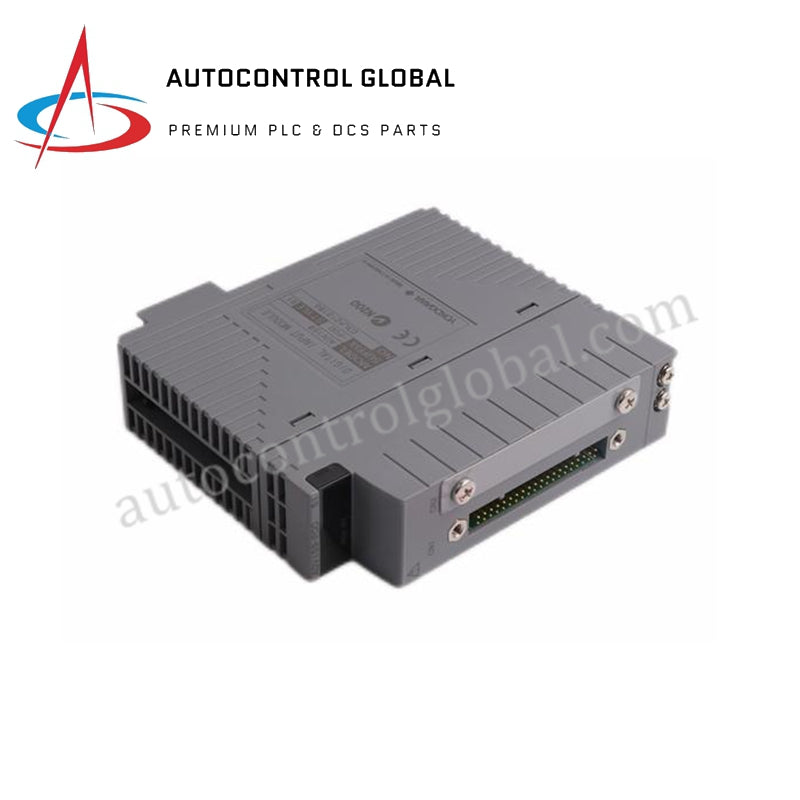

ADV159-P00 Yokogawa Digital Input Module
Manufacturer: YOKOGAWA
-
Part Number: ADV159-P00
Condition：New with Original Package
Product Type: Digital Input Module
-
Country of Origin: Japan
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Description
ADV159-P00 is a 32-channel digital input module from Yokogawa, featuring isolated channels and support for pushbutton input functions. It is ideal for applications requiring reliable status and pushbutton signal monitoring.
Input Specifications
-
Number of I/O Channels: 32-channel input
-
Signal Isolation: Isolated channels
-
Input Signal:
– Contact input OFF: 100 kΩ or more
– Contact input ON: 200 Ω or less
– Shorted input current: 1.25 mA
– Voltage input OFF: 4.5 to 25 V DC
– Voltage input ON: ±1 V DC, 200 Ω or less
Input Response Characteristics
-
Input Response Time: 8 ms (status input)
-
Minimum ON Detection Time: 20 ms (pushbutton input)
-
Max ON/OFF Cycle: 25 Hz (pushbutton input)
Electrical & Physical
-
Max Current Consumption: 330 mA (5 V DC)
-
Weight: Approx. 0.40 kg
Connectivity
-
External Connection: Dedicated cable (KS2)
-
Compatible Card: ST3 compatible
