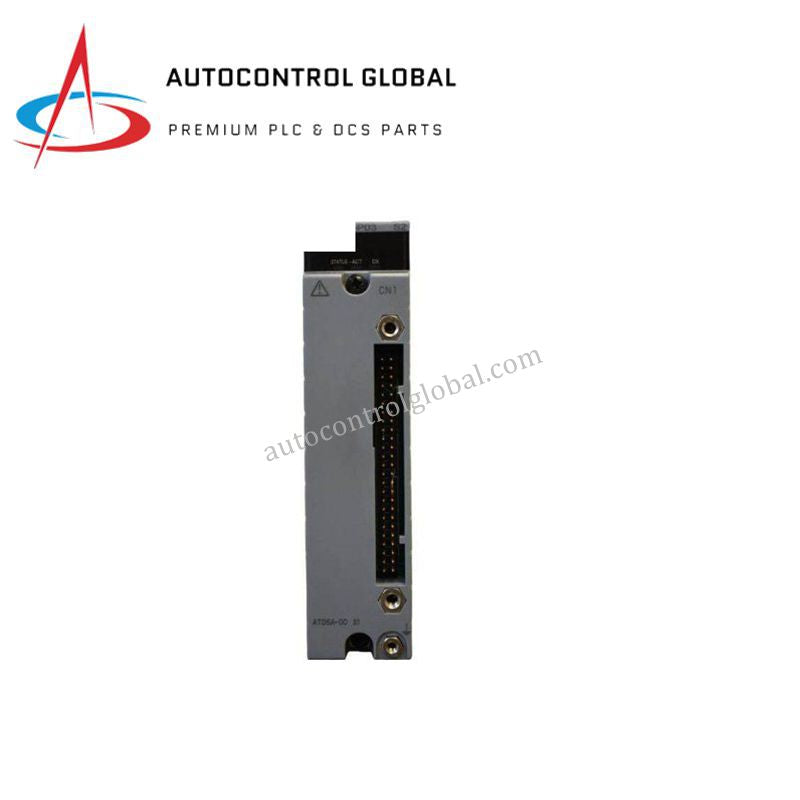

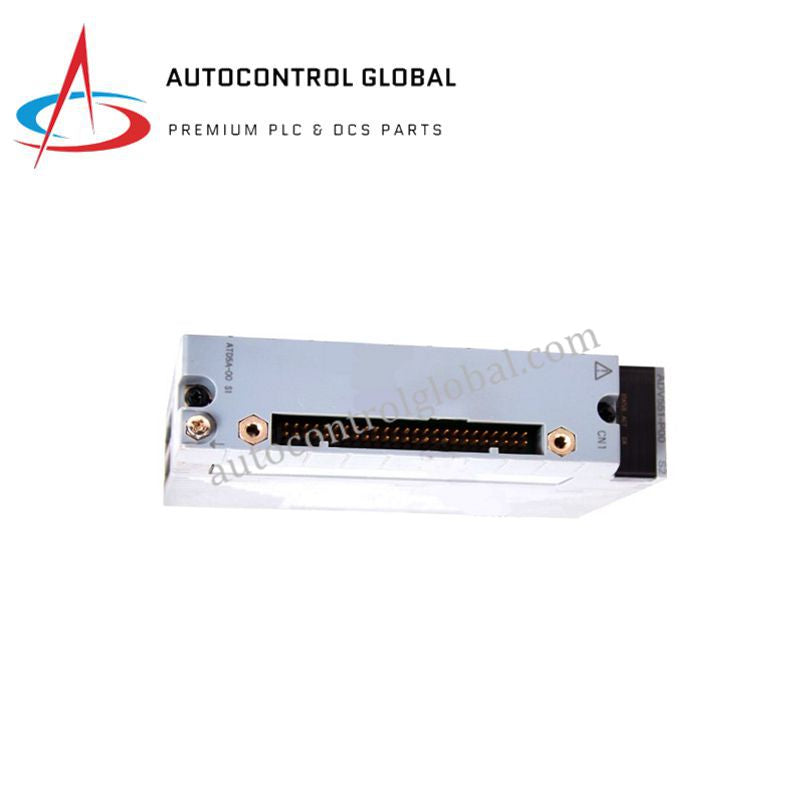

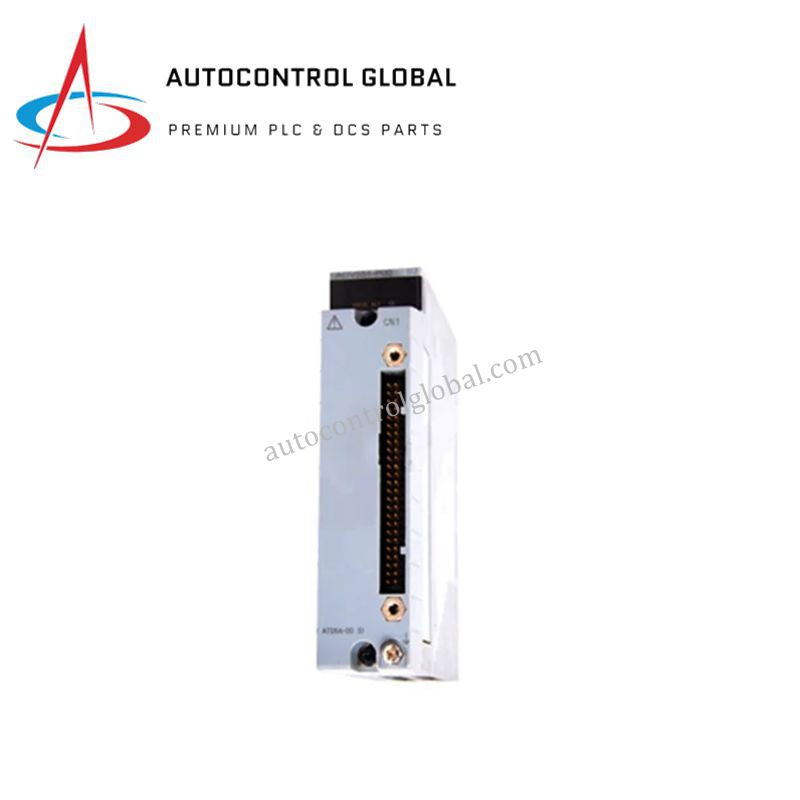

ADV561-P50 Yokogawa | Rack-Mount 16-Channel Output Module
Manufacturer: Yokogawa
-
Part Number: ADV561-P50
Condition：New with Original Package
Product Type: Rack-Mount 16-Channel Output Module
-
Country of Origin: Japan
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Description
Yokogawa ADV561-P50 is a high-performance digital output module developed by Yokogawa Electric Corporation. It integrates with CENTUM VP and other distributed control systems (DCS). The module provides 16 DC output channels, enabling control of actuators, relays, solenoids, and other field devices in industrial automation.
The ADV561-P50 supports high-speed switching, electrical isolation, and robust operation in harsh environments. Each channel can output up to 24 VDC and 20 mA, offering wide applicability. Relay contacts (2NO + 2NC) and ESB bus communication allow seamless integration into Yokogawa’s control architecture.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | ADV561-P50 |
| Product Type | Digital Output Module |
| Number of Channels | 16 DC output channels |
| Output Voltage Range | 0 to 24 VDC |
| Output Current Range | 0 to 20 mA |
| Power Supply Voltage | 12 to 48 VDC |
| Input Resistance | ≥1 MΩ |
| Isolation Voltage | 1000 VAC |
| Relay Contacts | 2NO + 2NC |
| Communication Interface | ESB Bus |
| Operating Temperature | –40°C to +85°C |
| Dimensions (W×H×D) | 130 × 119.9 × 32.8 mm |
| Weight | 0.3 kg |
| Mounting Type | Rack-mounted |
| Country of Origin | Japan |
| Shipping Weight | 1.5 kg |
| Shipping Port | Xiamen, China |
Key Advantages
-
High-Speed Switching: Supports fast DC output for precise industrial control applications.
-
Electrical Isolation: Ensures safe and reliable operation in electrically noisy environments.
-
Wide Compatibility: Works with CENTUM VP and other Yokogawa distributed control systems.
-
Relay and Bus Integration: Includes 2NO + 2NC relay contacts and ESB bus interface.
-
Compact and Lightweight: Measures 130 × 119.9 × 32.8 mm and weighs only 0.3 kg for rack mounting.
FAQ (Frequently Asked Questions)
Q1: Is the ADV561-P50 module brand new?
A1: Yes, ADV561-P50 is fully new and original from Yokogawa.
Q2: What is the stock availability and delivery time?
A2: We have stock available. Shipping takes 3 days to 2 weeks depending on order size.
Q3: Which logistics services are used for delivery?
A3: We ship via FEDEX or DHL for reliable delivery.
Q4: Can the module be returned if there is a quality issue?
A4: Yes, we support returns within 30 days for quality-related issues.
Q5: What output voltage and current does the module support?
A5: ADV561-P50 supports outputs up to 24 VDC and 20 mA per channel.
