AI630 ABB | Distributed Control Analog Input Module for Pt100
Manufacturer: ABB
-
Part Number: AI630 3BHT30011R1
Condition：New with Original Package
Product Type: Distributed Control Analog Input Module for Pt100
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months

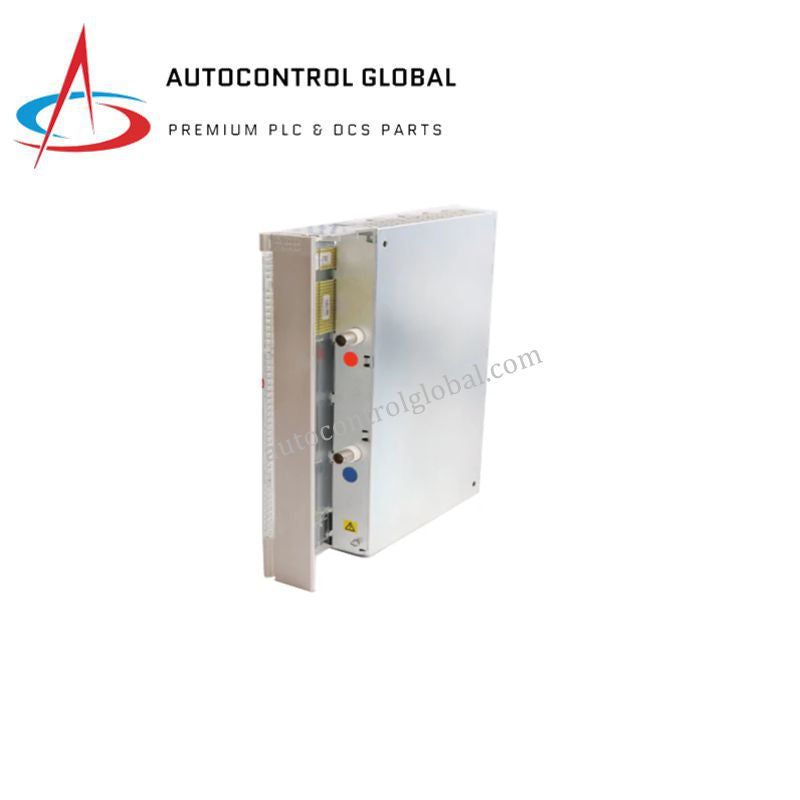

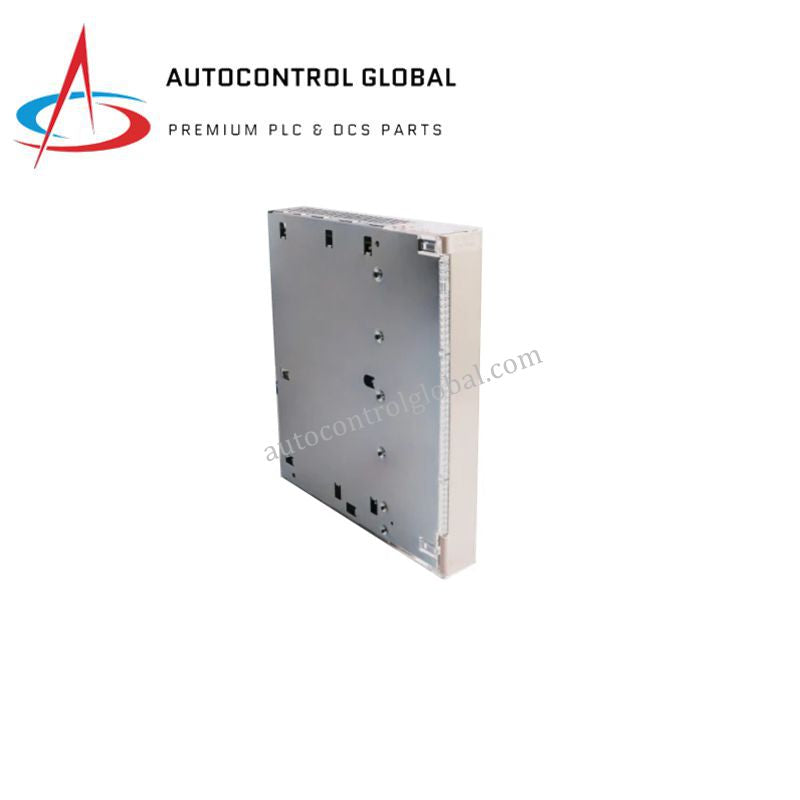

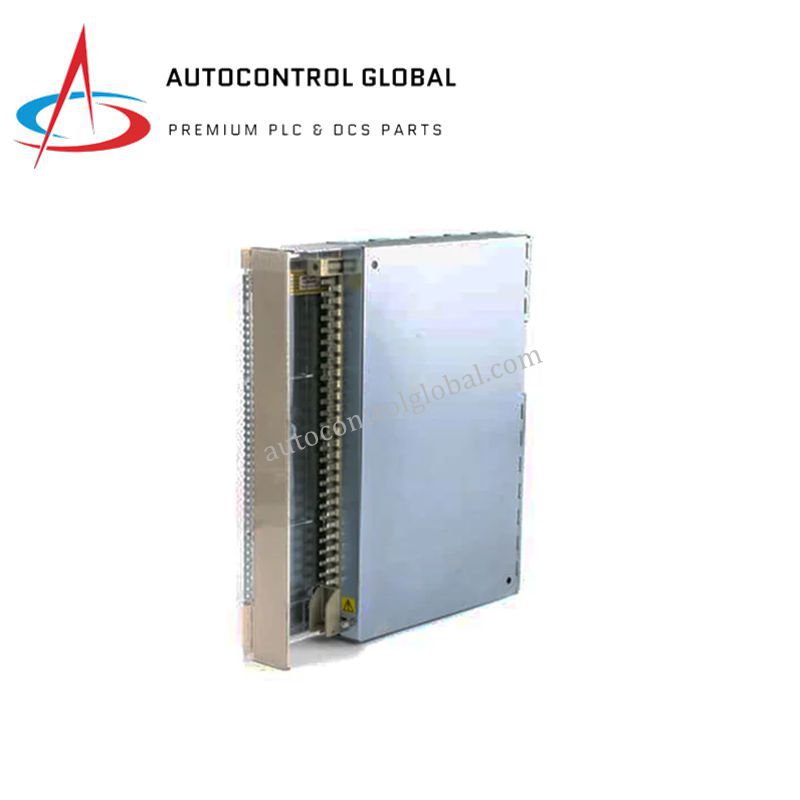

ABB AI630 12-Channel Analog Input Module
Overview
The ABB AI630 is a high-precision analog input module designed for ABB distributed control systems.
It provides 12 analog input channels optimized for Pt100 temperature sensors, enabling accurate temperature monitoring in industrial automation applications.
This module features robust electrical isolation, high-resolution data acquisition, and protection against industrial interference.
It is RoHS compliant and classified as WEEE Category 5 – Small Equipment, making it suitable for environmentally-conscious installations.
Applications include process industries, power generation, and manufacturing requiring reliable temperature data and control.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | AI630 |
| Part Number | 3BHT300011R1 |
| Product Type | Analog Input Module |
| Number of Channels | 12 analog input channels |
| Sensor Type | Pt100 (RTD) |
| Channel Type | Analog Input (AI) |
| Dimensions (L × W × H) | 252 × 40 × 273 mm |
| Weight | 1.195 kg |
| RoHS Compliance | Yes, per EU Directive 2011/65/EU |
| WEEE Category | Category 5 – Small Equipment |
| HS Code | 853890911 |
| Application Areas | Process industries, power generation, manufacturing, industrial automation |
FAQs
Q1: How many channels does ABB AI630 support?
✅ The AI630 provides 12 analog input channels for Pt100 sensors.
Q2: What sensor type is compatible?
✅ It is optimized for Pt100 RTD sensors for precise temperature monitoring.
Q3: What are the module dimensions and weight?
✅ The AI630 measures 252×40×273 mm and weighs 1.195 kg.
Q4: Is it compliant with environmental standards?
✅ Yes, it is RoHS compliant and falls under WEEE Category 5.
Q5: What applications are suitable for this module?
✅ Ideal for process control, industrial automation, power generation, and manufacturing systems.
