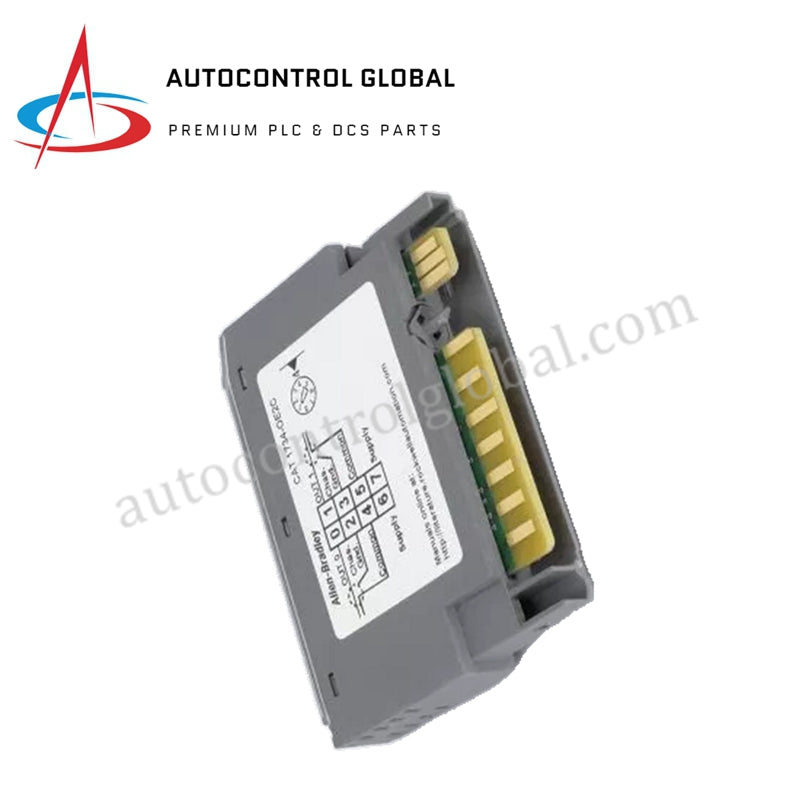

Allen-Bradley | 1734-OE2C Analog Output Module
Manufacturer: Allen-Bradley
-
Part Number: 1734-OE2C
Condition：New with Original Package
Product Type: Analog Output Module
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
General Information
-
Brand : Allen-Bradley
-
Manufacturer : Rockwell Automation
-
Series : POINT I/O
-
Module Type : Analog Output Module
-
Part Number : 1734-OE2C
Specifications
| Specification | Details |
|---|---|
| Number of Outputs | 2 (Single-ended, non-isolated channels) |
| Output Signal | 0-20 mA; 4-20 mA |
| Absolute Accuracy | 0.1% Full Scale @ 25°C |
| Step Response | 24 µs (63% of FS) |
| Output Current | 4-20 mA or 0-20 mA |
| Resolution | 13 bits (0-21 mA, 2.5 µA/count, typical range: 2.3-2.7 µA/count) |
| Conversion Rate | 16 µs |
| Current Draw | 75 mA @ 5 V DC |
| Power Dissipation | 1.23 W (load on each output), 1.83 W (no load on each output) |
| Converter Type | Digital to Analog |
| Data Format | Signed Integer |
| Isolation Voltage | 50 V Continuous |
| Enclosure Type Rating | None (open-style) |
| Operating Temperature | -20°C to +55°C |
| Dimensions | 56 x 12 x 75.5 mm (2.2 x 0.47 x 2.97 in.) |
| Weight | 36 g (1.27 oz) |
| Status Indicators | 1 green/red module status indicator, 1 green/red network status indicator, 2 green/red output status indicators |
| Keyswitch Position | 4.00E+00 |
| Module Location | Compatible with 1734-TB, 1734-TBS, 1734-TB3, 1734-TB3S wiring base assemblies |
