Allen-Bradley Gate Driver Control Board 80190-220-01-R

Product Description

Product Overview

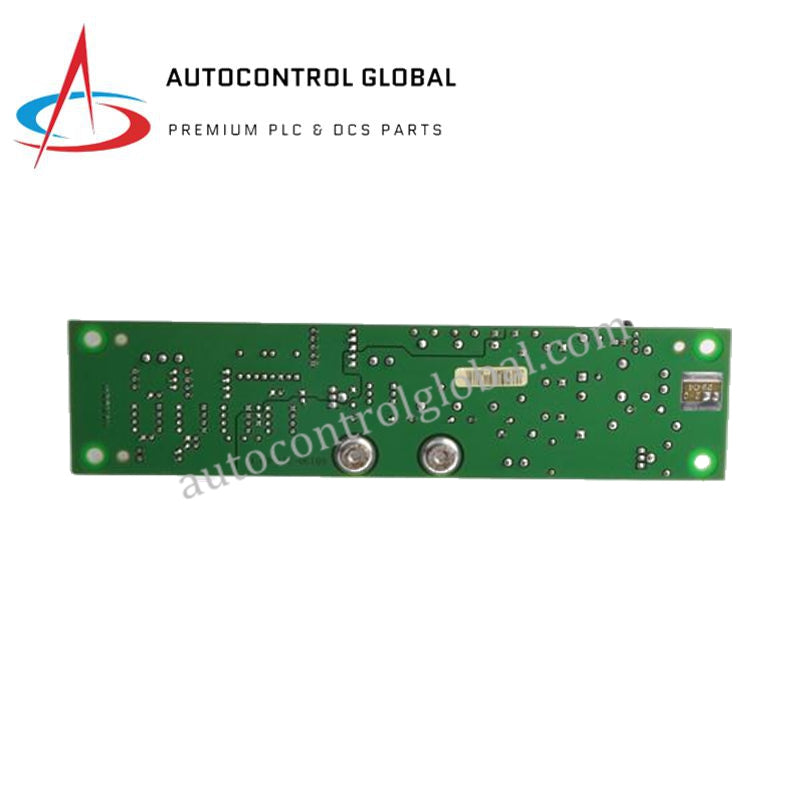

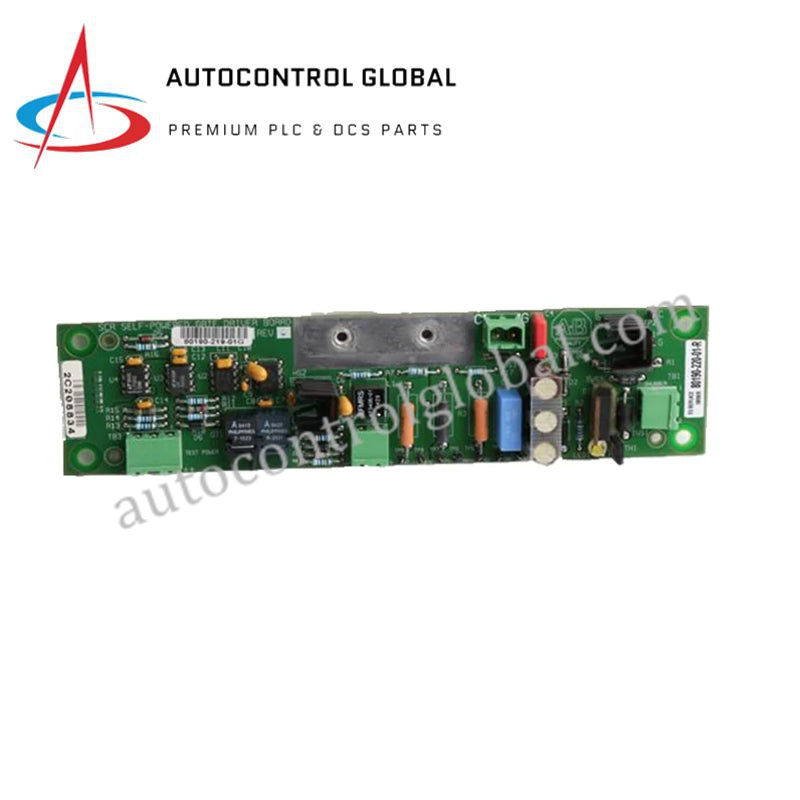

The Allen-Bradley 80190-220-01-R is a self-powered gate driver control printed circuit board designed for use in Allen-Bradley power control and drive systems. This board provides gate control and firing logic for SCR (Silicon-Controlled Rectifier) devices, enabling precise regulation of power delivery within industrial equipment.

The ruggedized “-R” revision enhances durability for demanding operating conditions. The 80190-220-01-R is typically installed as an internal control board and operates as part of a larger power or drive assembly.

Functional Description

The 80190-220-01-R functions as a gate driver PCB, generating and conditioning firing signals required to trigger SCR devices. Its self-powered design allows it to derive operating power internally, reducing dependency on auxiliary power sources and improving system stability.

This board does not perform PLC logic execution and should not be classified as a CPU or processor module. It supports power regulation and control functions rather than programmable automation tasks.

Technical Specifications
