Analog Input Module Emerson DeltaV SE4003S6B1

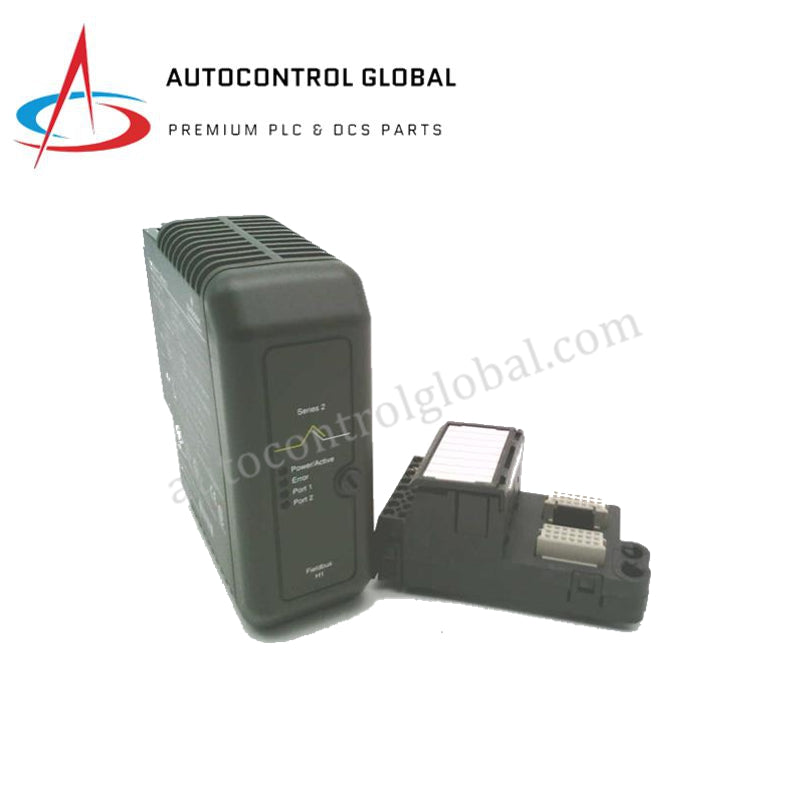

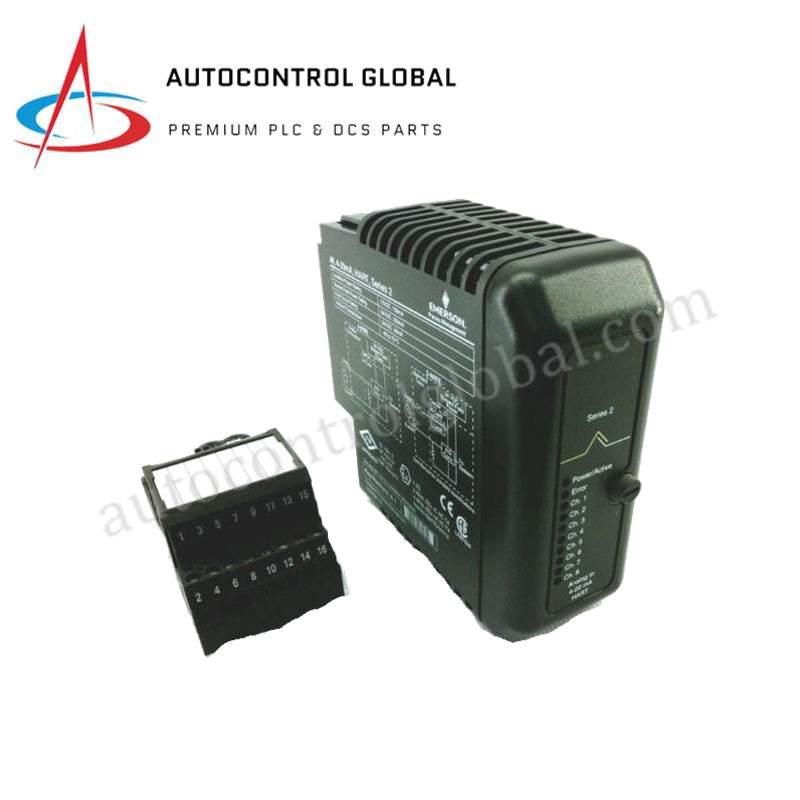

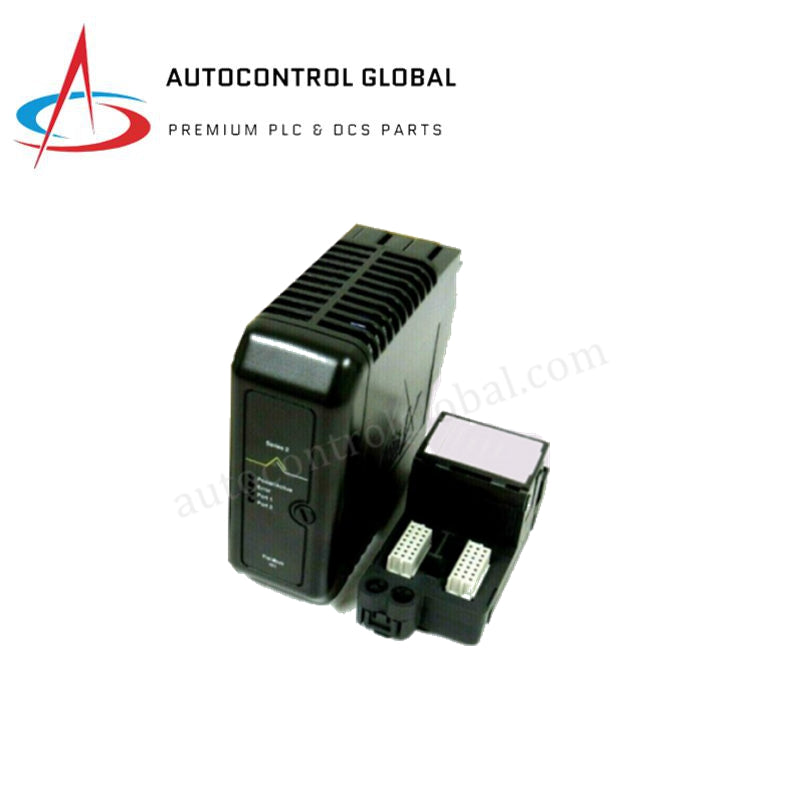

Emerson SE4003S6B1 Analog Input Module

Configured for multi-signal process monitoring in DeltaV S-Series systems, the Emerson SE4003S6B1 (KJ3225X1-BK1 Analog Input Module) provides direct physical and electrical execution of 8 differential analog signals, including current, voltage, and RTD/resistance measurement.

Hardware Specifications

Channel-to-channel isolation

The SE4003S6B1 features high-integrity galvanic isolation to safeguard signal acquisition precision. It maintains a 250 V rating for channel-to-channel isolation when operating in RTD mode, which effectively mitigates errors caused by ground loops and common-mode noise in distributed sensor arrays. The module also provides 1500 VAC isolation between the input circuitry and the system backplane, ensuring stable data transmission to the controller despite potential electrical transients on the field side. These isolation characteristics support consistent performance in harsh environments, complemented by a factory-applied conformal coating that protects the electronics against airborne contaminants up to Class G3 specifications.

Frequently Asked Questions

Q: Does the SE4003S6B1 module support hot-swapping under normal operating conditions?

A: Yes, the module is designed for hot-swapping within the DeltaV S-Series I/O carrier. It may be replaced while the system is powered and operational, provided that local safety procedures for hazardous area installations are followed.

Q: Is the terminal block configuration specific to this module?

A: Yes, the SE4003S6B1 requires a C3 position terminal block keying configuration. This mechanical keying ensures that only compatible input wiring harnesses are connected to the module, preventing damage from accidental voltage mismatch.

Field Installation Guidelines

• Carrier Insertion: Verify the I/O carrier slot is clear of debris. Align the module with the carrier guide rails and seat the card firmly to ensure the backplane pins are properly engaged.
• Terminal Keying: Prior to connecting the field wiring terminal block, confirm the rotary keys are set to the C3 position. Do not attempt to force the terminal block if the keys do not align, as this indicates an installation mismatch.
• Shielding: Terminate all signal cable shields to the carrier ground bar. Ensure the shield continuity is maintained through to the field device to maximize noise immunity and protect the 16-bit ADC from EMI.
• Commissioning: After installation, use the DeltaV diagnostics tool to verify the module status and confirm that each of the 8 channels is correctly configured for the specific input type (current, voltage, or RTD) connected to the field terminals.
