Analog Interface IC660ELB912J | GE Fanuc Genius System Card

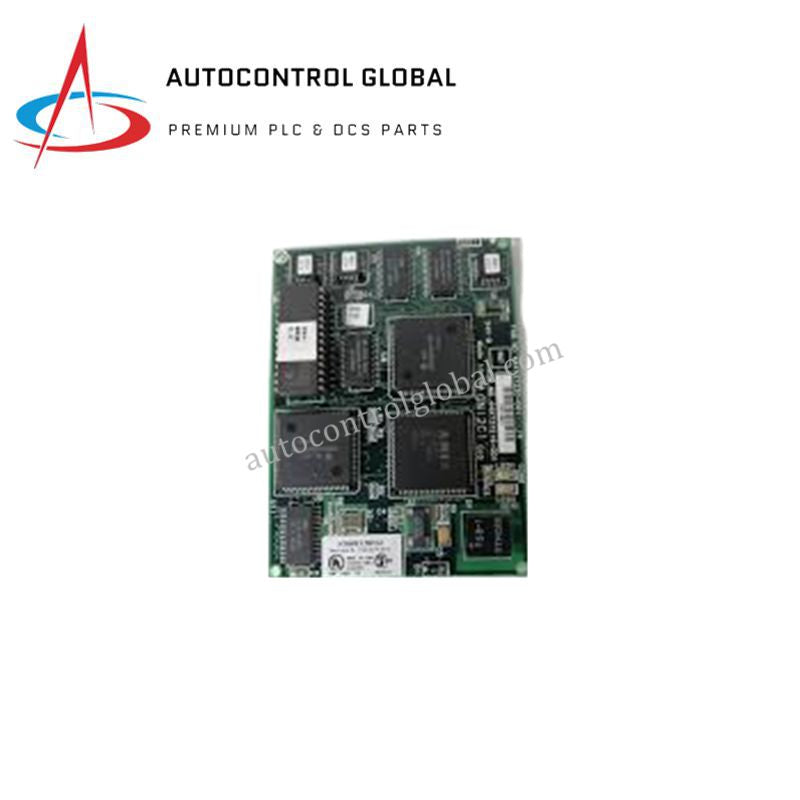

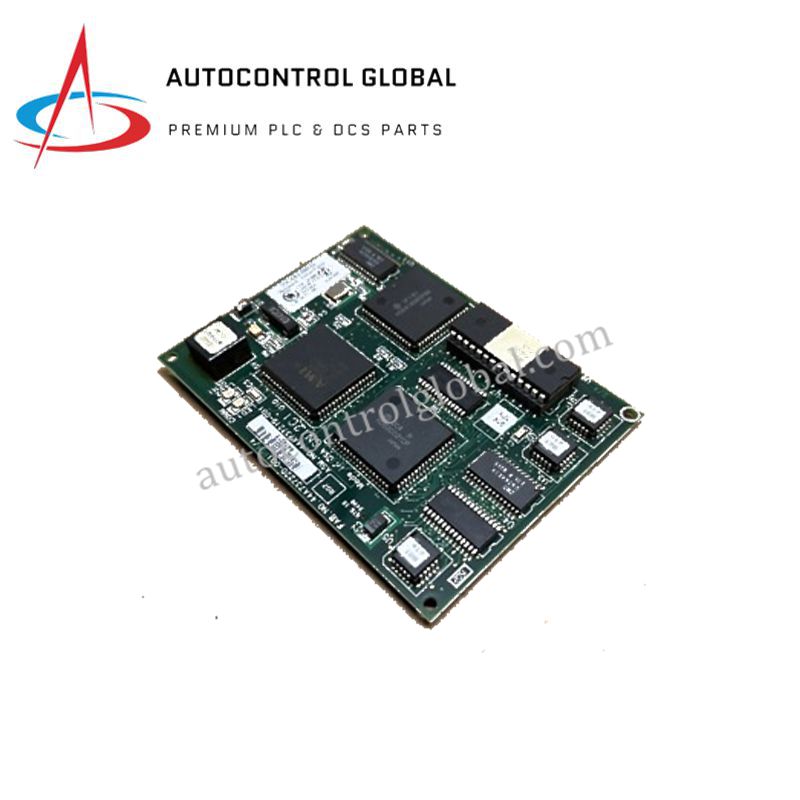

GE Fanuc IC660ELB912J Genius Network Analog Interface Module

Description / Product Summary

The GE Fanuc IC660ELB912J is a rugged Genius I/O network interface module designed for distributed industrial control systems that require precise analog signal acquisition. It provides four independent analog input channels, giving engineers a reliable way to monitor voltage-based sensors across complex plant networks. Moreover, the module communicates seamlessly over the Genius bus, which ensures low-latency data exchange between field devices and GE Fanuc PLC platforms such as the Series 90-30 and 90-70. Its wide operating-temperature range and durable construction make it suitable for harsh industrial environments where stability and long service life are essential.

Technical Specifications

General Information
Manufacturer: GE Fanuc / General Electric
Model Number: IC660ELB912J
Product Type: Network Interface / Analog Input Module
Condition: In stock
Origin: USA
Weight: 386 g

Input Channels

• 4 analog input channels

• Supports single-ended and differential modes

Measurement Ranges

• ±10 V

• ±1 V

• ±100 mV

Performance

• High-precision measurement capability

• High-speed sampling (thousands of samples per second)

Communication

• Genius bus network interface

• Works with GE Fanuc PLCs including Series 90-30 and 90-70

• Protocols supported via Genius interface: Ethernet, Modbus

Electrical Ratings

• Power supply: 5 VDC

Physical Specifications

• Approx. dimensions: 3.1 × 8.0 × 7.0 inches

• Weight: 1.5–2.0 lbs

Environmental Ratings

• Operating temperature: –40 °C to +70 °C

• Storage temperature: –40 °C to +85 °C

• Humidity: 5–95% non-condensing

Commercial Information
Product No.: IC660ELB912J
Payment: T/T, Western Union

FAQ

Q1: Can the IC660ELB912J handle mixed analog ranges on different channels?
Yes. Each channel supports its own independent voltage range, allowing flexible sensor integration.

Q2: Is the module compatible with all Genius bus networks?
It works with standard Genius bus systems and integrates seamlessly with GE Fanuc PLC families.

Q3: What sensor types commonly connect to this module?
Typical connections include voltage-output transmitters such as pressure, flow, vibration, and position sensors.

Q4: Can this module operate in outdoor industrial environments?
Yes. Its wide temperature tolerance and rugged housing support demanding temperature and humidity conditions.

Q5: Does the module support hot-swapping?
Hot-swapping depends on the system’s rack configuration, so consulting the PLC’s hardware manual is recommended.
