Product Description

Overview

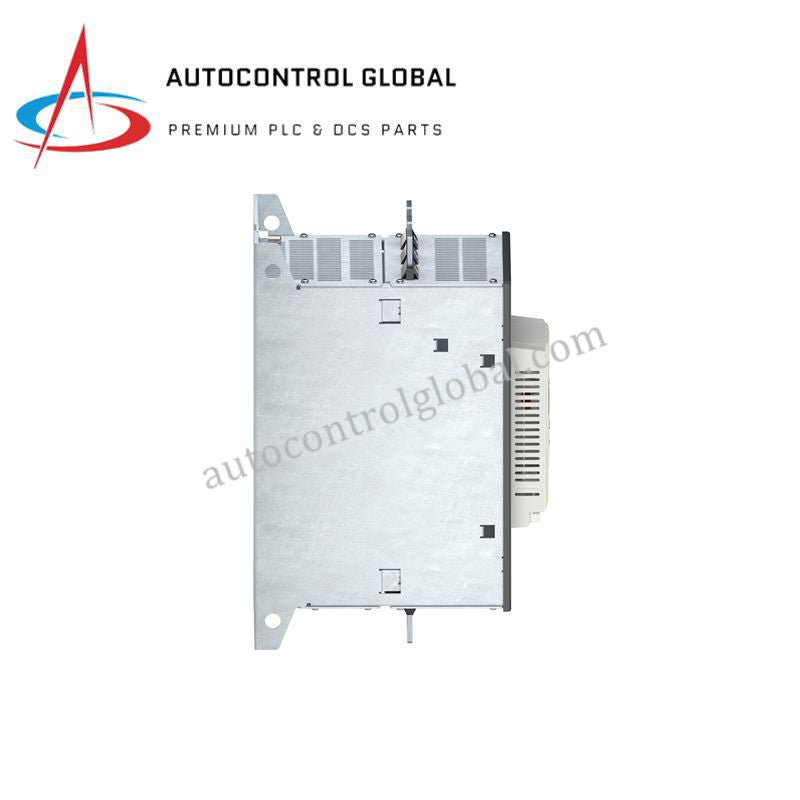

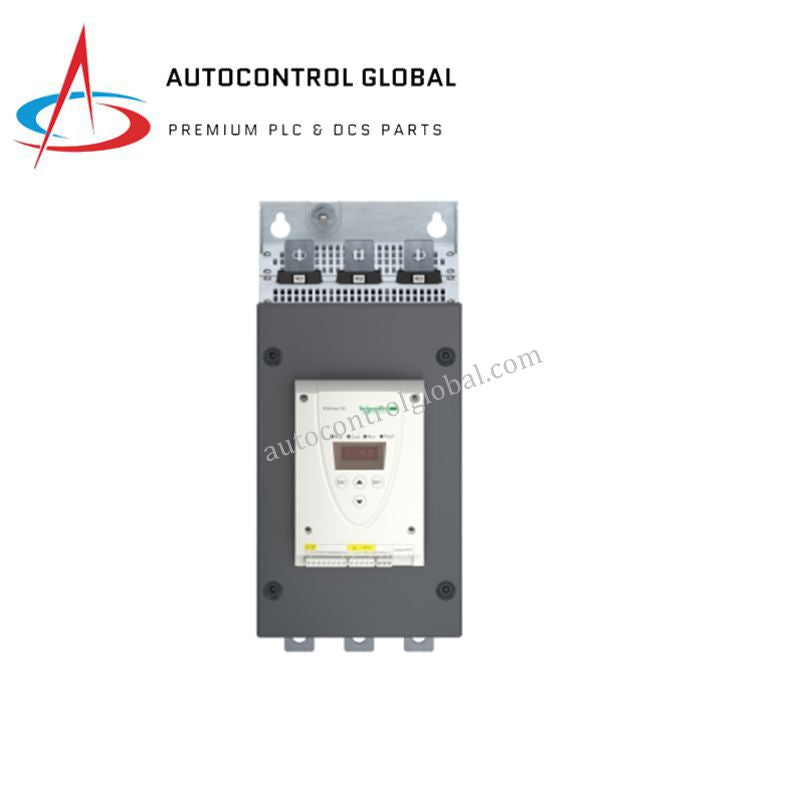

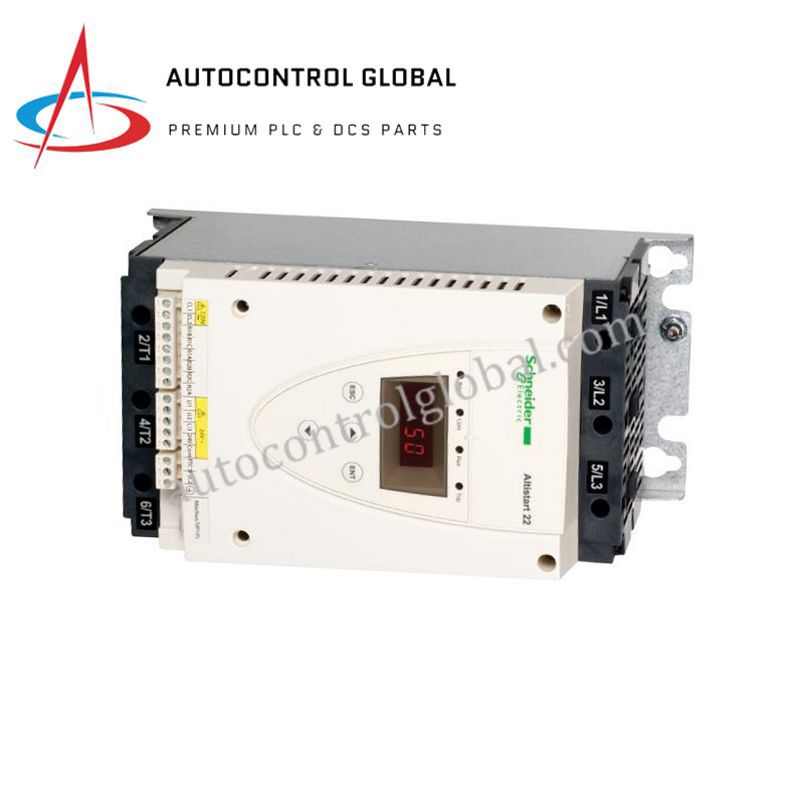

The Schneider Electric ATS22C41Q is a high-performance soft starter designed for 3‑phase asynchronous motors. It provides controlled motor starting and stopping by minimizing inrush current and mechanical stress. Moreover, its compact design and integrated bypass allow efficient operation and reduced heat dissipation. This soft starter is ideal for industrial automation systems, including pumps, fans, conveyors, compressors, and other machinery where smooth acceleration and motor protection are critical.

Technical Specifications

General Parameters

• Model: ATS22C41Q

• Brand: Schneider Electric

• Series: Altistart 22 (ATS22)

• Product Type: Soft Starter for 3‑phase asynchronous motors

• Motor Power: Up to 110 kW (150 hp) at 400 V

• Rated Current (In): 410 A

• Operating Voltage: 230–440 V AC, 3‑phase

• Control Voltage: 110–230 V AC

• Frequency: 50/60 Hz

• Integrated Bypass: Yes

• Protection: Overload, short-circuit, phase loss, overheating, under-voltage

• Communication: Modbus (RS485)

• Mounting: Panel mounting

• Dimensions (H × W × D):550 × 310 × 260 mm

• Weight: 400g

• Compliance: IEC, UL, CSA, CE

• Warranty: Standard Schneider Electric warranty

FAQ

Q1: What is the maximum motor power supported by ATS22C41Q?
A1: It supports motors up to 110 kW at 400 V.

Q2: Which voltages can this soft starter operate on?
A2: It operates on 230–440 V AC, 3‑phase, with control voltage 110–230 V AC.

Q3: Does ATS22C41Q include protection features?
A3: Yes, it protects against overload, short-circuit, phase loss, overheating, and under-voltage.

Q4: Can it integrate into automation systems?
A4: Yes, it is compatible with Modbus (RS485) for integration.

Q5: Is the product discontinued?
A5: It will be end-of-service on June 29, 2035; replacement models like ATS430C41S6 are recommended.
