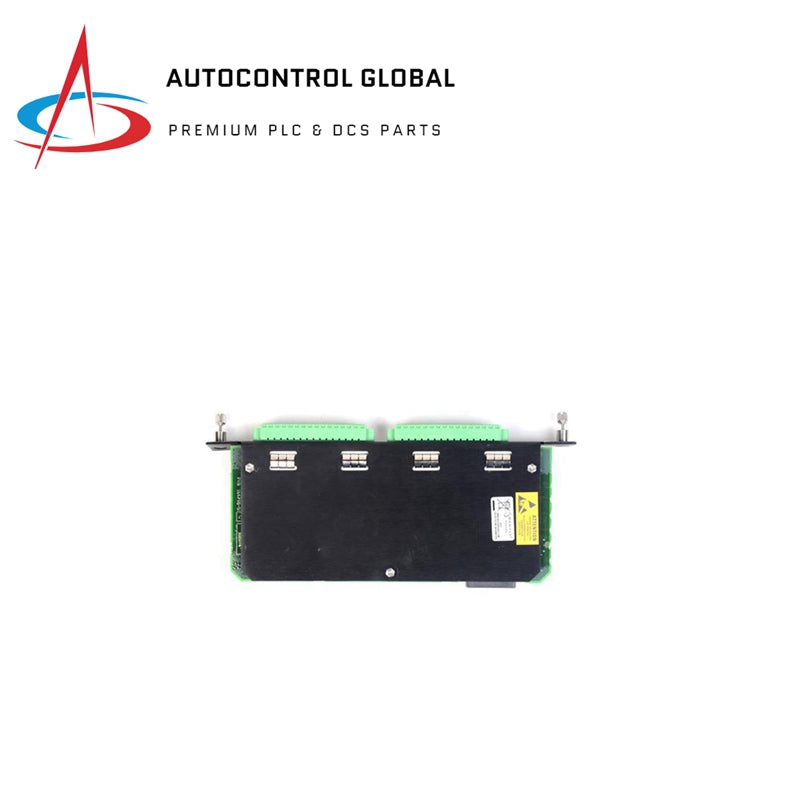

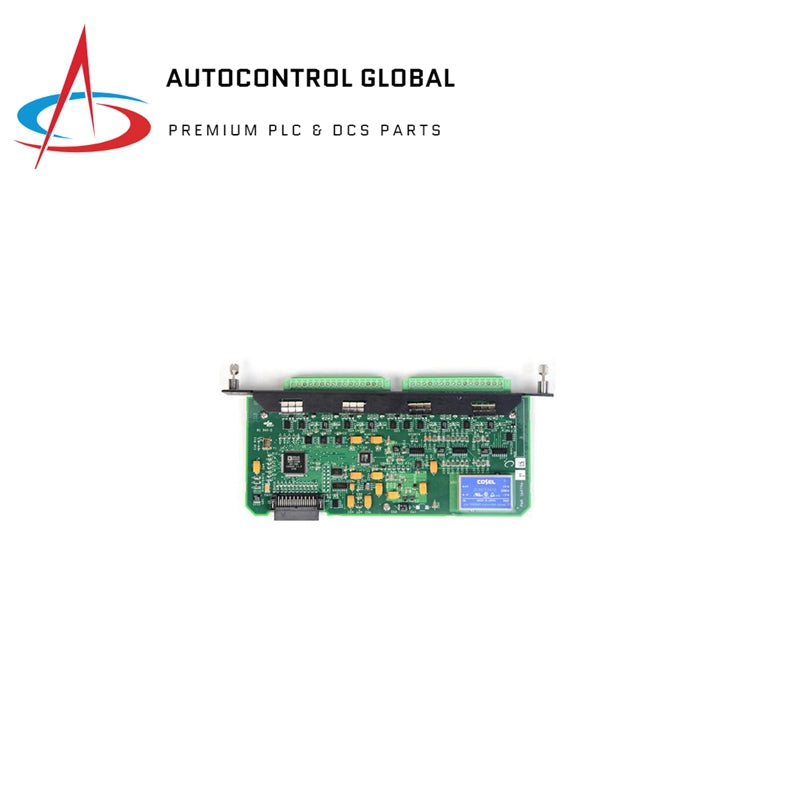

Bently Nevada 164746-01 Seismic Direct Input Card

Description

The 164746-01 Bently Nevada Seismic Direct Input Card is part of the 149744 Trendmaster Dynamic Scanning Modules series. It offers high bandwidth inputs, high resolution sampling, and synchronous or asynchronous processing. This card will still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).

Features

• Up to 24 kHz High Bandwidth Inputs
• Synchronous and Asynchronous Processing
• Up to 150 DSMs Per Single Data Acquisition Computer
• Up to 16-Bit High Resolution Sampling

Specifications

• A/D Resolution: 16 bits
• Bias Current Supply: 3.3 mA
• Transducer Type: 2-Wire Current Mode Sensors
• Transducer Power Supply Voltage: +24 ± 5% Vdc
• Sensitivity: 100 mV/V
• Frequency Response: 0.1 Hz to 100 kHz
• Dynamic Range: 160 dB
• Impedance: 50 ohms
• Weight: 0.5 kg
