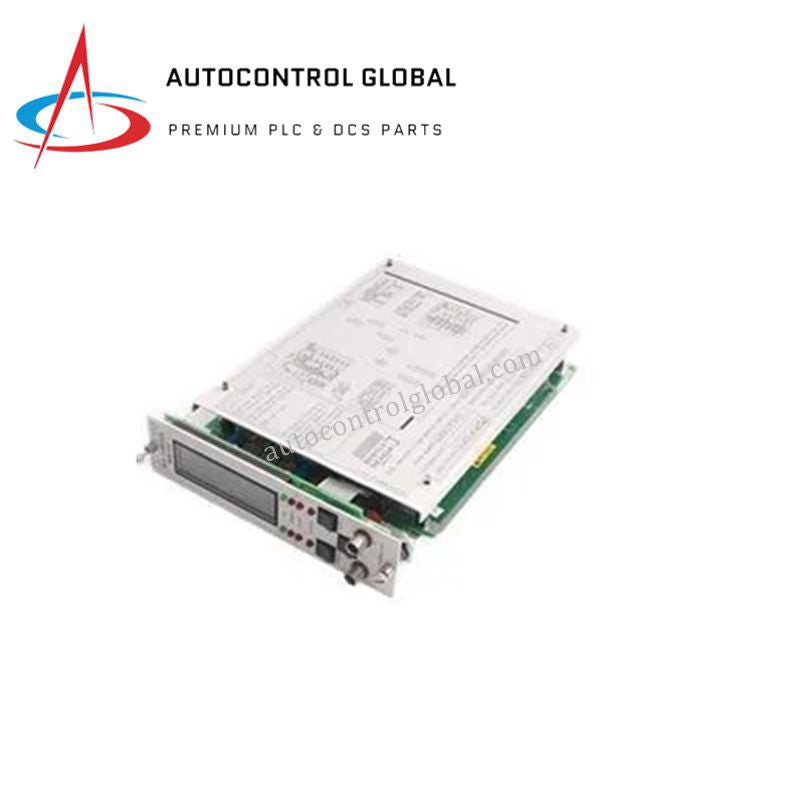

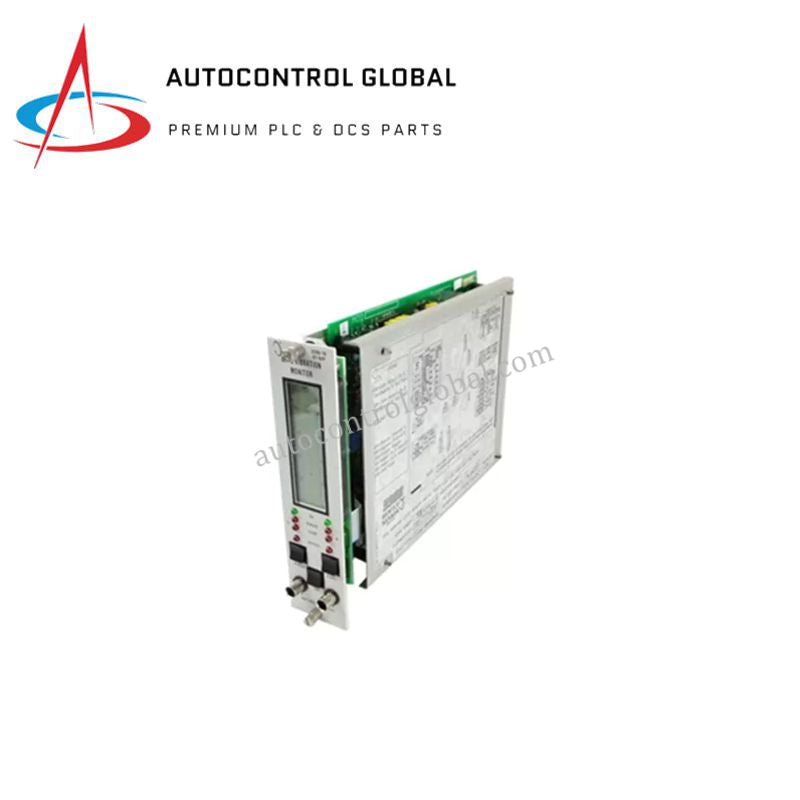

Bently Nevada 3300/16-12-01-01-00-00-00 | Dual Vibration Monitor

  • Manufacturer: Bently Nevada

  • Part Number: 3300/16-12-01-01-00-00-00 145323-01

  • Condition:New with Original Package

  • Product Type: Dual Vibration Monitor

  • Country of Origin: USA

  • Payment:T/T, Western Union

  • Shipping port: Xiamen

  • Warranty: 12 months

Product Overview

The Bently Nevada 3300/16-12-01-01-00-00-00 / 145323-01 is a dual-channel XY/Gap vibration monitor designed for real-time protection of rotating machinery. It continuously measures radial vibration and average shaft position (gap) across two independent channels.

Compatible with 3300 and 3300 XL 8 mm probes as well as 7200 5 mm and 8 mm sensors, it provides alarm and trip logic for machinery faults. This module enhances machinery health monitoring compared to older 3300/15 monitors by adding radial position gap alarm capability.

Technical Specifications

Specification Details
Brand Bently Nevada
Model 3300/16-12-01-01-00-00-00
Part Number 145323-01
Function Dual-channel radial vibration and shaft position (gap) monitor
Input Type Proximity probes / Proximitor® sensors (200 mV/mil sensitivity)
Compatible Sensors 3300 8 mm, 3300 XL 8 mm, 7200 5 mm & 8 mm
Measurement Range 0–100 µm peak-to-peak
Relay Outputs Epoxy-sealed relays for alarm and trip logic
Alarm Capability Radial vibration and gap alarms
Mounting Rack-mounted in 3300 Series chassis
Operating Temperature –30°C to +65°C
Dimensions 19.8 × 16.2 × 10.8 cm
Weight 1200 g
Certifications CE certified; intrinsic safety not included; external barriers optional
Applications Turbines, compressors, motors, and other rotating machinery

FAQ

Q1: What does the 3300/16 monitor measure?
A1: It measures radial vibration and shaft gap position across two independent channels.

Q2: Which sensors are compatible with this module?
A2: It supports 3300 8 mm, 3300 XL 8 mm, and 7200 5/8 mm probes.

Q3: Can it be installed in industrial environments?
A3: Yes, it is CE certified and built for harsh industrial conditions.

Q4: How is it mounted?
A4: It is rack-mounted in a 3300 Series chassis.

Q5: What is the sensitivity of the input?
A5: The module provides 200 mV/mil sensitivity for accurate displacement monitoring.
